There are two methods of Tilt Offset, two pole tilt intersection and three pole tilt intersection.

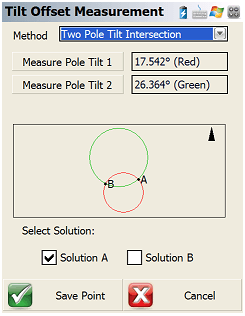

Two pole tilt intersection

Make sure the bottom of the pole is at the same point.

Measure Pole Tilt 1:

Tilt the pole in one direction and Click this bottom to store the first tilt angle (Red Circle)

Measure Pole Tilt 2:

Tilt the pole in the other direction and Click this bottom to store the first tilt angle (Green Circle)

There will be two intersecting points, choose Solution A or Solution B for the desired intersecting point, and click Save Point to Store it.

About the selection of A or B, we can draw a intersection draft according to the real tilt movement of the pole and decide which point is the real intersection point.

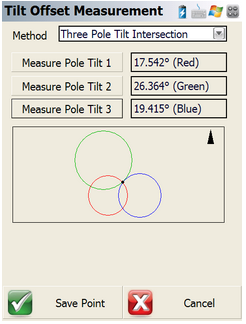

Three pole tilt intersetion

Make sure the bottom of the pole is at the same point.

Measure Pole Tilt 1:

Tilt the pole in one direction and Click this bottom to store the first tilt angle (Red Circle)

Measure Pole Tilt 2:

Tilt the pole in another direction and Click this bottom to store the first tilt angle (Green Circle)

Measure Pole Tilt 3:

Tilt the pole in the last direction and Click this bottom to store the first tilt angle (BlueCircle)

There will be only one intersecting point, click Save Point to Store it

In this case, three circurs are intersected in one point, which is the point we need to survey.
