Features
Specification
Highly productive with powerful features

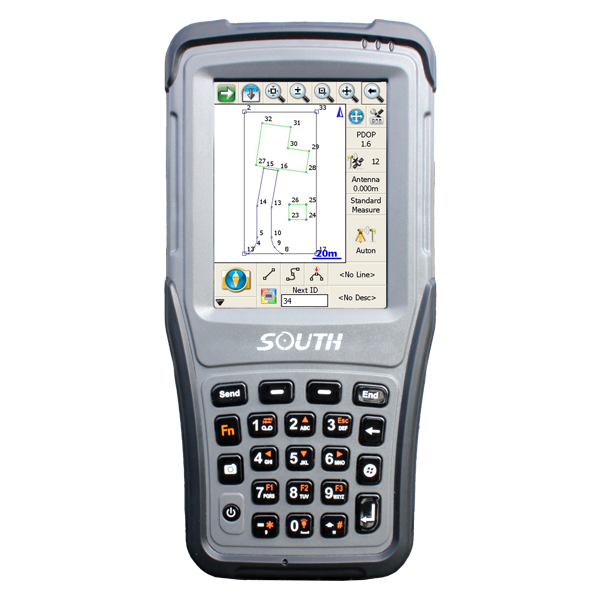

The SOUTH X11 comes with Windows Embedded Handheld 6.5, 1 GHz processor and advanced manufacturing process, which can drive any filed software with easy and provide customers with a wider range of uses and application.
Flexible communication and data handling
Stay connected with a wide range of communication and data storage options. With fully integrated wireless technology (Bluetooth, GSM/UMTS 3.5G, WiFi), a choice of two connector modules and data storage using an SD card or external memory stick, The SOUTH X11 are ready for all challenges on site and in the office.
Built to survive
With rugged and reliable design, in addition to IP67 certification, which can protect it well during work in any harsh environment. SOUTH X11 is independently certified to MIL-STD 810G standards including drop from 1.5m and can operate in temperatures from -30℃ to 60℃.
Advanced GIS application
The SOUTH X11 is built with an integrated powerful 72 channels GNSS chip (GPS,GLONASS,BEIDOU,SBAS,QZSS), which can also process RTCM2.3 data from CORS. These features open the door to countless application possibilities, making it ideal for GIS surveying and other GPS/mapping-based applications.
System | Operating system |
Windows Mobile 6.5 |
CPU |
TI Sitaratm AM335 1 GHz |
|
Memory |
512MB RAM, 8GB ROM |
|
Storage |
Supports SD up to 32GB |
|
GNSS | Channels | 72 |
GPS |
L1 C/A code |
|
GLONASS |
L1OF |
|
GALILEO |
E1 B/C |
|
SBAS |
L1 C/A code |
|
A-GPS | - | |
Multimedia | Diplay & Resolution |
3.7 inch 480 x 680 VGA |
Camera |
5.0 Megapixel AF |
|
Audio |
Integrated speakers, microphone, telephone handset |
|
Integrated sensors | - | |
Communications | USB |
Mini USB |
Serial port |
DB9 |
|
Bluetooth |
2.1 + EDR |
|
NFC | - | |
Network |
WCDMA 3G |
|
WiFi |
802.11 b/g/n |
|
Electrical | Battery |
7.2V, Removable Li-lon 3400mAh |
Battery life |
Up to 10 hours |
|
Charging | - | |
Environment | Waterproof/Dustproof |
IP67 |
Shockproof |
Withstands 1.5m free drop onto hard surface |
|
Operating Temperature |
-30℃ ~ 60℃ |
|
Storage Temperature |
-30℃ ~ 70℃ |
|
Physical | Dimension |
193mm(L) × 91mm(W) × 42mm(H) |
Weight | 600g | |
Keypad |
Digital soft keyboard charater input |
Note: all information above is subject to change without any prior notice.
