Galaxy G7

    Model: Galaxy G7

    Download:

    Galaxy G7 Brochure

    Features

    Galaxy G7 特征排版

    Specification

    GNSS Features Channels 336, 1760 (optional)
    GPS L1C/A, L1C, L2C, L2E, L5
    GLONASS L1C/A, L1P, L2C/A, L2P, L3
    BDS B1, B2, B3
    GALILEOS E1, E5A, E5B, E5AltBOC, E6
    SBAS L1C/A, L5 (Just for the satellites supporting L5)
    IRNSS L5
    QZSS L1C/A, L1 SAIF, L2C, L5, LEX
    MSS L-Band Trimble RTX[1]
    Positioning output rate 1Hz~50Hz
    Initialization time < 10s
    Initialization reliability >99.99%
    Positioning Precision Code differential GNSS positioning Horizontal: 0.25 m + 1 ppm RMS
    Vertical: 0.50 m + 1 ppm RMS
    GNSS static Horizontal: 2.5 mm + 0.5 ppm RMS
    Vertical: 5 mm + 0.5 ppm RMS
    Real-time kinematic
    (Baseline<30km)    		 Horizontal: 8 mm + 1 ppm RMS
    Vertical: 15 mm + 1 ppm RMS
    SLink (RTX)[2] Horizontal: 4-10 cm
    Vertical: 8-20 cm
    RTK XTRa (xFill)[3] Horizontal: 5 + 10 mm/min RMS
    Vertical: 5 + 20 mm/min RMS
    SBAS positioning Typically<5m 3DRMS
    RTK initialization time 2~8s
    IMU tilt compensation Additional horizontal pole tip uncertainty typically less than 8mm + 0.6 mm/° tilt down to 30°
    IMU tilt angle 0°~60°
    Hardware Performance Dimension 15.3cm(φ)×10.6cm(H)
    Weight 1.2kg (battery included)
    Material Magnesium aluminum alloy shell
    Operating temperature -25℃~+65℃
    Storage temperature -35℃~+80℃
    Humidity 100% Non-condensing
    Waterproof/Dustproof IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust
    Shock/Vibration Withstand 2 meters pole drop onto the cement ground naturally
    Power consumption 2W
    Power supply 6-28V DC, overvoltage protection
    Battery 7.4 V 3400mAh rechargeable,
    removable Lithium-ion battery
    Battery life Single battery: 16h (static mode)
    10h (internal UHF base mode)
    12h (rover mode)

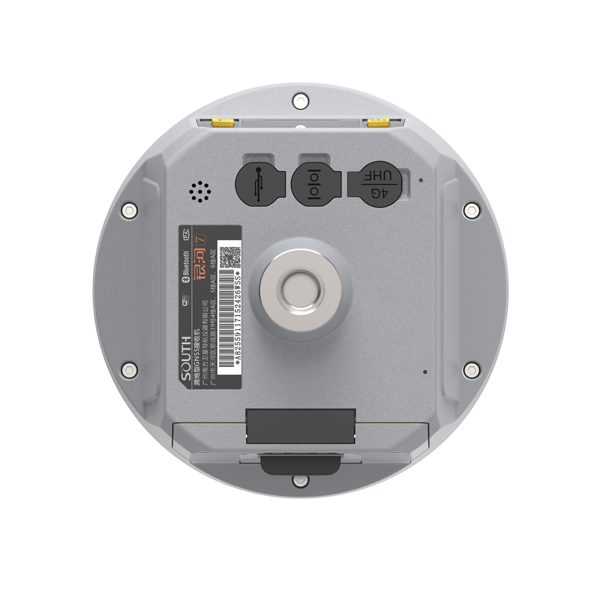

    Communications I/O Port 5PIN LEMO external power port + Rs232
    7PIN LEMO +external USB(OTG)+Ethernet
    1 UHF antenna interface
    1 GPRS antenna interface (internal and external antenna switchable)
    SIM card slot (standard)
    Internal UHF Radio receiver and transmitter,
    1W/2W/3W switchable
    Frequency range 410-470MHz
    Communication protocol Farlink, Trimtalk450s, SOUTH, SOUTH+,SOUTHx, HUACE, Hi-target, Satel
    Communication range Typically 15km with Farlink protocol
    Cellular mobile network Advanced 5G network communication module, downward compatible with 4G/3G
    Bluetooth BLEBluetooth 4.0 standard, Bluetooth 2.1+EDR
    NFC Communication Realizing close range (shorter than 10cm) automatic pair between receiver and controller(controller requires NFC wireless communication module else)
    WIFI Modem 802.11 b/g standard
    WIFI hotspot Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
    WIFI datalink Receiver can transmit and receive correction data stream via WiFi datalink
    Data Storage/Transmission Storage 64GB SSD internal storage
    Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
    Support external USB storage
    The customizable sample interval is up to 50Hz
    Data transmission Plug and play mode of USB data transmission
    Supports FTP/HTTP data download
    Data format Differential data format: CMR+, sCMRx, RTCM 2.1,RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
    GPS output data format: NMEA 0183, PJK plane coordinate, Binary code, Trimble GSOF
    Network model support: VRS, FKP, MAC, fully support NTRIP protocol
    Sensors Electronic bubble Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
    IMU Built-in IMU module, calibration-free and immue to magnetic interference
    Thermometer Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
    User Interaction Operating system Linux
    Buttons 2-button and visual operation interface
    Indicators 2 LED indicators, data interaction indicator and Bluetooth indicator
    LCD 1.54-inch HD color LCD touch screen with resolution 240*240
    Web interaction With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
    Voice guidance The intelligent voice technology provides status and operation voice guidance, supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
    Secondary development Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition
    Cloud service The powerful cloud platform provides online services like remote manage, firmware update, online register and etc

    [1] It requires a subscription to data service. [2] The RTX accuracies depend on correction service chosen. And 95% of the time with initializations are around 5-30 minutes. [3] RTK XTRa also requires a subscription to the data service, and precision is dependent on GNSS satellite availability. RTK XTRa positioning ends after 5 minutes of radio downtime.
