G9 (Spt)

    Model: G9 (Spt)

    Download:

    G9 (Spt) Brochure

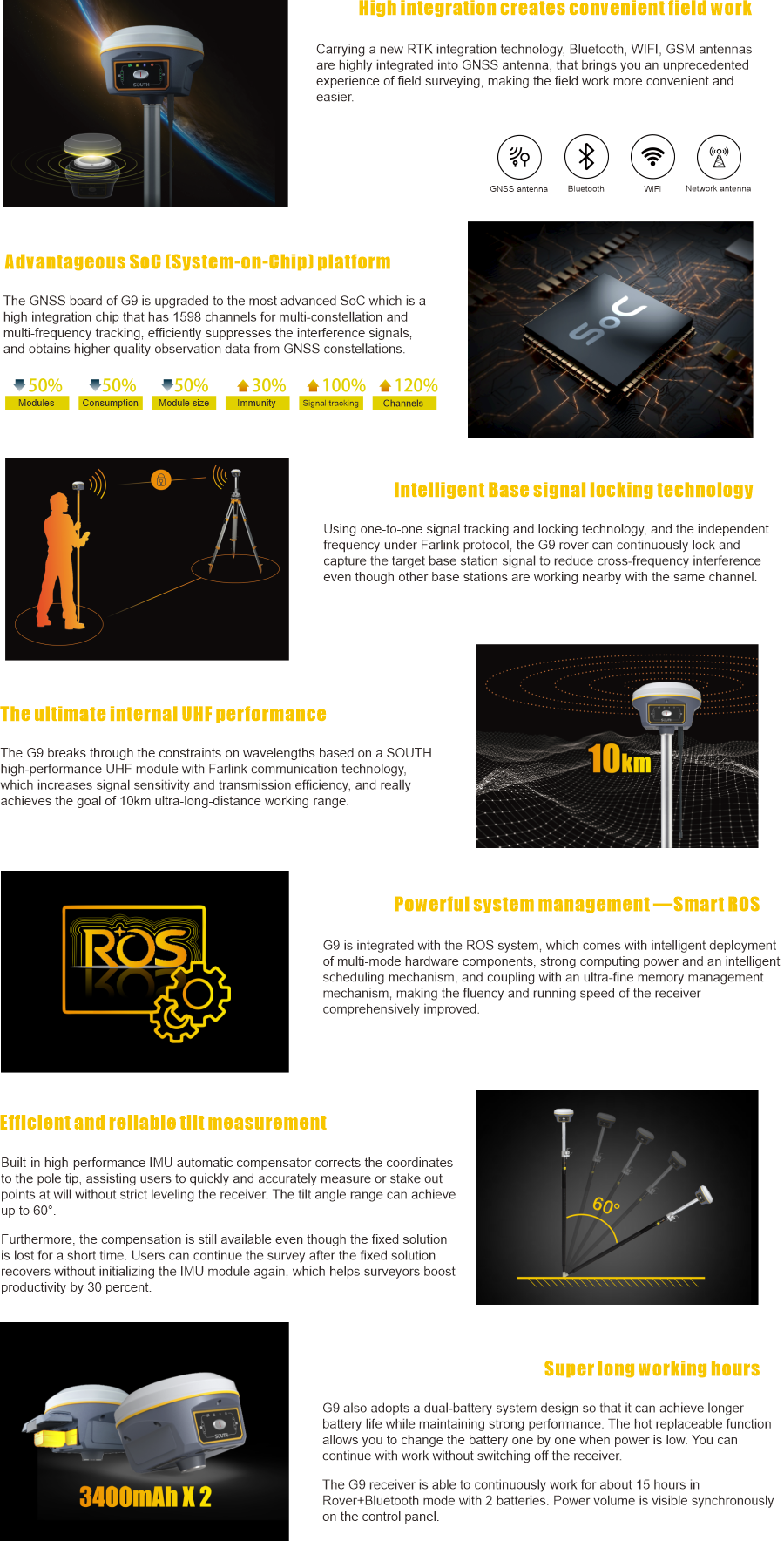

    Features

    G9 web

    Specification


    GNSS Features    		 Channels 1760
    GPS L1C/A, L1C, L2C, L2P, L5
    GLONASS L1C/A, L2C/A, L2P, L3CDMA
    BDS B1I, B1C, B2I, B2a, B3
    GALILEO E1, E5A, E5B, E5AltBOC, E6[1]
    SBAS EGNOS, WAAS, GAGAN, MSAS, SDCM(L1,L5)
    QZSS L1C/A, L1C, L2C, L5, L6
    Navic L5
    On module L-Band Reserve
    Positioning output rate 1Hz~50Hz
    Initialization time < 10s
    Initialization reliability > 99.9%
    Positioning Precision* Real-time kinematic (Baseline<40km) Horizontal: 6 mm + 0.5 ppm RMS
    Vertical: 10 mm + 1 ppm RMS
    GNSS static Horizontal: 2.5 mm + 0.5 ppm RMS
    Vertical: 5 mm + 0.5 ppm RMS
    Standalone Horizontal: 1.2m Vertical: 1.9m RMS
    DGNSS Horizontal: 0.4m Vertical: 0.7m RMS
    SBAS positioning Horizontal: 0.6m Vertical: 0.8m RMS
    RTK initialization time 2 ~ 8s
    IMU tilt compensation Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30°
    IMU tilt angle 0° ~ 60°
    Hardware Performance Dimension 154mm(φ)× 106mm(H) Thermometer
    Weight 1.3kg (battery included)
    Material Magnesium aluminum alloy shell
    Operating temperature -45℃ ~ +65℃
    Storage temperature -45℃ ~ +85℃
    Humidity 100% Non-condensing
    Waterproof/Dustproof IP68 standard, protected from long time immersion to depth of 1m
    IP68 standard, fully protected against blowing dust
    Shock/Vibration Withstand 2 meters pole drop onto the cement ground naturally
    Power consumption 2W
    Power supply 6-28V DC, overvoltage protection
    Battery 7.4V 3400mAh x 2 rechargeable, removable Li-ion battery
    Battery life(Dual-battery) 15h(Rover Bluetooth mode)
    Communications I/O Port 5-PIN LEMO external power port + RS232
    7-PIN LEMO(USB, OTG and Ethernet)
    1 PPS data interface
    SIM card slot(standard)
    Internal UHF Receiver and transmitter 1/2/3W (Just receiver 0.01W for Russia)
    Frequency range 410 - 470MHz
    Communication protocol Farlink, Trimtalk450s, SOUTH, HUACE, ZHD
    Communication range Typically 10km with Farlink protocol
    Cellular mobile network 4G network communication module
    Bluetooth BLEBluetooth 4.0 standard, Bluetooth 2.1 + EDR
    NFC Communication Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
    WIFI Modem 802.11 b/g standard
    WIFI hotspot AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
    WIFI datalink Client mode, Receiver can transmit and receive correction data stream via WiFi datalink
    Data Storage/Transmission Storage 16GB SSD
    Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
    Support external USB storage
    Data transmission Plug and play mode of USB data transmission
    Supports FTP/HTTP data download
    Data format Static data format: STH, Rinex2.01, Rinex3.02, etc.
    Differential format: CMR, RTCM 2.x, RTCM 3.x(MSM included)
    Navigation data format: NMEA 0183, PJK, Binary code
    Network model support: VRS, FKP, MAC, fully support NTRIP protocol
    Sensors Electronic bubble Controller software can display electronic bubble, checking leveling status of the
    carbon pole in real-time
    IMU Built-in IMU module, calibration-free and immune to magnetic interference
    Thermometer Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
    User Interaction Operating system Linux
    Buttons Single button
    Indicators 4 color LED indicators, Battery indicator
    Web interaction With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
    Voice guidance It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
    Secondary development Provides secondary development kit, and opens the OpenSIC observation
    data format and interaction interface definition
    Cloud service The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.

    [1] Hardware is ready Items marked with * will be upgraded with the update of the firmware version The data comes from the SOUTH GNSS product laboratory, and the specific situation is subject to local actual usage. The measurement accuracy, precision and reliability are associated to various factors, including number of satellite tracking, observation time, multi-path, etc.
