FMOS

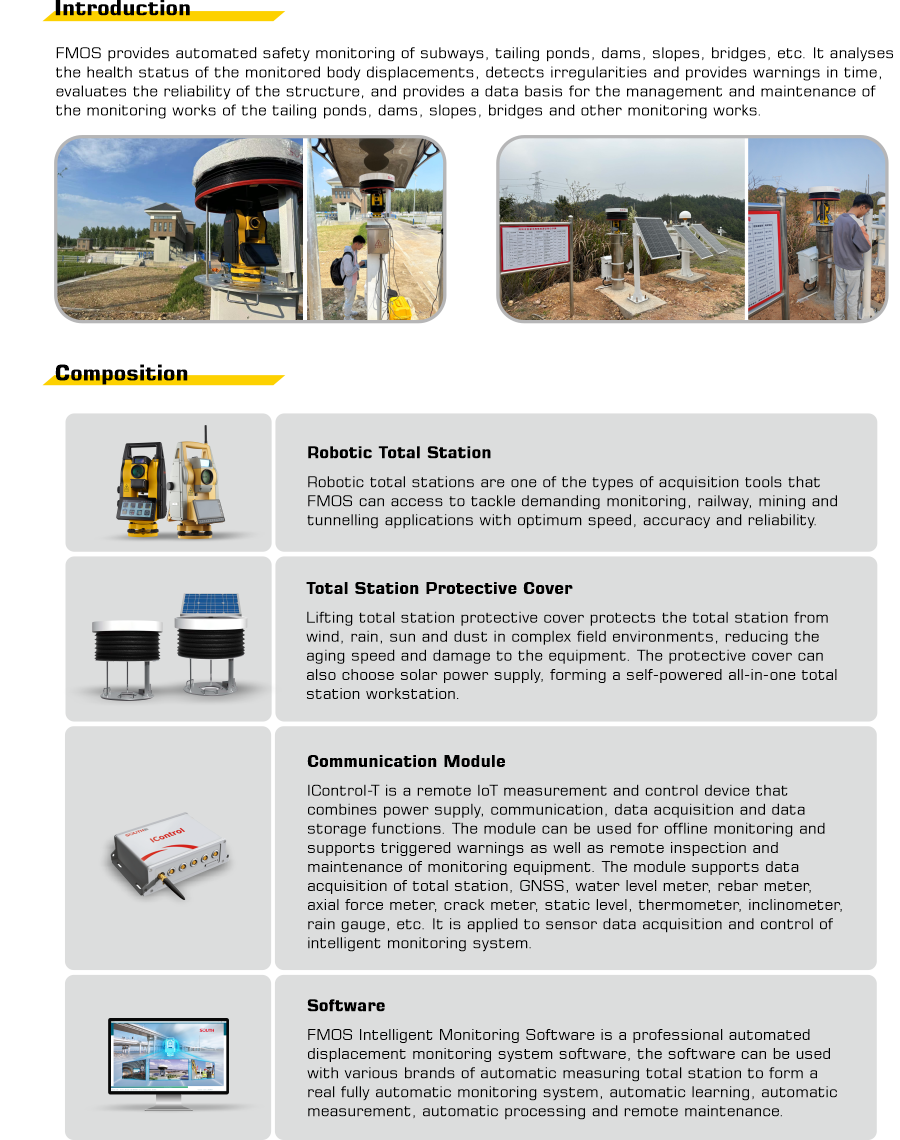

    • Remote control, 24x7 operation • Modular combinations, flexible configurations, and high scalability • Intelligent Error Analysis and Early Warning • Automatically generate data reports to improve efficiency • Supports cloud deployment, data sharing and assisted decision making

Model: FMOS

Download:

FMOS Brochure

Features

web

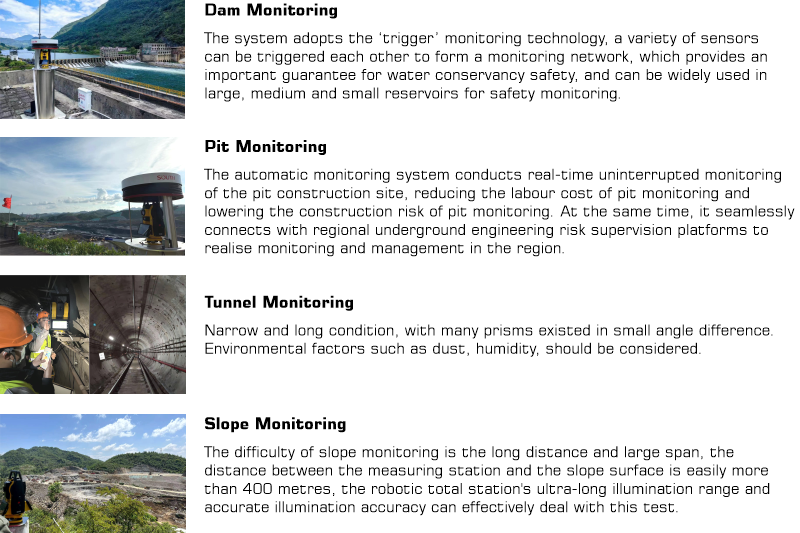

Applications

web2

Specification

Robotic total station Accuracy Angle: 0.5″/1″
Distance: 1+1ppm
Operate System
Android 9.0, 32+3GRAM, Qua, Quad Core CPU
Image 5 Megapixel wide angle camera
Completely free for target aiming
Display Unit 6.0 inch, full color, touch screen
Protective cover Voltage DC12V
Communication RS485
Temperature and humidity -25-75℃&<90%RH
External dimensions Φ530mm*588mm
Rated power 6W
Protection level IP54
Weight 12kg
Packing size 535mm*535mm*200mm
Communication module I-control Communication 2G/3G/4G, IoT card
Voltage DC12V-15V
Environment -25℃-75℃
Storage temperature -40℃-85℃
Port Rs232 Quick connection socket, supporting the baud rate 1200, 2400, 4800, 9600,19200, 38400, 57600, 115200 (BPS) (9600 is the default baud rate)
Port RS485 Quick connection socket with 9600 baud rate (bps)
External dimensions 160mm*106mm*48mm
FMOS The software can control the instrument for bubble inspection, indicate laser switching, instrument rotation control, station setting, orientation and other operations

Note: all information above is subject to change without any prior notice.
