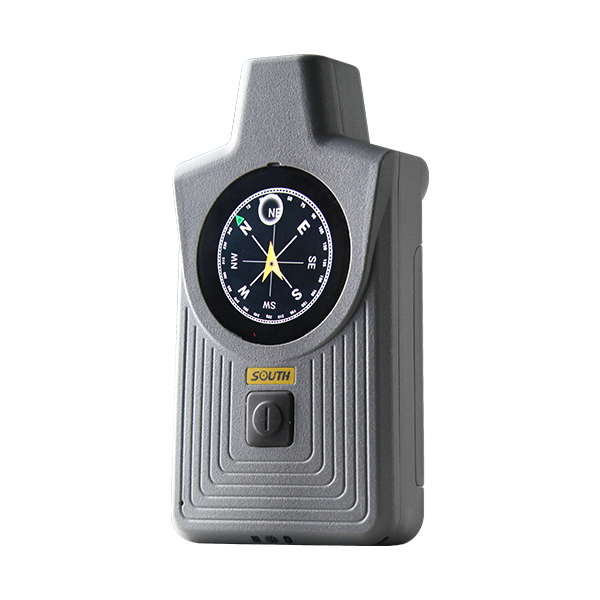

Compass 2

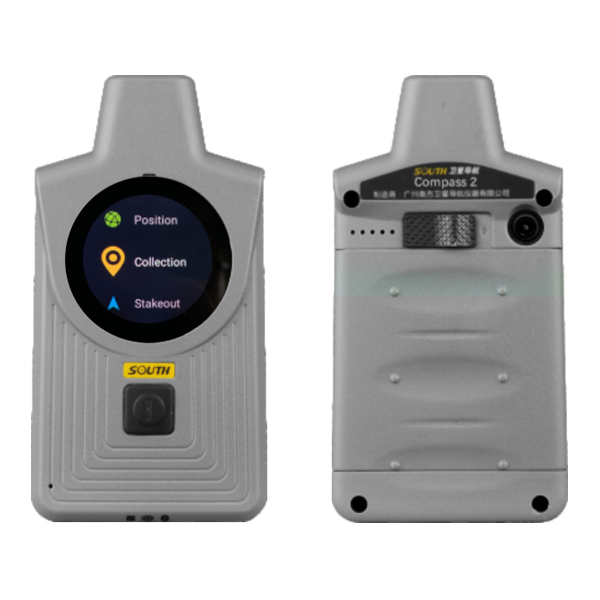

    The Compass 2 is a new portable GNSS receiver with a delicate design, embedded with Android system. Packaged with a 1.4-inch touch screen, it is convenient to get satellites information, GIS collection, stakeout, etc. Taking photos, recording videos and video calling are possible thanks to the built-in camera and 4G network module.

Model: Compass 2

Download:

Compass 2 Brochure

Features

● High precision positioning, support GPS, GLONASS, BD satellites, built-in satellite antenna, with multi - path rejection technology and anti - interference technology.

● 1.5 GHz processor and 3 GB RAM provide powerful performance. Integrated 32 GB ROM ensure your massive data  storage.

● Easy to connect with PAD and phone via Bluetooth, compatible with Android, IOS, Windows Mobile device.

● Rugged design, with IP67 waterproof and dustproof, 1.5m drop proof.

● Two replaceable batteries, making it possible to last up to 10 hours.

● Advanced 4G network module, providing high speed real-time position and GIS transmission service.


Compass 2d


Specification

System Operating system Android 5.1
CPU A53 (Octa-Core, 1.5GHz)
Memory 3GB RAM, 32GB ROM
Storage -
GNSS performance Channels 72
GPS L1
GLONASS L1
BDS B1
GALILEO -
SBAS -
QZSS -
Data output NMEA-0183
I/O protocol RTD
Update rate 1Hz
Reacquisition -
Warm start <1s
Cold start <30s
Accuracy Single positioning 5m
SBAS positioning 2 ~ 5m
DGNSS 1 ~ 3m
RTK(baseline<30km) -
Multimedia Camera AF 8MP
Display 1.4 inch (400 × 400)
Sensor Gravity sensor, e-bubble
Other function NFC
Extended function(optional) -
Communication network 4G
Bluetooth Bluetooth v2.1 + EDR/ v4.0
WIFI 802.11b/g
USB Micro-USB, support OTG
Electrical Battery 3.8V 4800mAh
Battery life 8 hours (Bluetooth)/ 5 hours (network)
Battery charging -
Environment Waterproof/Dustproof IP67
Shockproof 1.5m
Humidity up to 95% noncondensing
Operating temperature -20℃ ~ 60℃
Storage temperature -40℃ ~ 80℃
Physical Dimension 126mm(L) × 66mm(W) × 27.5mm(H)
Weight 210g

Note: all information above is subject to change without any prior notice.
