Model: S660N
Features
Specification
GNSS performance | Channels | 336, 692 (optional) |
GPS | L1, L2C, L2P, L5 | |
GLONASS | L1, L2, L3 | |
BDS | B1, B2, B3 (Optional) | |
GALILEO | E1, E5A, E5B, E5AltBOC | |
SBAS |
L1 C/A, L5 QZSS, WAAS, MSAS, EGNOS, GAGAN |
|
L-Band | Trimble RTX | |
Positioning output rate | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz (optional) | |
Initialization time | <8 seconds | |
Initialization reliability | >99.9% | |
Positioning precision | Static surveying | Horizontal:0.0025m+1ppm; Vertical:0.005m+1ppm |
Code differential positioning | Horizontal:0.25m+1ppm; Vertical:0.50m+1ppm | |
Real-time kinematic surveying | Horizontal:0.0025m+1ppm; Vertical:0.005m+1ppm | |
RTX | Horizontal:<0.1m (20-30min); Vertical:<0.2m (20-30min) | |
SBAS positioning | -- | |
xFill | ||
IMU tilt angle | ||
Single positioning | Horizontal:<1.0m; Vertical:<1.5m | |
User interaction | Operaing system | Linux |
Buttons | Single button operation | |
LCD | -- | |

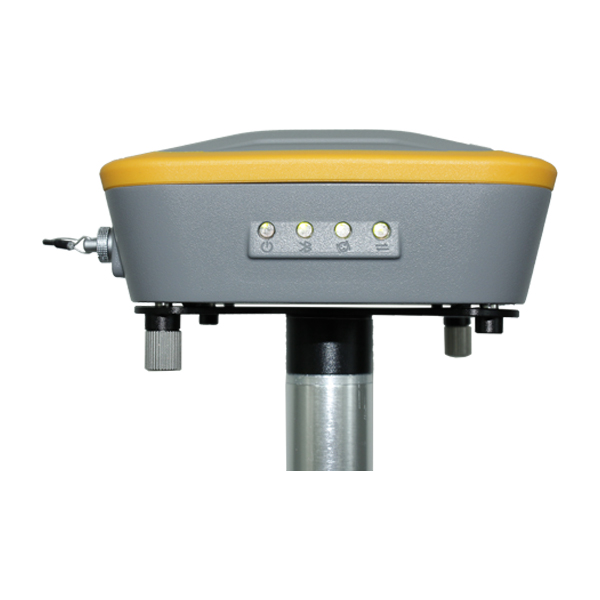

Indicators | 4 indicate lights | |
Web UI | Freely to configure and monitor the receiver by accessing to the web server via WiFi and USB | |
Voice guide | -- | |
Secondary development | -- | |
Data cloud service | -- | |

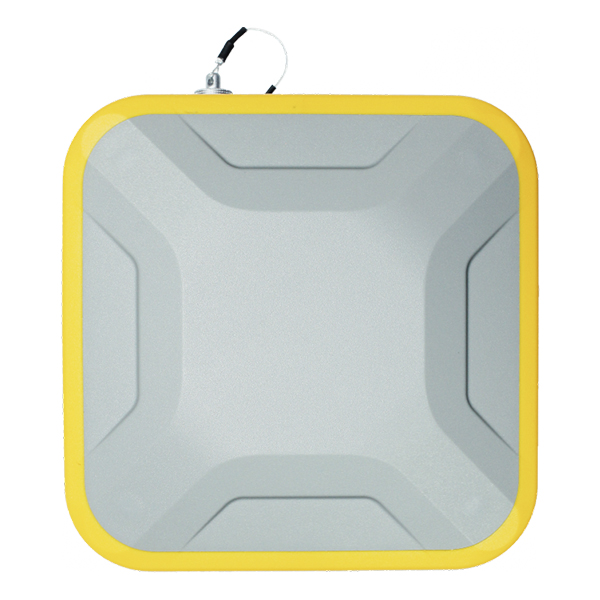

Hardware performance | Dimension | 115mm (L) × 115mm (W) × 40mm (H) |
Weight | 540g (Internal battery included) | |
Material | Magnesium aluminum alloy shell | |
Operating temperature | -30℃ ~ +65℃ | |
Storag temperature | -30℃ ~ +65℃ | |
Humidity | 5% ~ 95% R.H. non-condensing | |
Waterproof/Dustproof | Test to IP67 standard | |
Shock and vibration | Withstand drop from 1.5m to concrete | |
Power Supply | -- | |
Battery | 6800mAh, Li-ion battery built in, 3.7V | |
Battery solution | -- | |
Battery life | Typically 8 hrs or more | |

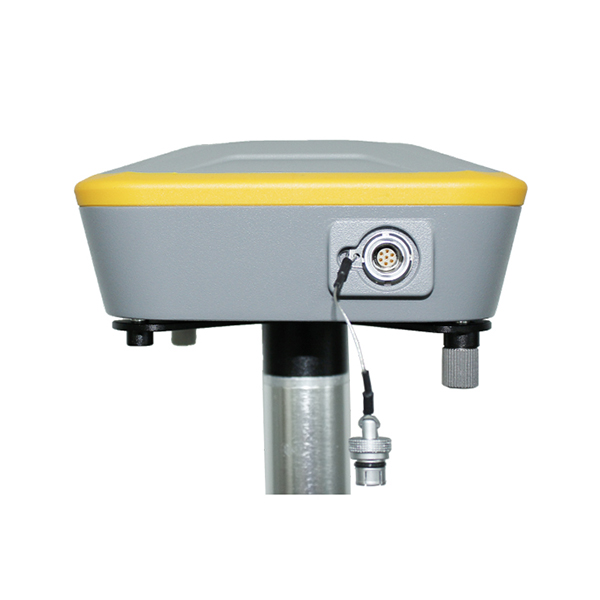

Communications | I/O port | LEMO port (Enable to switch to Ethernet port and OTG function) |
Wireless modem | -- | |
Frequency Range | -- | |
Communication Protocol | -- | |
Cellular Mobile Network | -- | |
Double Module Bluetooth | Bluetooth V2.1/ Bluetooth V4.0, support EDR | |
NFC Communication | -- | |
External Devices | -- | |
WIFI | Standard | 802.11 b/g standard |
WIFI Hotspot | The WIFI hotspot allows any mobile terminal to connect and access to the internal webserver for the control and moditor receiver | |
WIFI data link | To work as the datalink that receiver is able to broadcast and receive differential data via WIFI | |
Data storage/ Transmission | Data Storage | 8GB SSD (Solid State Disk) internal memory, 1Hz, 2Hz, 5Hz,10Hz, 20Hz sampling rate |
Data Transmission | -- | |
Data Format |
Static data format: STH, Rinex2.x and Rinex3.x Reference I/O:CMR, CMR+, sCMRx, RTCM 2.x, RTCM 3.0, RTCM 3.1, RTCM 3.2 Standard NMEA-0183: GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS; Extended NMEA-0183: PSIC PST, GSI, BSI, VCV, TRA, SLB, EDP, TPI, TRI, VCM, STA, DEV, AAT, REC, DAL |
|
Inertial sensing system | Tilt survey | -- |
Electronic bubble | -- | |
Thermometer | -- |
Note: all information above is subject to change without any prior notice.
