Galaxy 1Plus, open '+' era of intelligent RTK

I believe in that you won’t be alone in this summer. Cause after a year of research, South brings you another advanced & top quality RTK product, Galaxy 1Plus which is as intelligent as Galaxy 6 and Galaxy 1. Moreover, we are also ready to launch a simplified Galaxy 1 without tilt sensor which named Galaxy 1S. I deeply believe in that the optional combinations Galaxy 1Plus + Galaxy 1S will make you feel more passionate in this summer. Let’s go to see what is ‘Plus’ and what the new functions it have.

1.Intelligent Linux platform

New generation of embedded Linux operating system platform improves RTK performance and work efficiency. Its operating efficiency is higher; a unique core processing mechanism which can respond to more than one command at one time; it starts faster and more responsive in real time. While the stability of system is much higher, it can be adapt to the job of longer uninterrupted power.

2.Wi-Fi communication

New Wi-Fi module, not only can be used as data link to access to internet, but also can be as a hotspot which can be accessed by any other smart devices to configure the receiver.

3.Web UI management platform

Embedded Web UI management platform supports WIFI and USB mode connection. Users can monitor the receiver status and configure it via the internal Web UI management platform.

4.Built-in GPRS antenna

Built-in GPRS antenna gets rid of traditional network RTK mode; it makes the field work much more convenient. It is more stable and simplified.

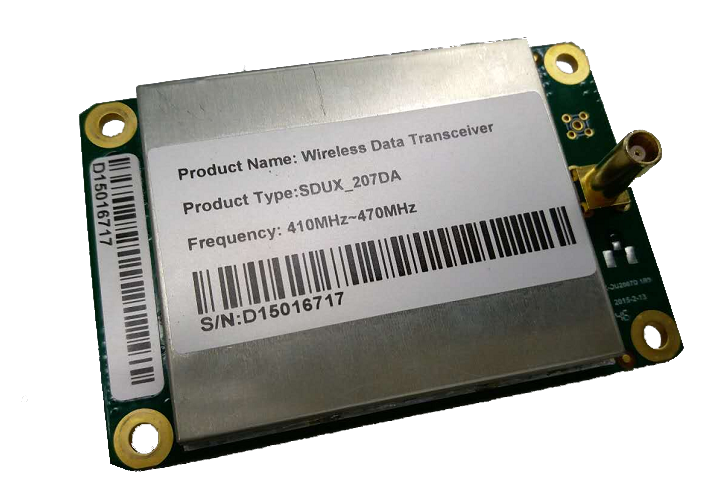

5.Built-in functional digital radio

SOUTH self-developed digital radio SDL400 which can fully support the communications with the mainstream radio protocols: Trimtalk450S, TrimMark3, PCC, EOT, and SOUTH. Realize the random switching of the radio range 410MHZ-470MHZ and the power level as well.

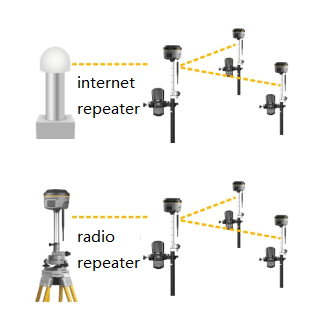

6.Radio Repeater function

This radio also can support radio repeater and internet repeater function, which mean it can receive the corrections from reference station then broadcast the corrections to the other users via radio or internet. It substantially extends the work range of radio.

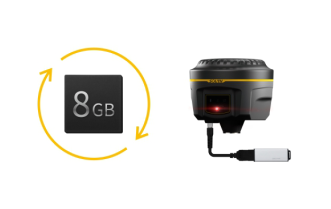

7.Data storage

Internal 8GB SSD and it supports external USB storage. Can directly store the RINEX data and the data can be downloaded to USB flash straightly. Supports automatic data storage cycle, the data will be automatically deleted when the space is not enough.

8.Power package

Long endurance: removable lithium batteries support long time base operation

Portable design: easy to carry or pack into the case

Battery capacity visible: reminds users to recharge the batteries on time before the field work.

Multi-function: supports various mobile devices charging
