CAMPUS TOPOGRAPHY BY UAV-BASED LIDAR SURVEY

Author: SouthDate: February 24, 2021View: 352

Z-Lab team undertook a topography surveying and mapping project, the project duration was tight and the output demands were high. All the outputs will be compared with the ultrasonic radar equipment developed by the client.


1


Job Description

Job Target: 1:500 topographic survey for data filing

Job Location: Chongqing, China

Job Time: Dec, 2020

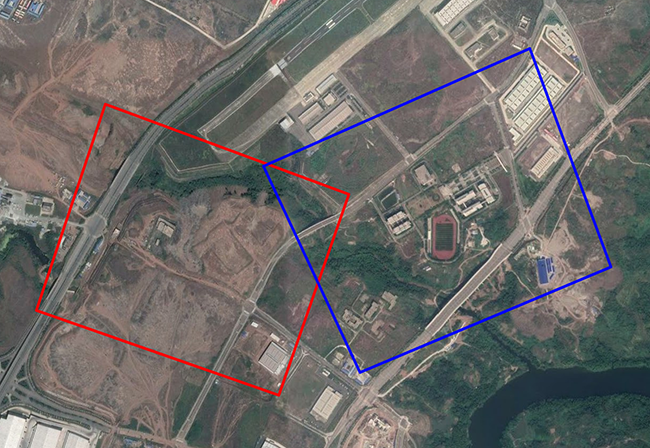

Area Size: 1.84 sq.km



Job Demand

Accuracy Expectation: elevation 10 cm

Output Demand: point cloud, DEM

Submission Time: 2 weeks

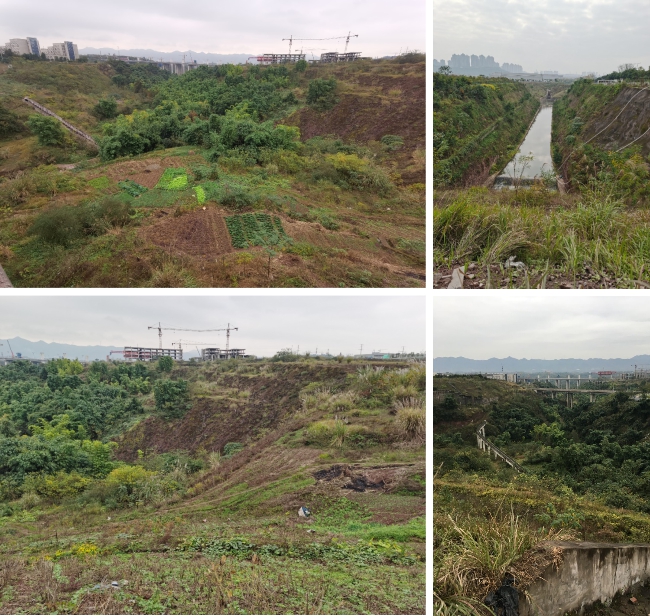

Challenge: ravine, tower crane


2-1



6


Field Work

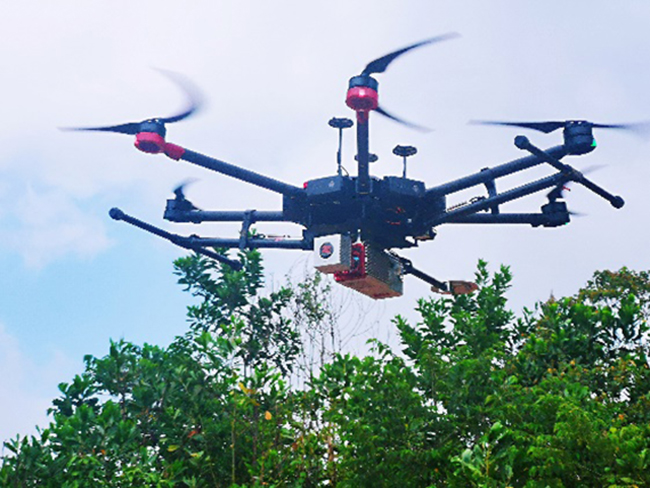

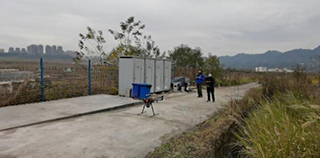

Survey Solution: Hexacopter Matrice600 Pro + SZT-R250

Number of Flight: 20 flights

Take-off Point: 5 spots

Flight Altitude: 20m - 80 m range

Strip Interval: 50 m

Data capture: 5 days (4 hours allowed to fly per day)


7

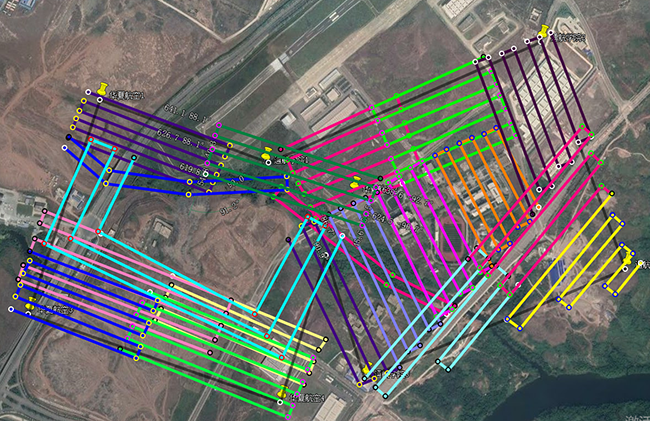

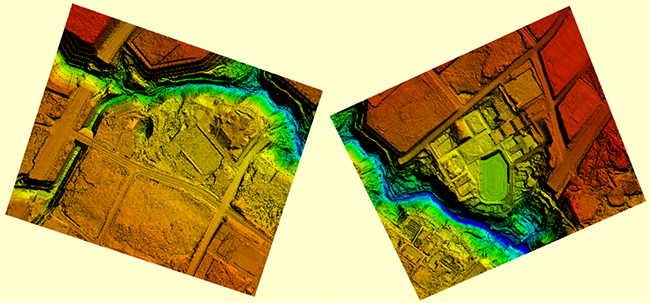

Flight Skyway Strips Display


8  9

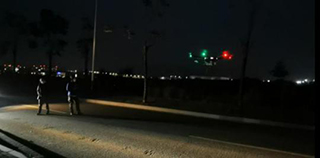

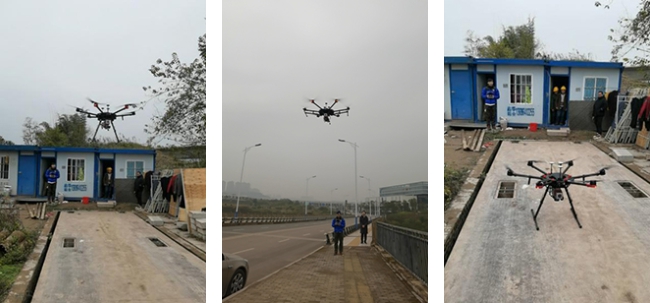

Flight mission in the day                                       Flight mission at night


10  11

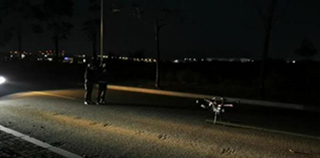

During the flight strips                                           Landing at night


12-1

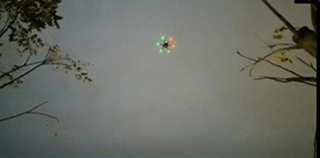

Take-off                                       Landing                                    Pre-flight


Office Work

Data Processing: 7 days

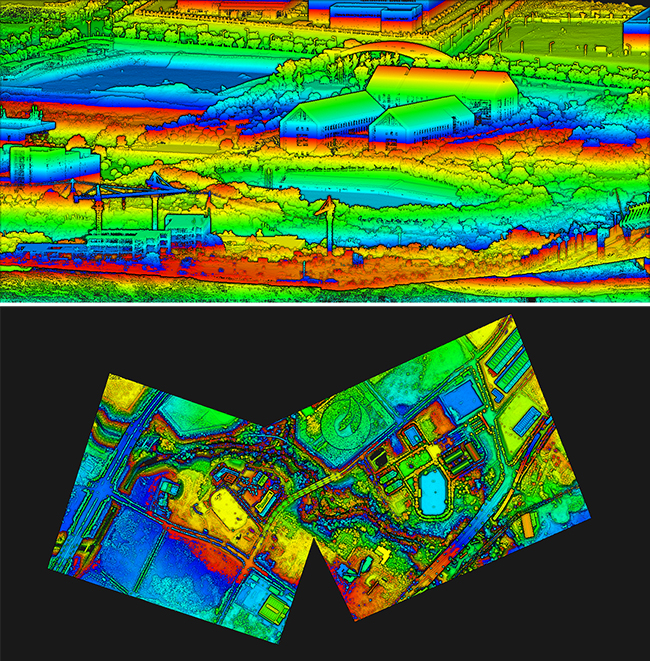

Output1: geo-referenced point cloud

15-1


Output2: DEM
17-1


Accuracy Verification: V. below 5 cm

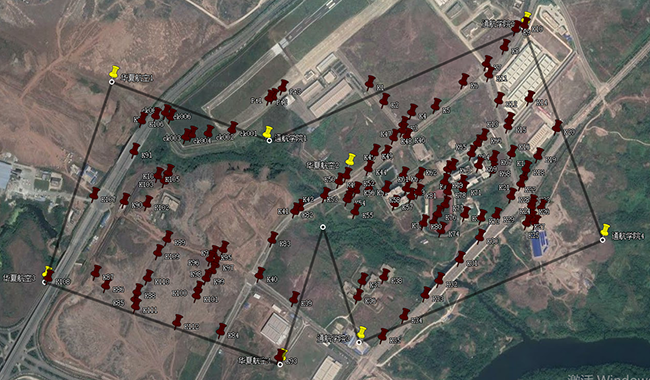

Number of Checkpoint: 105 points by GNSS RTK measurement (red icons)

19


20 -1

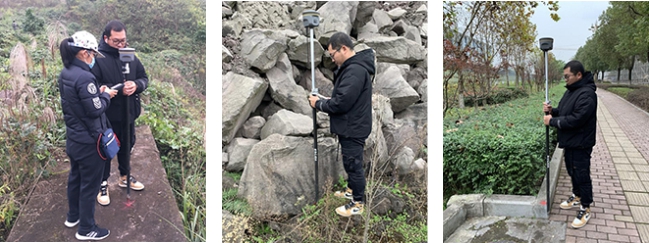

Checkpoint K26                         Checkpoint K19                         Checkpoint K4

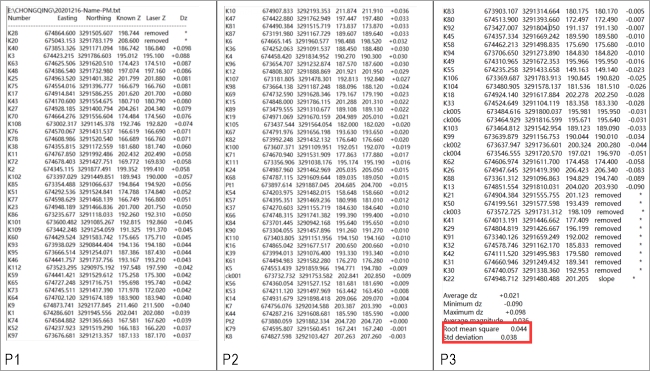

Checkpoint Report in TerraSolid:

root mean square 0.044 m

standard deviation 0.038 m


23-1
