CASE STUDY OF ONE-STOP METRO TUNNEL MOBILE SCANNING & AUTOMATED DETECTION (2)

Author: Jackie CheungDate: February 23, 2022View: 1257

5. Final Results


14

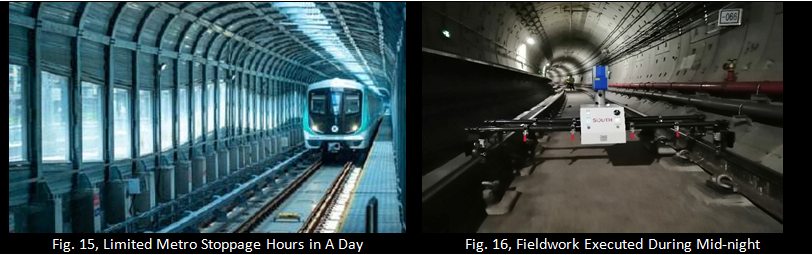

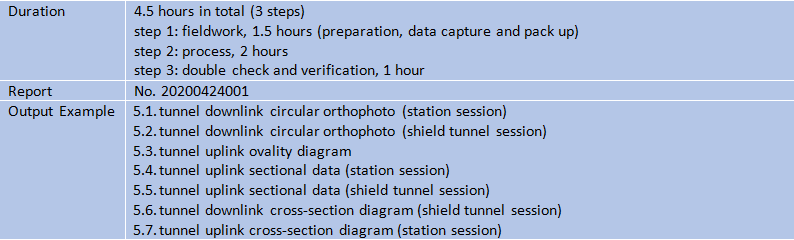

The metro network system serving a populated metropolis usually has a few hours for nighttime stoppage (see Fig. 15), during which all necessary inspection and maintenance tasks shall be done. Our team were allowed to enter the site within 1:30 am to 3:30 am (see Fig. 16), and actually 1.5 hours was needed to accomplish the fieldwork mission there. In total, we spent less than 5 hours and came up with the final results. Parts of the results were selected below for the study. Interested parties may contact us for more details.


15

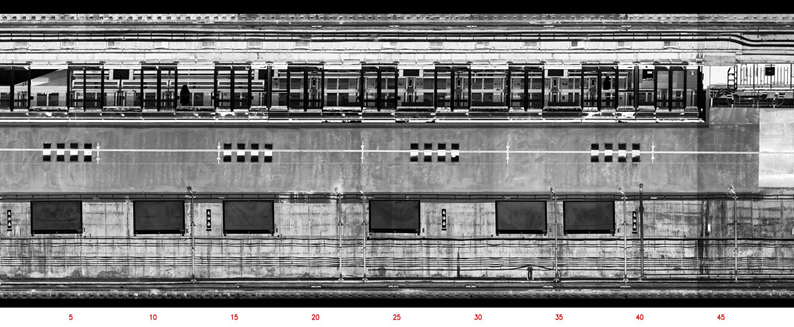

5.1. tunnel downlink circular orthophoto (station session)


16

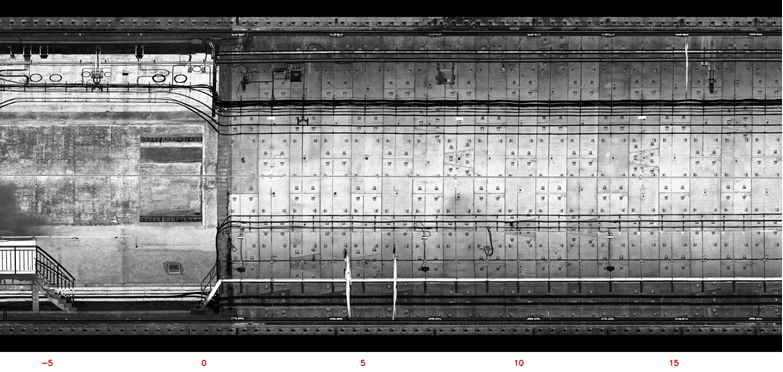

5.2.1. tunnel uplink circular orthophoto (shield tunnel session, Ring No. 0-20)


17

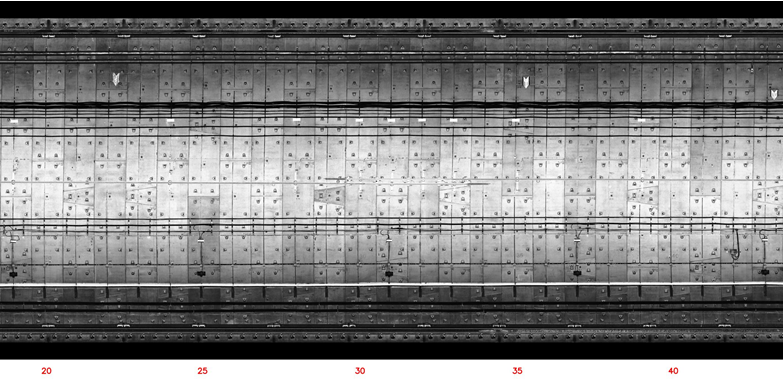

5.2.2. tunnel uplink circular orthophoto (shield tunnel session, Ring No. 20-40)


18

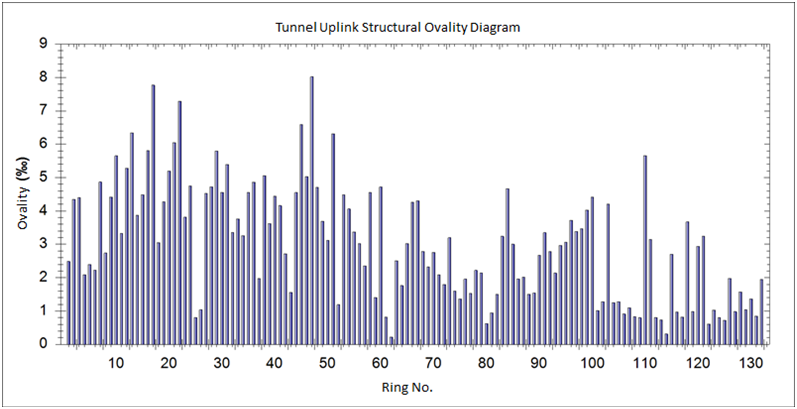

5.3. tunnel uplink ovality diagram


19

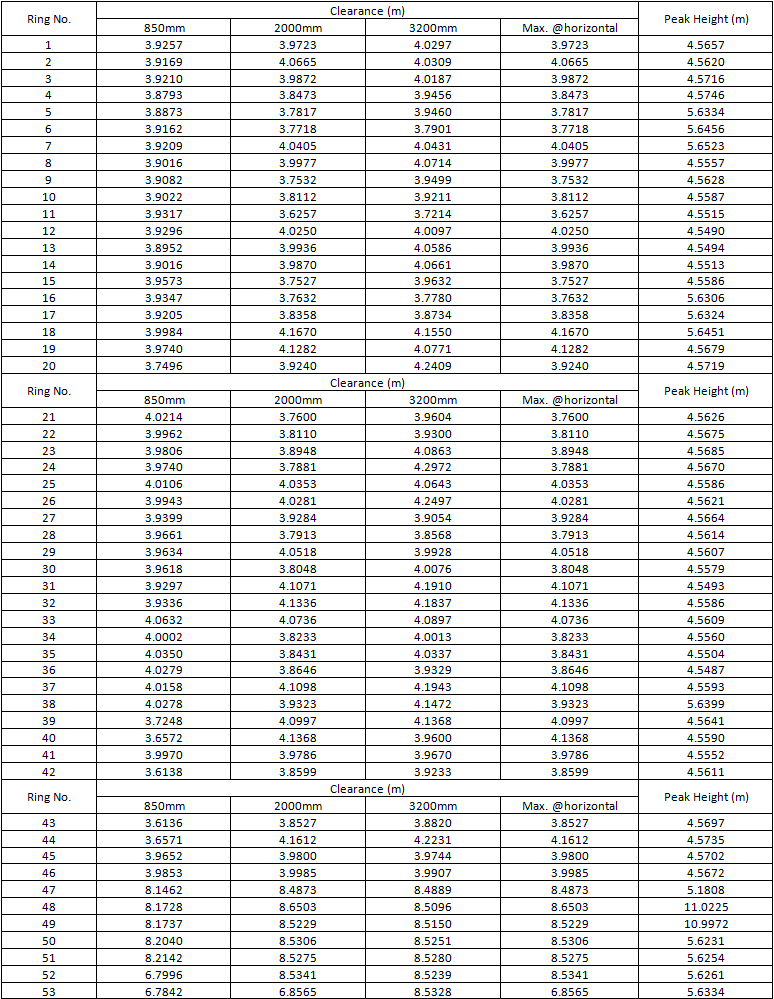

5.4. tunnel uplink sectional data (station session)


20-1

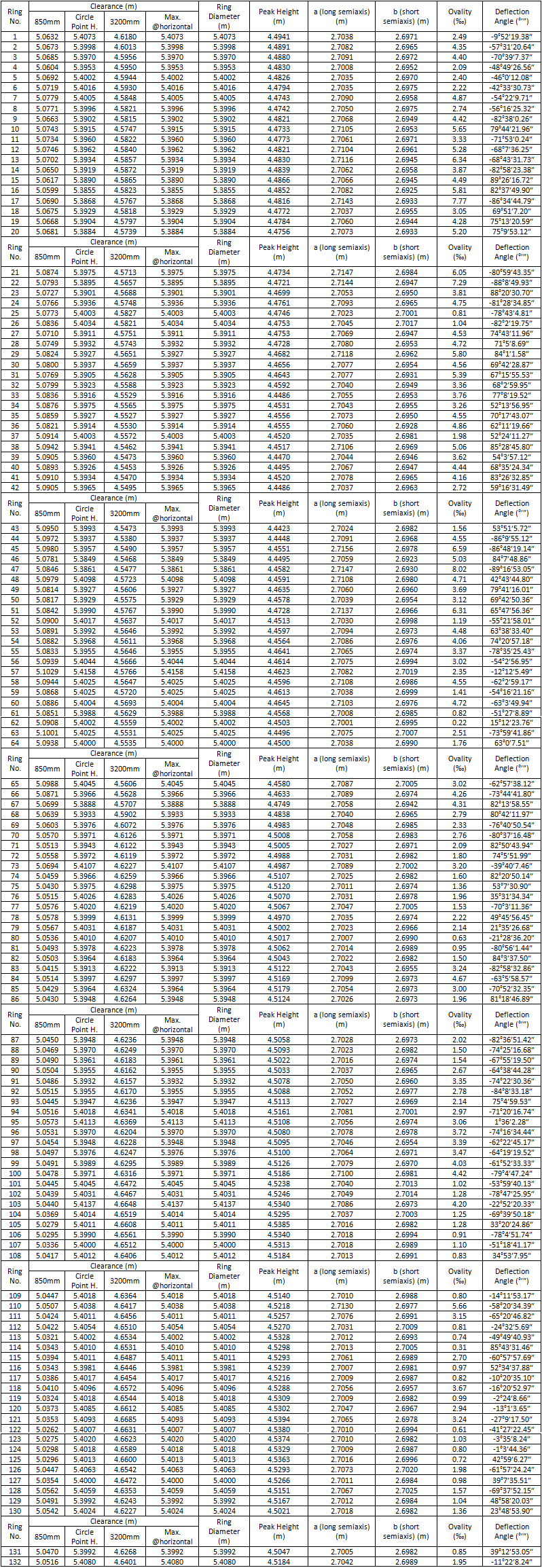

5.5. tunnel uplink sectional data (shield tunnel session)


20

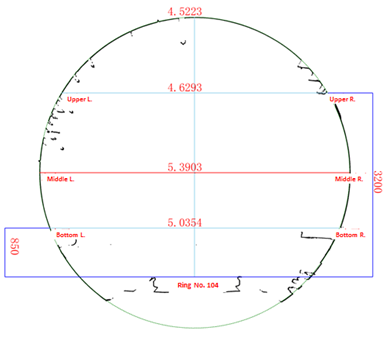

5.6. tunnel downlink cross-section diagram (shield tunnel session, Ring No. 104)


22

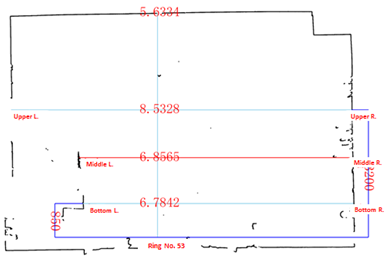

5.7. tunnel uplink cross-section diagram (station session, Ring No. 53)


23
