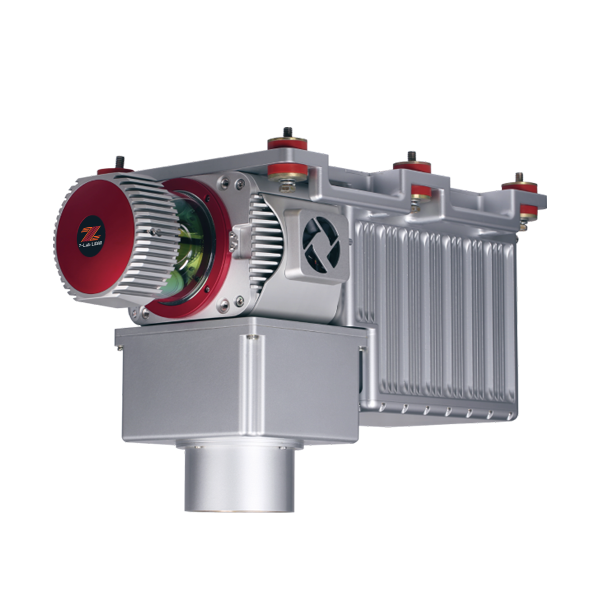

LiDAR SZT-R1000

    ● Multi-platform (Helicopter/SUV/ATV/Vessel) applications ● Point cloud density up to 550,000 points per second ● Accuracy control down to 5mm, applicable for 1:500 mapping ● Working range up to 920m with 330-degree FOV

Model: SZT-R1000

Download:

SZT-R1000 Brochure

Features

R100011


R1000a



HARDWARE

R100011



APPLICATIONS


R100011

Specification

LiDAR System Laser Channels --
Laser Range max. 1350 m
Field of View 0°~ 330°
Angular Resolution 0.001°
Max. Means Rate up to 500,000 meas./sec
Accuracy Automotive: H:2 cm/V:3 cm (≤50 m);
Helicopter: H:15 cm/V:8 cm (500 m)
Camera Effective Pixels 22.3 MP (DSLR); 30 MP (panorama camera, see details in Part III below)
Recommended scanning height AGL --
Net Weight 5.99 kg
Dimensions 515 x 248 x 310 mm
Input Voltage 11-32V DC
Power Consumption 85 W
Data Storage --
Part I: Laser Scanner Type --
Wavelength --
Eye Safety Class laser class 1
Laser Product Classification --
Laser Pulse Repetition Rate 500 kHz
Range Accuracy --
Accuracy/ Precision 10 mm / 5 mm
Rotation Rate --
Scan Speed --
Multi-echo effect --
Data Storage 8 to 32 GB
Environment Protection IP64
Temperature operating: 0° to 45°C; storage: -20° to 50°C
Part II: POS System Type 0.05°per hour
Gyroscopes Bias in-run Stability --
Gyroscopes Measurement Range --
Accelerometers Measurement Range --
Post Processing Roll/Pitch Accuracy --
Post Processing Heading Accuracy 0.017°
Post Processing Position H/V Accuracy 0.01/0.02 m
Post Processing Velocity H/V Accuracy 0.02/0.01 m/s
Data Sampling Rate POS: 125 Hz; Location: 5 Hz
Internal Memory SSD 240 GB

Note: all information above is subject to change without any prior notice.
