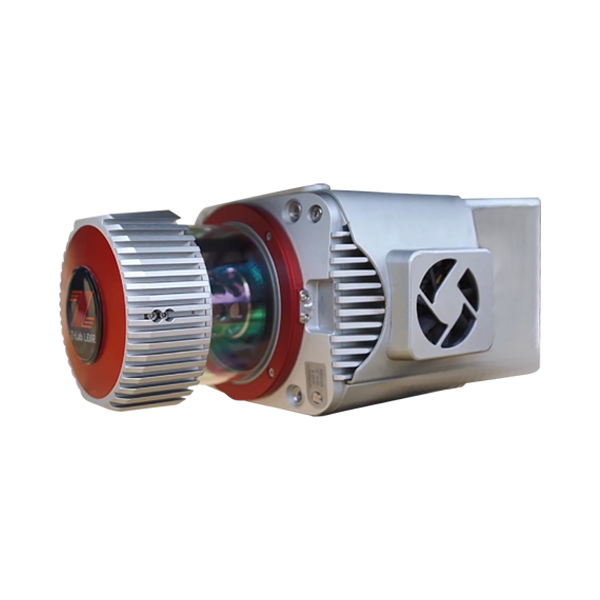

LiDAR SZT-R1000Ⅱ Series

    ● Extremely lightweight unit with compact design ● Survey-grade sensors integrated for accurate topography ● Ready to fit a variety of mobile carrier platforms ● Complete software kits available for abundant outputs ● Field-proven solutions and project-based background

Model: SZT-R1000Ⅱ Series

Download:

LiDAR SZT-R1000Ⅱ Series Brochure

Features

4 kilogram only (without camera)


5 millimeter scanner accuracy optimal


250 scans per second maximum


1,540 meter measuring range maximum


1,000,000 effective measurements per second maximum



1000


Specification

LiDAR System R1000Ⅱ Series Model Code R1000UAV / R1000LR / R1000HA
Preferred Application R1000UAV: best in aerial mode
R1000LR: best in aerial mode
R1000HA: best in automotive mode
Power Consumption R1000UAV: typical 80 W
R1000LR: typical 85 W
R1000HA: typical 85 W
Input Voltage 12-30V DC
Temperature Range 0℃ up to +40℃ (operation); -20℃ up to +50℃ (storage)
Dimension (LxWxH) 272 x 209 x 129 mm
Net Weight (w/o camera) approx. 4 kg / 4.25 kg (without/with cooling fan)
PartⅠ: Laser Scanner Model Code R1000UAV / R1000LR / R1000HA
Scanner Sensor R1000UAV: Riegl VUX-1UAV
R1000LR: Riegl VUX-1LR
R1000HA: Riegl VUX-1HA
Laser Pulse Repetition Rate R1000UAV: up to 550 kHz
R1000LR: up to 820 kHz
R1000HA: up to 1,000 kHz
Measuring Range (natural targets p≥ 80 %) R1000UAV: 1050 m (@50 kHz)
R1000LR: 1540 m (@50 kHz)
R1000HA: 420 m (@300 kHz)
Minimum Range R1000UAV: 3 m
R1000LR: 5 m
R1000HA: 1.2 m
Max. Effective Measurement Rate R1000UAV: up to 500,000 meas./sec. (@ 550 kHz PRR & 330° FOV)
R1000LR: up to 750,000 meas./sec. (@ 820 kHz PRR & 330° FOV)
R1000HA: up to 1,000,000 meas./sec. (@ 1000 kHz PRR & 360° FOV)
Accuracy R1000UAV: 10 mm
R1000LR: 15 mm
R1000HA: 5 mm
Precision R1000UAV: 5 mm
R1000LR: 10 mm
R1000HA: 3 mm
Scan Speed (selectable) R1000UAV: 10-200 scans/sec
R1000LR: 10-200 scans/sec
R1000HA: 10-250 scans/sec
Field of View R1000UAV / R1000LR: up to 330° (full range measurement performance)
R1000HA: 360° full circle
Angular Resolution 0.001°
Laser Product Classification Class 1 Laser Product according to IEC 60825-1:2014
Laser Wavelength 1550 nm near infrared
Laser Beam Divergence 0.5 mrad
Protection Class IP64, dustproof and splash-proof
Humidity max. 80 % non-condensing @ 31°C
Internal Memory 1 TB SSD
PartⅡ: Position & Orientation System (POS) Model Code R1000UAV / R1000LR / R1000HA
Accelerometer Range ±20 g
Gyroscope Range ±200°/sec
Gyroscope Bias Stability ±0.25°/hr
Heading Accuracy post processed: 0.05°
Roll/Pitch Accuracy post processed: 0.015°
Positioning Accuracy post processed: H. 1 cm; V. 2.5 cm
Part Ⅲ: Imaging System Fitting Mode R1000UAV: UAV-based
R1000LR: Helicopter-based
R1000HA: SUV-based
Sensor Type R1000UAV: DSLR camera
R1000LR: Industrial-level metric camera
R1000HA: 360° spherical camera system
Sensor Model R1000UAV: Sony Alpha7RII
R1000LR: PhaseOne iXU-RS180
R1000HA: FLIR Ladybug5+
Imaging Type R1000UAV: orthophotography, RGB
R1000LR: orthophotography, RGB
R1000HA: panorama, RGB
Resolution R1000UAV: 42.4 MP
R1000LR: 80 MP
R1000HA: 30 MP (5 MP*6 sensors)
Lens R1000UAV: 35 mm, F/1.4
R1000LR: 32 mm, F/4.0
R1000HA: -
Weight (lens included) R1000UAV: 1.0 kg / 2.21 lb
R1000LR: 1.90 kg / 4.19 lb
R1000HA: 3.0 kg / 6.61 lb

Note: all information above is subject to change without any prior notice.
