SDE-19

    • Rugged 316L meterial metal hull,stable IP67 design • Wireless connec?ons: Tablet WIFI connect with echo sounder, bluetooth connect with GNSS receiver. • Professional Windows hydrographic survey program, support standard GNSS receiver format • Built-in operated web UI, simple for users’configura?on • The host of Series 19 echo sounder is lightweight, compact, and deployable on USV.

Model: SDE-19

Download:

SDE-19 Brochure

Features

SDE-19 is SOUTH latest echo sounder product. With abundant project experiences,SDE-19 is an innovated echo sounder for hydrographic surveyors.

SOUTH knows  deeply that echo sounder needs to be rugged and also portable, SDE-19 is that onefor the professional hydro surveyors who are looking forward to.

SDE-19 can apply in marine survey, fluid mud area survey, topographic survey andsea-route survey etc.


Applications


Specification

SDE-19 Frequency SDE-19S: 200k Hz
SDE-19D: 200k Hz and 20K Hz standard
Measure range SDE-19S: 0.3m - 200m
SDE-19D: 200k Hz: 0.3 - 200m 20k HZ:0.5- 600m
Beam angle SDE-19S: 200k Hz: 7 degree
SDE-19D: 20k Hz: 0.5-600m
Power supply DC 12V
Interface 3* RS232, 1* RS485, 1 power supply interface,
1 transducer port and 1 LAN port
WiFi Build-in WiFi unit, support webUI login and data transmission
IP level IP67
Operating temperature -45°C - 60°C
Hull material 316 stainless steel

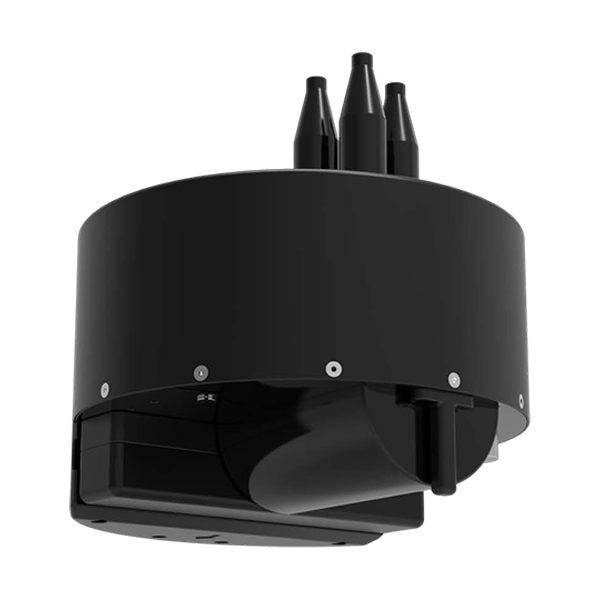

Transducer size SDE-19S: 254mm×124mm×45mm
SDE-19D: 250mm×147mm×110mm

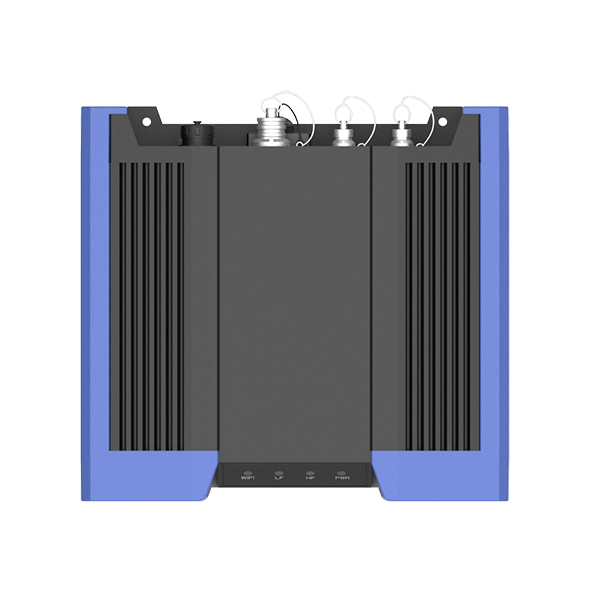

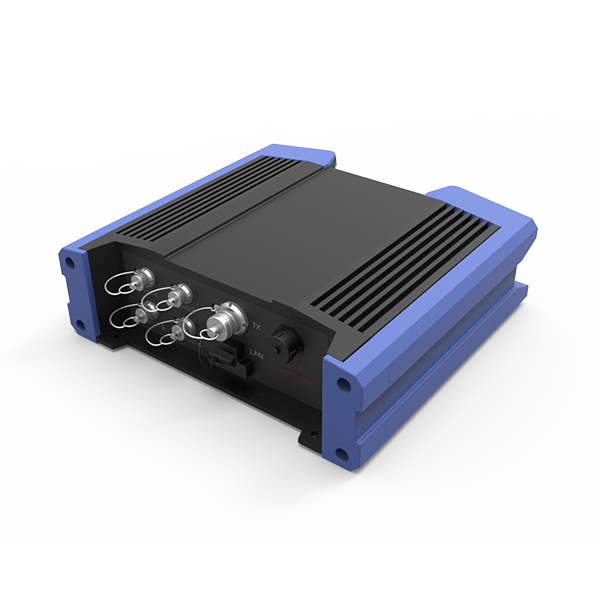

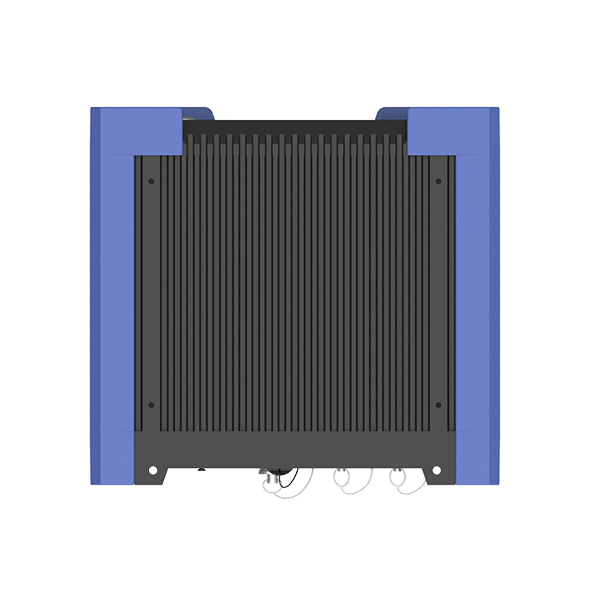

Host size 220mm×210mm×70mm
Host weight SDE-19S: 2.9KG
SDE-19D: 3.0KG
Accuracy SDE-19S: 200 kHz: ±1cm±0.1%D
(D is the depth value)
SDE-19D: 200 kHz: ±1cm±0.1%D
(D is the depth value)
20 kHz: ±10cm±0.1%D
(D is the depth value)

Note: all information above is subject to change without any prior notice.
