Specification

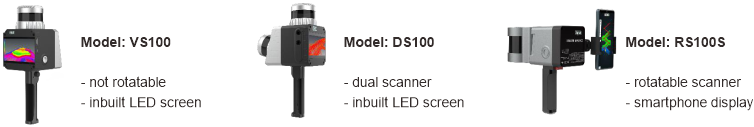

Number of Scanner	VS100	1
	DS100	2
	RS100S	1
Scanner Mode	VS100	non - rotatable
	DS100	non - rotatable
	RS100S	rotatable
Laser Channel	VS100	32
	DS100	32
	RS100S	16
Scan Rate	VS100	650,000 pts/sec
	DS100	1,300,000 pts/sec
	RS100S	320,000 pts/sec
FOV	VS100	360°x 45°
	DS100	360°x 360°
	RS100S	360°x 285°
Relative Accuracy	VS100	0.7-2 cm (best @ 50 m)
	DS100	0.7-2 cm (best @ 50 m)
	RS100S	up to 1 cm
Weight (handheld)	VS100	0.9 kg
	DS100	1.6 kg
	RS100S	1.6 kg
Battery Endurance	VS100	5 hrs (with 2 battery, hot swappable)
	DS100	4 hrs (with 2 battery, hot swappable)
	RS100S	4 hrs (with 2 battery, hot swappable)
Realtime Display	VS100	inbuilt touch screen
	DS100	inbuilt touch screen
	RS100S	smartphone APP
Scan Range	VS100/ DS100/ RS100S	max. 120 m
Laser Type	VS100/ DS100/ RS100S	Class 1 (IEC 60825-1:2014)
Material	VS100/ DS100/ RS100S	aviation-grade aluminum alloy, protective, weather-proof and anti-interference
Data Storage	VS100/ DS100/ RS100S	inbuilt SSD 500 GB (for all models); RS100S supports extendable memory (SD card 128 GB as default)
Data Process	VS100/ DS100/ RS100S	RTD (for VS/DS); RTD + post process (for RS)
Operating Temperature	VS100/ DS100/ RS100S	-40 ~ +60 ℃
Ingress Protection Rating	VS100/ DS100/ RS100S	IP 45

Note: all information above is subject to change without any prior notice.
