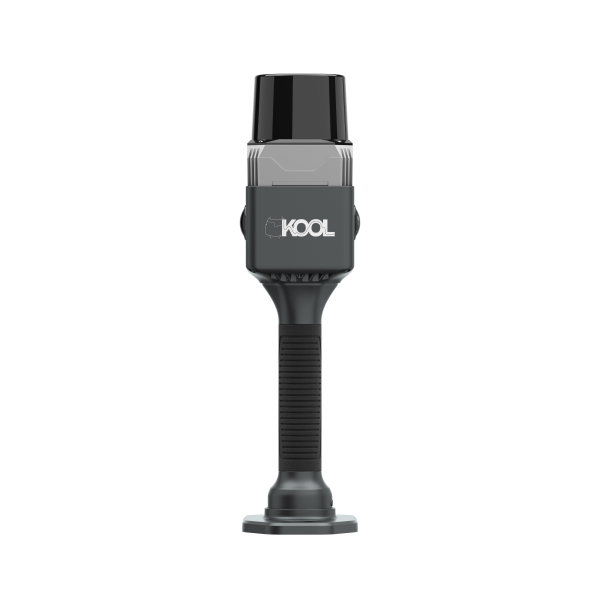

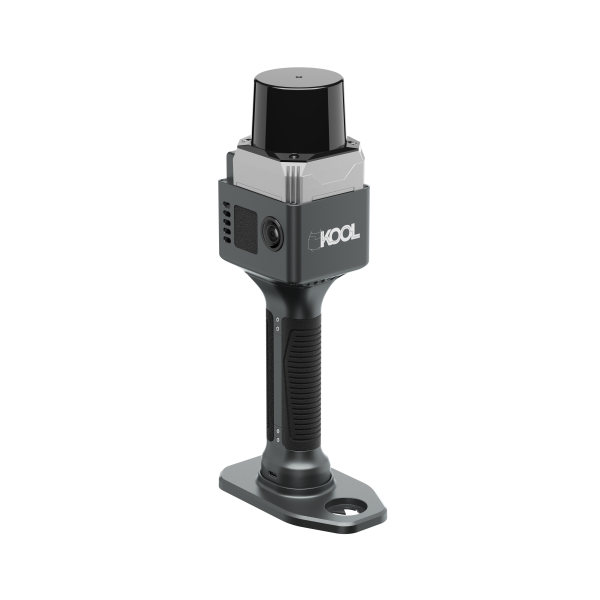

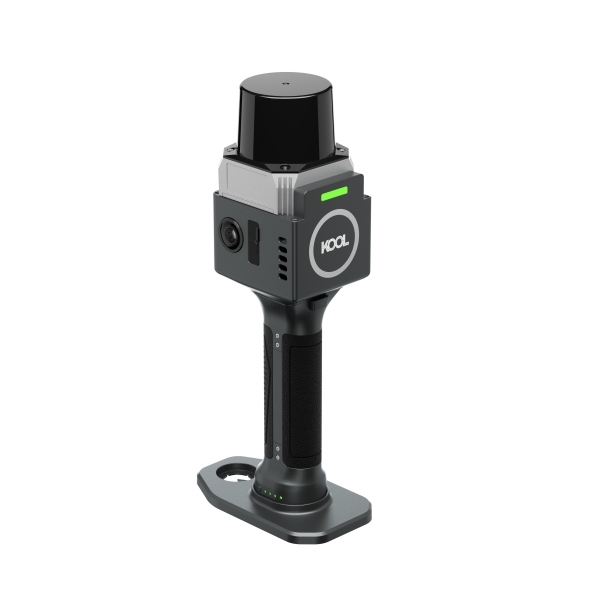

KOOL Handheld 3D Laser Scanner

    Model: KOOL Handheld 3D Laser Scanner

    Download:

    KOOL Handheld 3D Laser Scanner Brochure

    Features

    - Enjoys lightweight as well as sweet spot in scan range 100m

    - Super-wide FOV 360°x130° to bring larger coverage

    - 2 nos. 12MP HD camera lens standby for photorealistic colorization

    - Powerful algorithm to enable high-quality reality capture and digital reconstruction

    - Abundant software kits available from pre-process to industrial applications

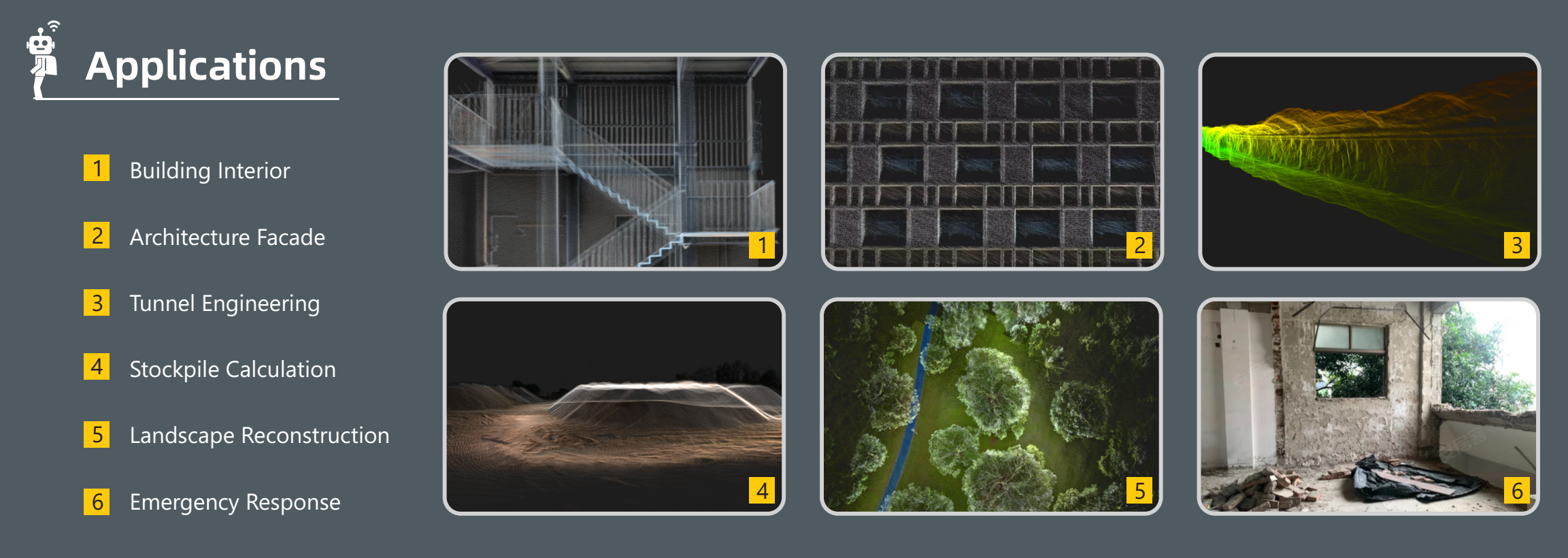

    Applications

    1

    Specification

    KOOL Handheld 3D Laser Scanner Scan Range 0.1-40m @10% reflectivity; 0.1-100m @90% reflectivity
    FOV 360°(H.)x130°(V.) optimized for data redundancy
    Scanner Sensor
    		 Mixed solid-state laser with stable internal structure
    Mapping Method
    		 SLAM, with realtime point cloud display
    Process Mode Realtime and post-process both
    Scan Rate 200,000 pts/sec (equivalent to 1.2 million pts/sec resulted from non-repetitive scanning and exclusive vari-frequency tech)
    Laser Class Class-1 eye-safety
    Camera Lens 2x 12MP
    Fieldwork Control MapStar
    Data Process AcuteLas Studio
    Accuracy Performance ≤1cm relative accuracy
    Geo-referencing Control points establishment for localization
    Power Supply Handgrip battery, 3,150mAh, 45.36Wh
    Power Consumption 23W
    Endurance 150 min
    Data Management
    		 TF card and Type-C
    Memory Capacity
    		 128 GB, expandable
    Ingress Protection
    		 IP5X
    Net Weight
    		 1.12 kg
    Dimension 111x222x33 mm
    Working Temperature -20℃ to 45℃
    Storage Temperature
    		 -20℃ to 45℃

    Note: 1. Non-repetitive scanning refers to the effective global covered point clouds in the even and random mode, and the line-spacing and blind spots from the conventional fixed laser beams would not exist. Therefore, it enjoys much fewer data gaps and better data integrity even in motion. 2. Optimized FOV directly results in much less repetitive scanning and fewer data gaps. When it comes with non-repetitive scanning, the point cloud data enjoys a much smaller size and faster processing. 3. All information herewith is subject to change without any prior notice.
