PD-520N

● Measuring Range: 200m ● Camera Focus, Easier to Catch the Target ● Graphic Display with 2.2 Inch Color Screen ● CMOS Sensor ● M16 Connector for Tripod

Model: PD-520N

Download:

PD Series Brochure

Features
Specification

Features

5dca6f32b10e4

Specification

PD Series	Measuring Range	0.05-200m with reflector plate
	Measuring Precision (typical)	±1.5mm
	Laser Class	620-690nm, ＜1mW
	Laser Type	II
	Type	Outdoor
	Selectable Datum Side	●
	Display Illumination	●
	Single/ Continuous Measurement	●

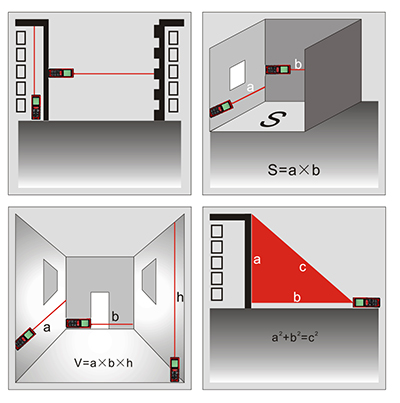

	Area Measurement	●
	Volume Measurement	●
	Single Pythagoras	●
	Double Pythagoras	●
	Plus/minus Calculation	●
	Measuring Extended Edge	●
	Time Delay Measurement	●
	Dip Angle Measurement	●
	Distance Stake-out	●
	Data Storage	99
	Metope Measurement	●
	Triangle Area	●
	Trapezoidal Measurement	●
	Graphics Auxiliary Targeting	CMOS
	Display Unit	2.2″color screen
	Unit Conversion	M/ft/inch
	Key	twelve keys
	Battery	Rechargeable lithium battery
	Battery Life	20000 times
	Size (mm)	137×52×29

Note: all information above is subject to change without any prior notice.
