NTS-332RU

    • 2” Angle Accuracy • EDM with 500m non-prism range • Simple but practical onboard software • Easy-to-read LCD screen • Easy connectivity by USB stick and Bluetooth • Trigger key

Model: NTS-332RU

Download:

NTS-332RU Brochure

Features

Fast and Powerful Reflectorless EDM

Fast and accurate 500m reflectorless range.

Fast distance measurement of 1.2s.

Smaller laser pointer for minimal measuring error.


Easy-to-Read LCD Screen

With ergonomic keypad, NTS-332RU provides a comfort user experience when operation, regardless of environment.


NTS-332R10 2101


Simple But Practical Onboard Software

NTS-332RU offers a quick response and clear feedback for its onboard software, like data input, measurement, stake out and roads.

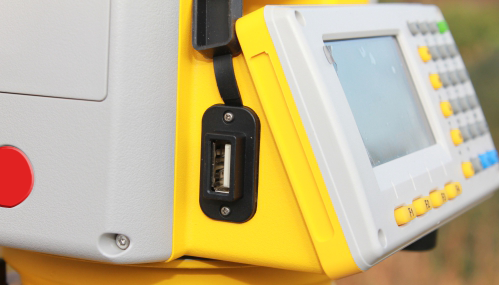

Easy Connectivity

• USB memory stick

• Bluetooth transfe

• Trigger Key


5ffff54e85c31

Specification

Distance Measurement Reflectorless 500m
Single Prism 2000m
Accuracy: Non Prism 3+2ppm
Accuracy: Prism 2+2ppm
Sheet 3+2ppm
Measurement Time 1.2s in fine 0.2s in tracking
Atmospheric Correction Manual input, Auto correction
Prism Constant Manual input, Auto correction
Temperature Correction Manual input, Auto correction
Distance Reading Max:99999999.999m Min:1mm
Angle Measurement Accuracy 2"
Method Absolute Encoding
Disk Diameter 79mm
Detection Method V: Dual, H: Dual
Angle Reading Min: 1"
Telescope Image Erect
Tube Length 152mm
Effective Aperture 45mm (EDM 47mm)
Magnification 30x
Field Of View 1°30' (2.6m)
Resolving Power 3"
Minimum Focus Distance 1.5m
Muitiple/Additive Constant 100/0
Keyboard And Display Keyboard Alphanumeric 28 Keys
Display 2.7 inches Black & White LCD
Resolution 160*96 dpi
Position Face 1, Face 2
Operation System Operation System -
Processor -
Memory Up to 80,000 records
Interface WIFI None
Bluetooth None
SD Card None
Serial Port None
Mini USB None
Mirco USB None
USB Flash Disk Yes
SIM Card None
Compensator System Liquid, Dual axis
Working Range ±6'
Accuracy 1"
Plummet Laser Plummet (Default)
Accuracy ±1.5mm @1.5m
Laser Brightness 5 levels adjustable
Wavelength 635nm
Laser Class Class 2
Laser Power 0.5mW
Optical Plummet (Optional)
Image Erect
Magnification 3x
Focusing Range 0.5m ~ ∞
Field Of View 5"
Accuracy -
Battery Type Li-ion
Voltage 7.4V
Operating time ＞25 hours (Operating Period with Single Angle and Measurement every 30 senconds)
Vial Plate Vial 30"/2mm
Circular Vial 8'/2mm
General IP Rate IP54
Temperature Range -20°C ~ +50°C
Dimension 206*200*353mm
Weight 5.3kg
Others -
Others -
Others -[P

Note: all information above is subject to change without any prior notice.
