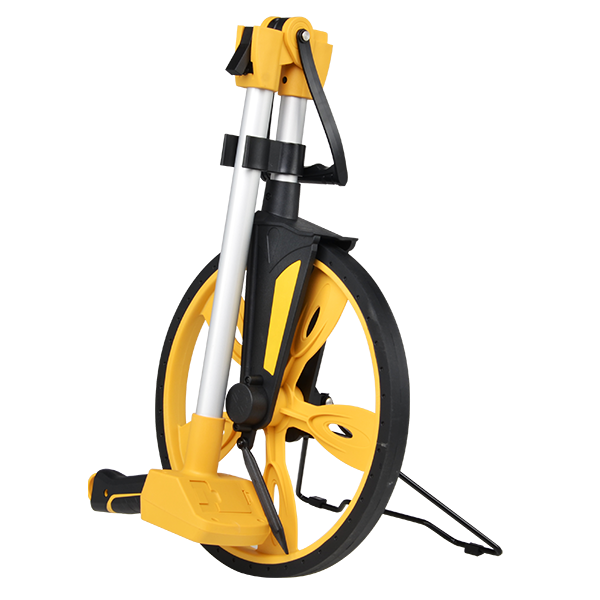

TERRA 12

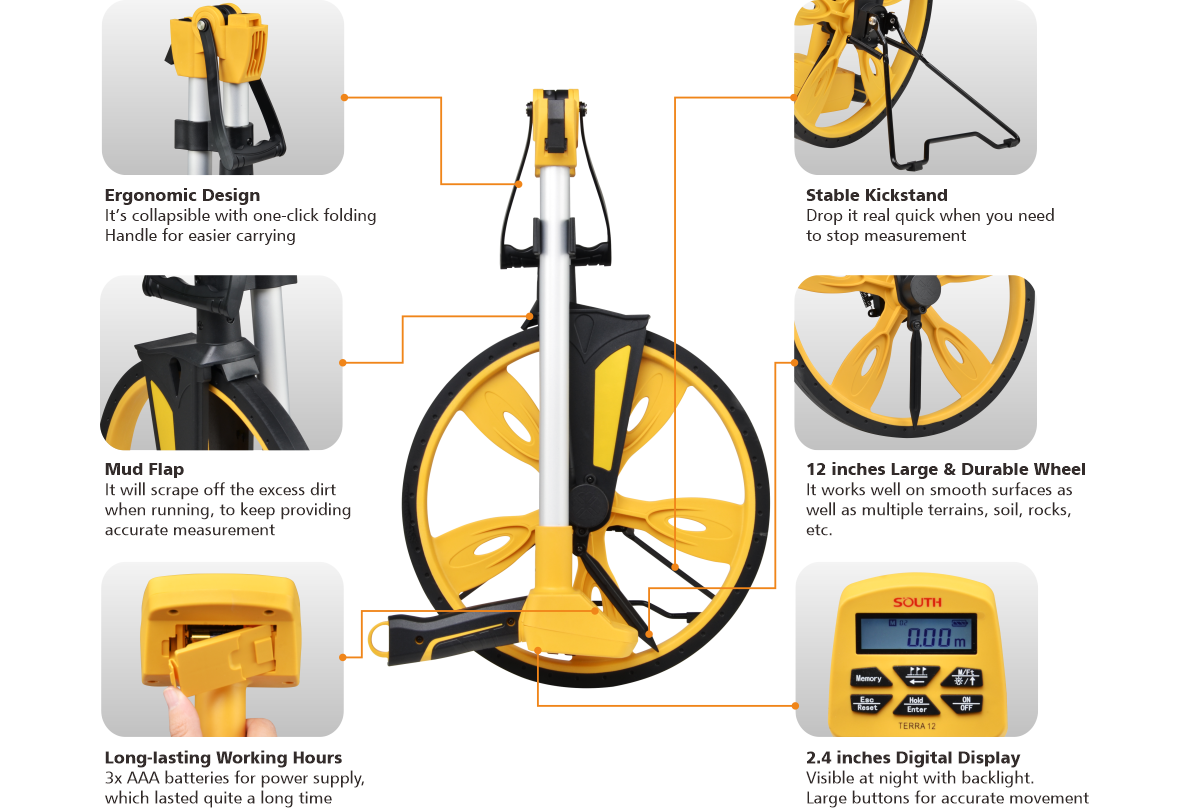

● 10000m Measuring Range ● Large Memory for 100 Points ● Easy-to-Use Design with Kickstand, Handle and Pointer ● Long-lasting Battery for 56 Hours Working ● Stake Out Quickly with Beeping Sound

Model: TERRA 12

Download:

TERRA 12 Brochure

Features
Specification

Features

TERRA 12

Specification

Measurement	Accuracy	0.01m/0.01ft
	Range	9999.99m/ft
	Response Speed	8m/s
	Indicate Error	±0.3%
Wheel	Diameter	12inch/30.48cm
Wheel	Thickness	2cm
Height	Maximum	96cm
Height	Minimum	51cm
Power Supply	Battery	3xAAA Batteries
	Working Hours	56 hours
	Consumption	0.036/0.044W
Display Unit	Screen	2.4 inches, 60*17mm with backlight
Display Unit	Keypad	6 Keys
General	Memory	100 points
	Sleep Mode	in 20 seconds
	Auto Off	In 2 minutes
	Working Temperature	-10℃~+60℃
	Working Humidity	≤95%
Size	Weight	1.98 kg
Size	Dimension	55cm33cm17.5cm
