DSZ1

    Model: DSZ1

    Download:

    DSZ1 Brochure

    Features

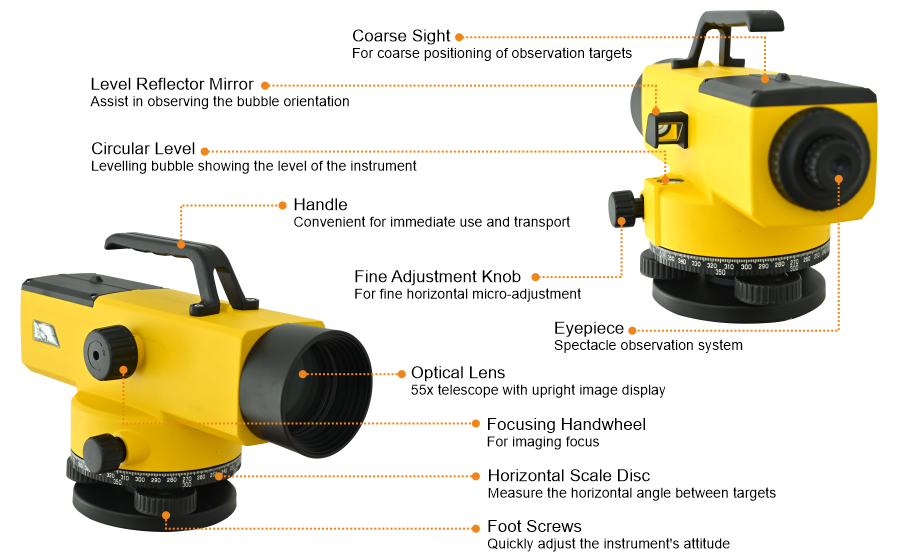

    Engineered to a high-precision automatic level, DSZ1 enjoys a wide range of leveling survey applications in land surveying, construction, and engineering projects. One of the key advantages of using this model is its ability to produce highly accurate and consistent measurements with reasonable ease and speed. It is particularly useful when working on large-scale jobs where time is a critical factor, which may enable the completion of work more efficiently and safely, with better quality results and reduced costs.


    DSZ1


    Specification

    Standard deviation of measurements per kilometre round trip High-quality indium steel scale 0.7mm
    Ordinary Scale 1.0mm
    Telescope Image Erect
    Magnification 55X
    Field of View 1°30’
    Min. Focus Distance 1.2m
    Multiplication Constant 100
    Addictive Constant 0
    Compensator Range ±15’
    Compensator Accuracy ±0.3”
    Sensitivity of Circular Bubble 8’/2mm
    Sensitivity of Circular Bubble 1° or 1 gon
    Weight 2.85kg
    Dimension 280*145*185mm
    Protection IP66
    Working Temperature -20℃~+50℃

    Note: all information above is subject to change without any prior notice.
