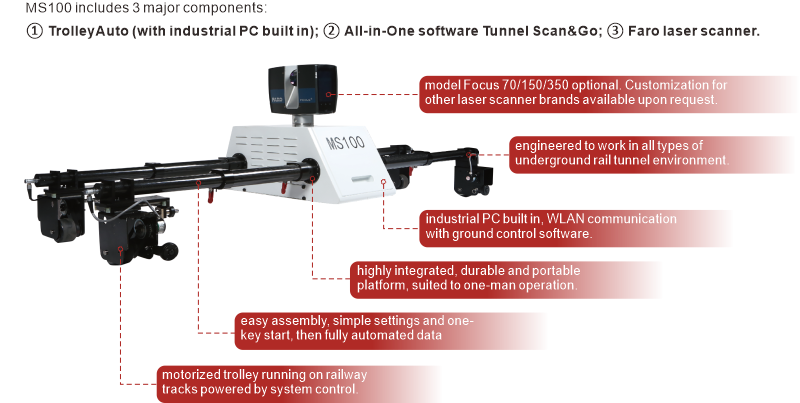

One-Stop Automated Metro Tunnel Inspection System MS100

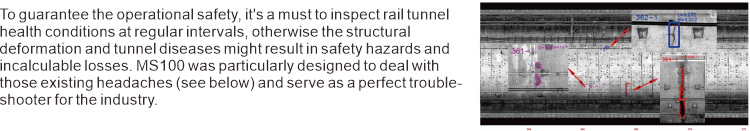

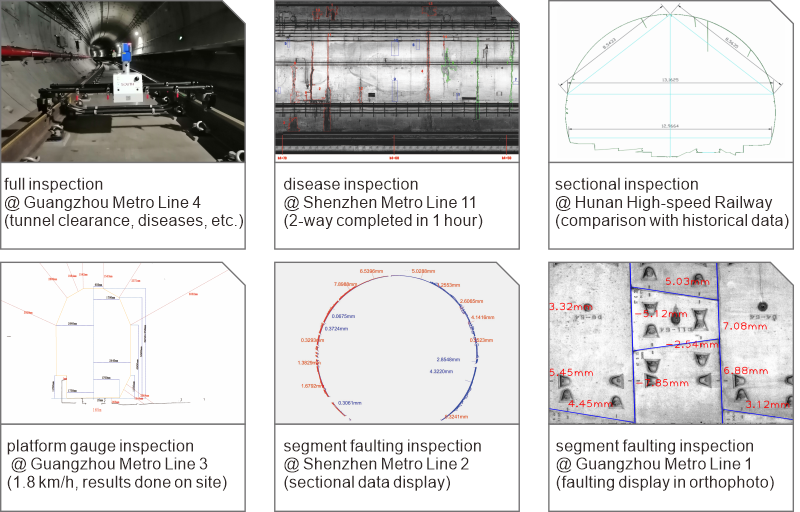

    To guarantee operational safety, it's a must to inspect rail tunnel health conditions at regular intervals, otherwise, the structural deformation and tunnel defects might result in safety hazards and incalculable losses. MS100 was particularly designed to deal with those existing headaches (see below) and serve as a perfect trouble-shooter for the industry.

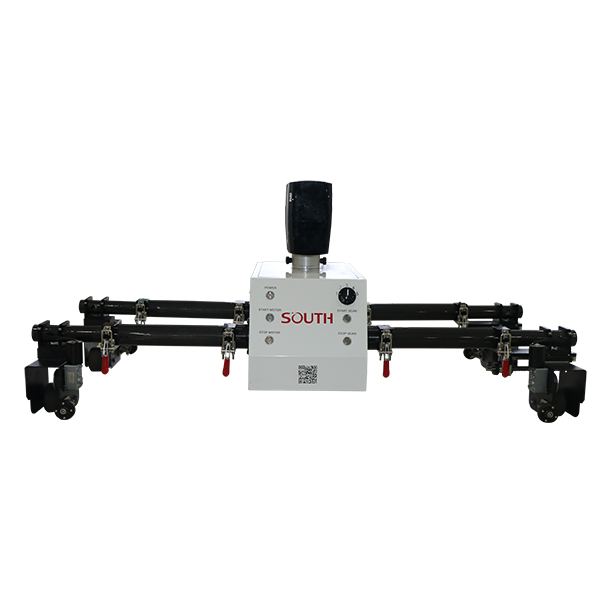

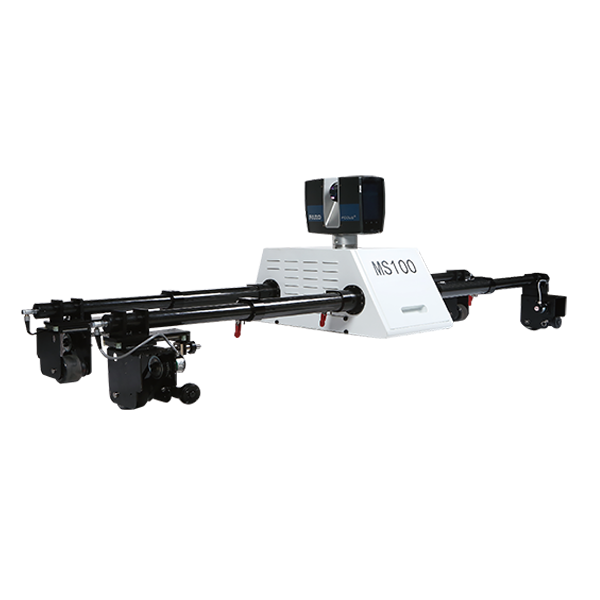

Model: MS100

Download:

One-Stop Automated Metro Tunnel Inspection System MS100 Brochure

Features

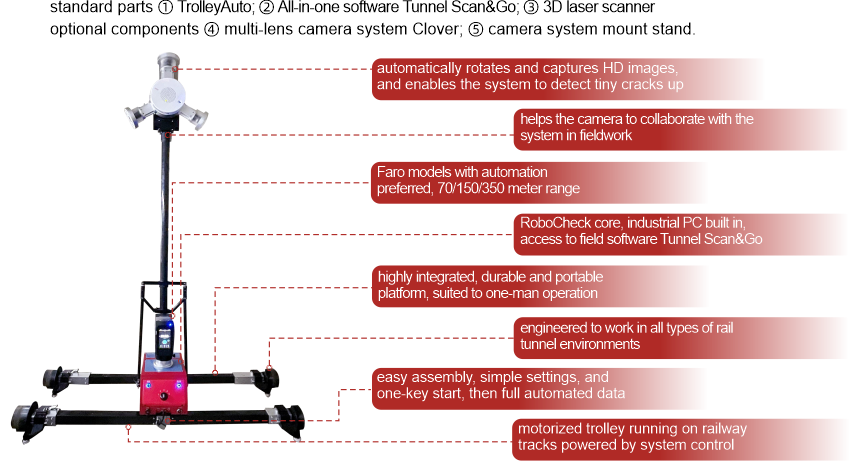

SYSTEM COMPONENTS ————


2


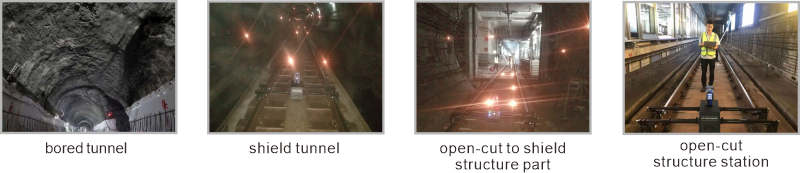

JOB ENVIRONMENTS ————


3


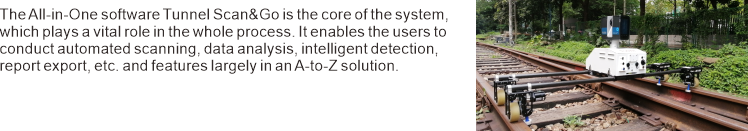

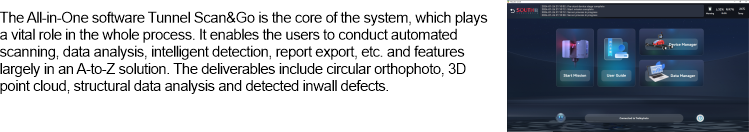

ALL-IN-ONE SOFTWARE ————


3


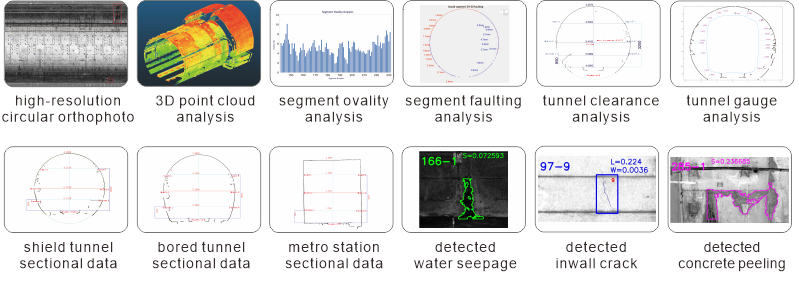

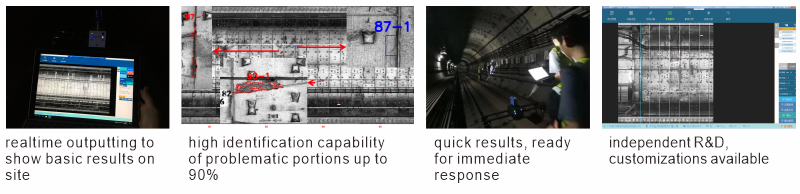

SOFTWARE FEATURES ————


4

Specification

TrolleyAuto Dimension 1566mm × 589mm × 411mm (LxWxH, without scanner)
Parts central control box and carbon fiber base stand, quick assembly/disassembly within 2 min
Applicable for railway track gauge 1425-1445 mm (standard 1435 mm)
Weight less than 30 kg (without scanner)
Material carbon fiber, composite materials, aluminum alloy
Temperature working -20~40°C; storage -30~40°C
Humidity ≤90%, non-condensing
CPU Intel i7/i9
Software Tunnel Scan&Go
Button physical
Language Chinese / English
Input DC 25.2V
Battery 2 × 12,000 mAh, endurance＞8 hrs
Wi-Fi hotspot available for remote access
SSD 1 TB
RAM 32 GB
Data Transfer data download by USB interface
Raw Data FLS, TXT, BMP, RAW, JPG, PNG, etc.
Output Format TXT, TIFF, DOC, XLS, TSD, etc.
Drive Mode driven by dual-motor engine
Control Mode Wi-Fi access and physical buttons control
Speed Control 0.05-5.5 km/h, with adaptive cruise control
Clover Applicable for shield tunnels, diameter 5.5±1.5 m, single-hole & single-link

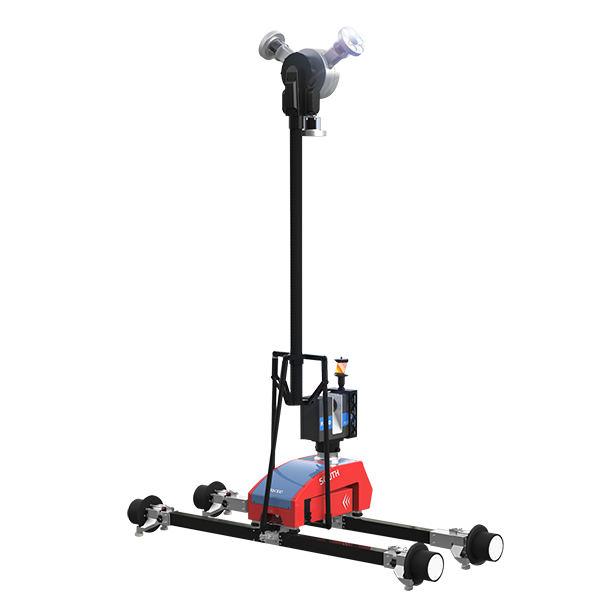

Carrier TrolleyAuto (as default platform, 400 mm wheelbase)
Function captures RGB images, BMP or RAW format
Image Resolution 0.26 mm @ 5.4 m, best for detecting tiny cracks
FOV up to 0.2 mm
Weight 360° coverage
Imaging Sensor 9 kg
Consumption overall＜240 w, each illuminator group＜30 w
Depth of Focus approx. 1 m
Work Mode spiral imaging
Working Mileage 2 km (when SSD 2 TB built in, as default);
4 km (when SSD 4 TB built in)
Computer Configuration (for process) CPU Intel Core i7 or above
RAM 32 GB or above
GPU Nvidia GTX 960 or above (for point cloud only);
Nvidia GTX 4060 or above (for HD images)
IMU (for absolute measurement only) type 3 FOGs integrated with 3 MEMS accelerometers
input rate ±490°/sec max.
bias instability (25°C) ≤0.1°/hr, 1σ max.; ≤0.05°/hr, 1σ typical
bias offset (25°C) ±2°/hr
initialization time (valid data) ≤1.5 sec
data rate 1 to 1000 Hz, selectable

Note: all information above is subject to change without any prior notice.
