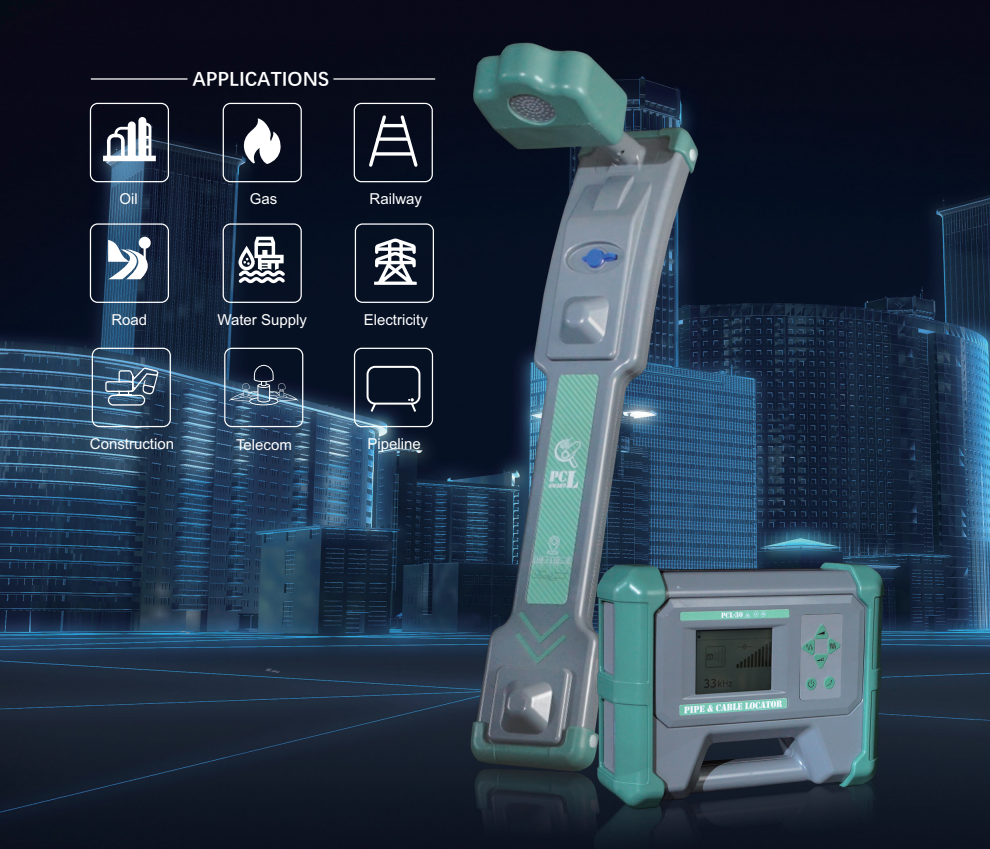

PCL-30 Pipe&Cable Locator

    which consists of a signal transmitter and a receiver. It can be used for path detection, depth measurement and pipeline census of underground cables and metal pipelines. With a variety of optional accessories, it can perform unique identification, as well as find pipeline insulation damage and some types of cable faults.

Model: PCL-30

Download:

PCL-30 Pipe&Cable Locator Brochures

Applications


Specification

PCL-30
 Sensitivity 6E-15 Tesla, 5μA @1m (33kHz)
Dynamic range 140dB
Depth accuracy Depth D≤2m:±2.5%, 2m＜Depth＜8m: ±5%
Position accuracy ±5% * depth
Screen display Color LCD screen
Pipeline track Eliminate interfering frequencies
Eliminate interfering frequencies Support passive Detection Spectrum Analysis
Depth sounding auxiliary sensor Signal distortion reminder (optional)
Active positioning filter bandwidth ± 2Hz
Maximum depth measurement
 30m
Active positioning mode
 Wide peak, narrow peak, valley value, historical curve, spectrum
Transmitter has multiple signal output modes
 Direct connection method, clamp method, induction method
Gain control
 Guided Mode：Automatic
Manual mode：Use "+" or "-" to manually adjust the gain, and restore the center value(40% or 60% of the full scale) with one key
Active positioning frequency：640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
Probe frequency
 512Hz, 8kHz and3 3kHz
Fault find Optional Accessories A-frame and compatible transmitter to remove insulation jackets from pipes and cables
Fault location accuracy
 10cm (fault detection booster and A-frame: used to locate partial cable faults and pipeline insulation damage points)
Passive positioning mode
 50/60Hz power frequency, 4-24kHz radio frequency
Multiple pipelines can be displayed simultaneously
100Hz (or 120Hz) for detection of impressed current cathodic protection (CPS) pipelines (optional)
Volume
 5 adjustable levels, allowing operators to clearly hear the alarm in noisy environments
Synchronize depth and current readings Simultaneously display pipeline depth and positioning signal current
Detection measurement value Store up to 1024 survey points in the locator and attach GPS data from internal GPS (if equipped) or external GNSS source via Bluetooth. Export data instantly or in batches via Bluetooth
Dynamic overload protection
 40dB(Automatic)
Battery
 The receiver has a built-in lithium-ion battery pack (continuous operation for 12 hours, 7.4V, >3Ah); the transmitter has a built-in lithium-ion battery pack (continuous operation for 12 hours, 7.4V, >3Ah)
Operating temperature -25℃ to 60℃, <90%RH
Storage temperature
 -20℃ to 70℃
Shipping size
 700mm x 260mm × 330mm
Quality certification
 ISO 9001:2015
IP
 IP65

54
