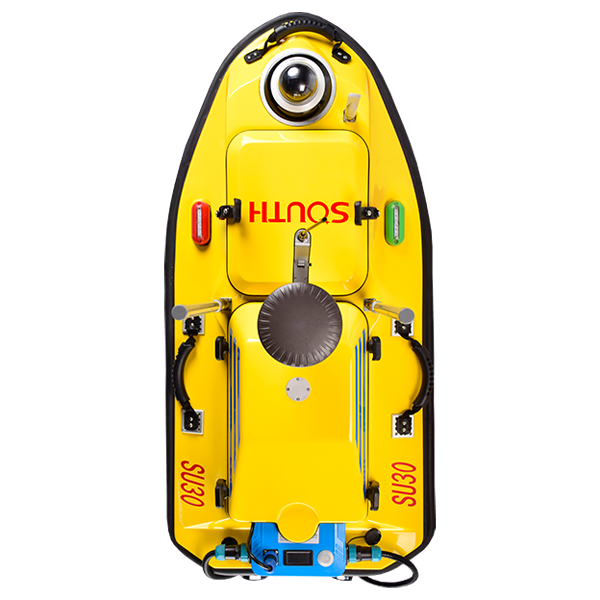

POSEIDON SU30

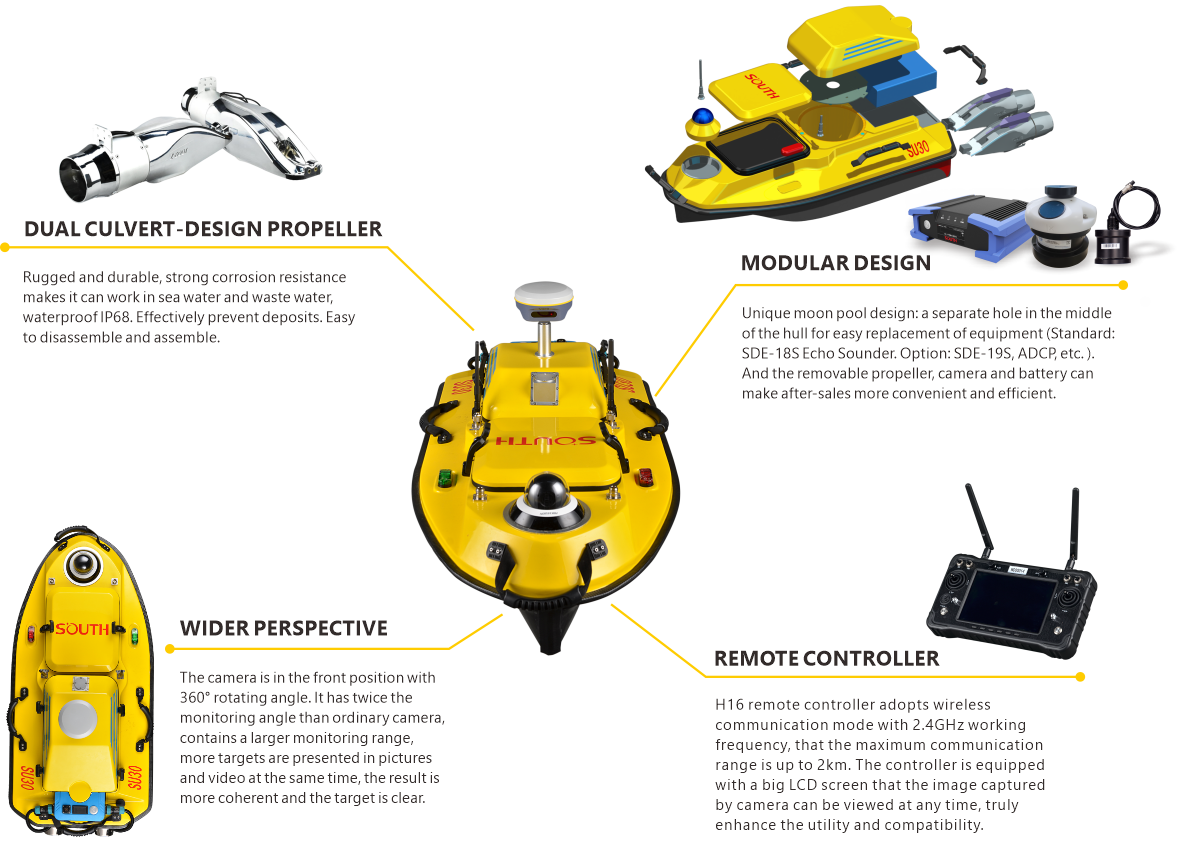

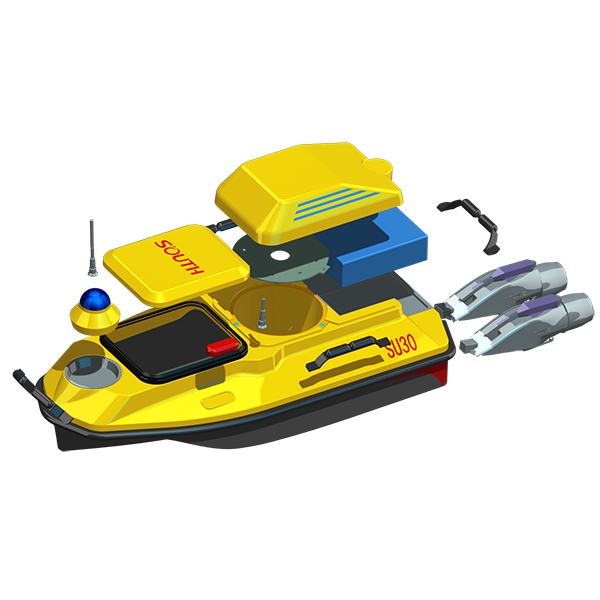

Poseidon SU30 USV is a new generation of high intelligent USV. The modular design brings enormous convenience for both end users and manufacturers. Small physical makes hydrographic survey go everywhere. Fields of Surveying and Mapping, Hydrogeology and Water Management can be easily covered. In addition, SU30 can be customized according to user’s requirements.

Model: SU30 (H16 version)

Download:

POSEIDON SU30 (H16 version) Brochure

Features
Specification

Features

Features

Specification

Physical	Dimensions	1205mm × 560mm × 440mm
	Weight (no instrument)	7kg
	Performance in wind and wave-resistance	≤smooth-wavelet 0.1~0.5m, ≤windspeed 3BF, 3.4~5.4m/s
	Material	High-impact GFRP
	Draught	≤15cm
	Maximum speed	6m/s
	Include motor	Yes, two corrosion-resistant motors that can work in seawater
	Include positioning system	Yes, GNSS RTK receiver, compatible with different brands
Communication	Methods	Network bridge 5.8G, R/C 2.4G, LTE 4G (optional)
	R/C Range	2KM
	R/C Frequency	2.4GHZ
Battery	Type	Lithium polymer
	Power	29.4V 35Ah
	Duration	More than 4 hours
	Waterproof	IP68
Camera	Resolution	1920 ×1080
	Infrared Distance	≥20m
	Focus mode	Automatic / Semiautomatic / manual
	Digital zoom	16 times
	Waterproof	IP65

Note: all information above is subject to change without any prior notice.

15292

Related products

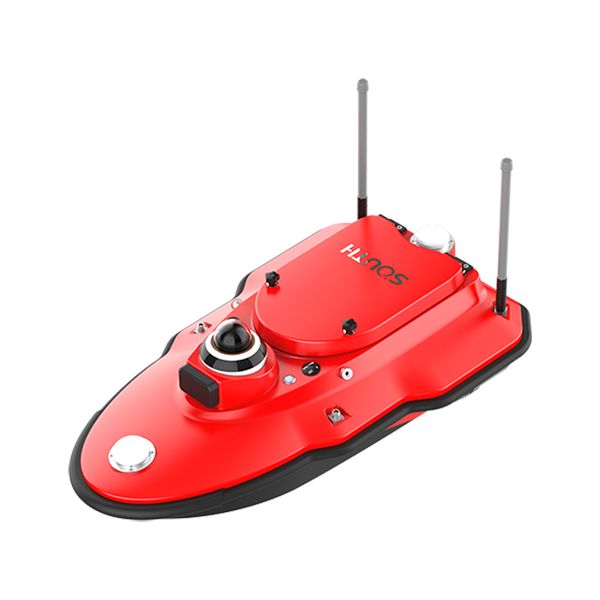

AQUA M20 and M10
