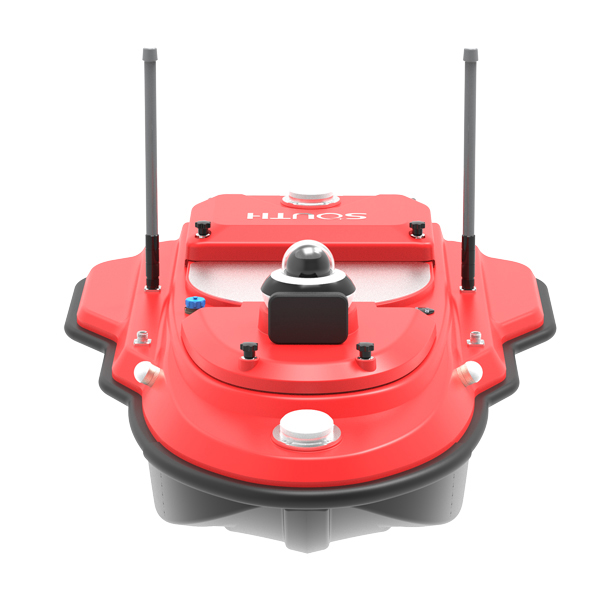

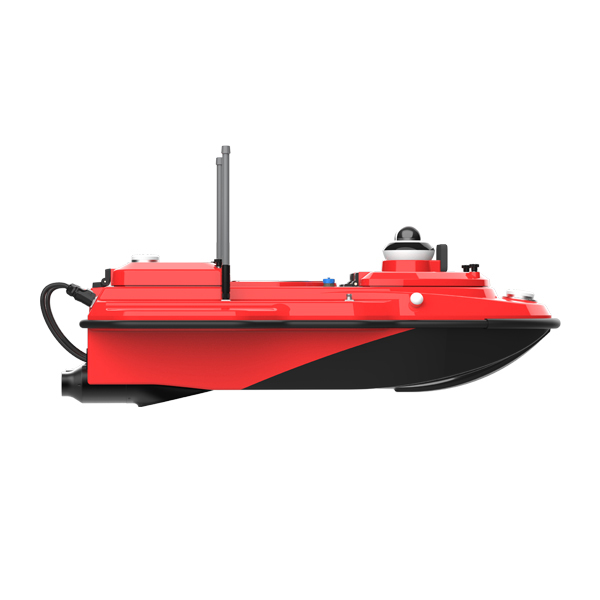

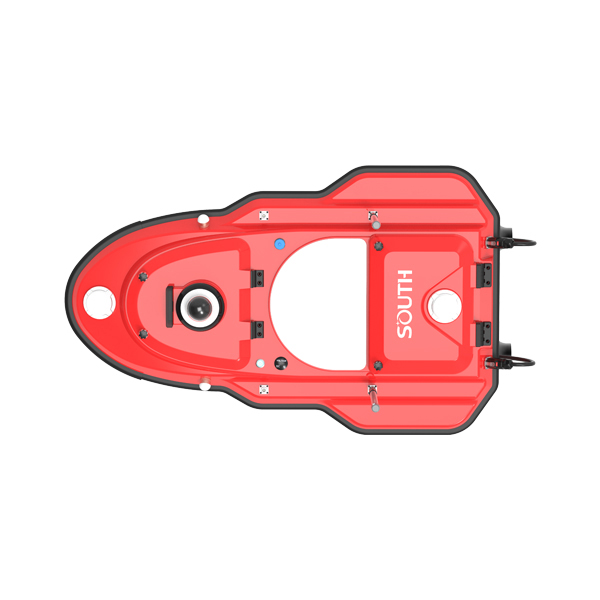

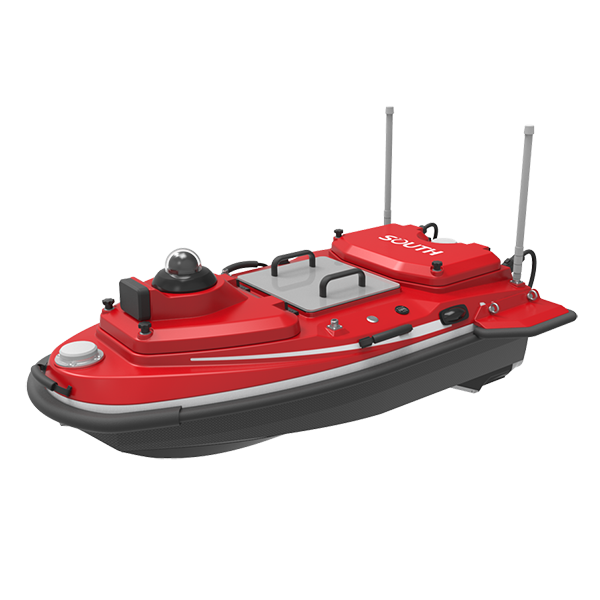

AQUA M20 and M10

    √ 15 years of experience in marine survey √ Entry-level and multifunctional models available √ Fits a variety of payload options against different applications √ Rugged, reliable and market proven

Model: AQUA M20 and M10

Download:

AQUA M20,M10 brochure (V.202411)

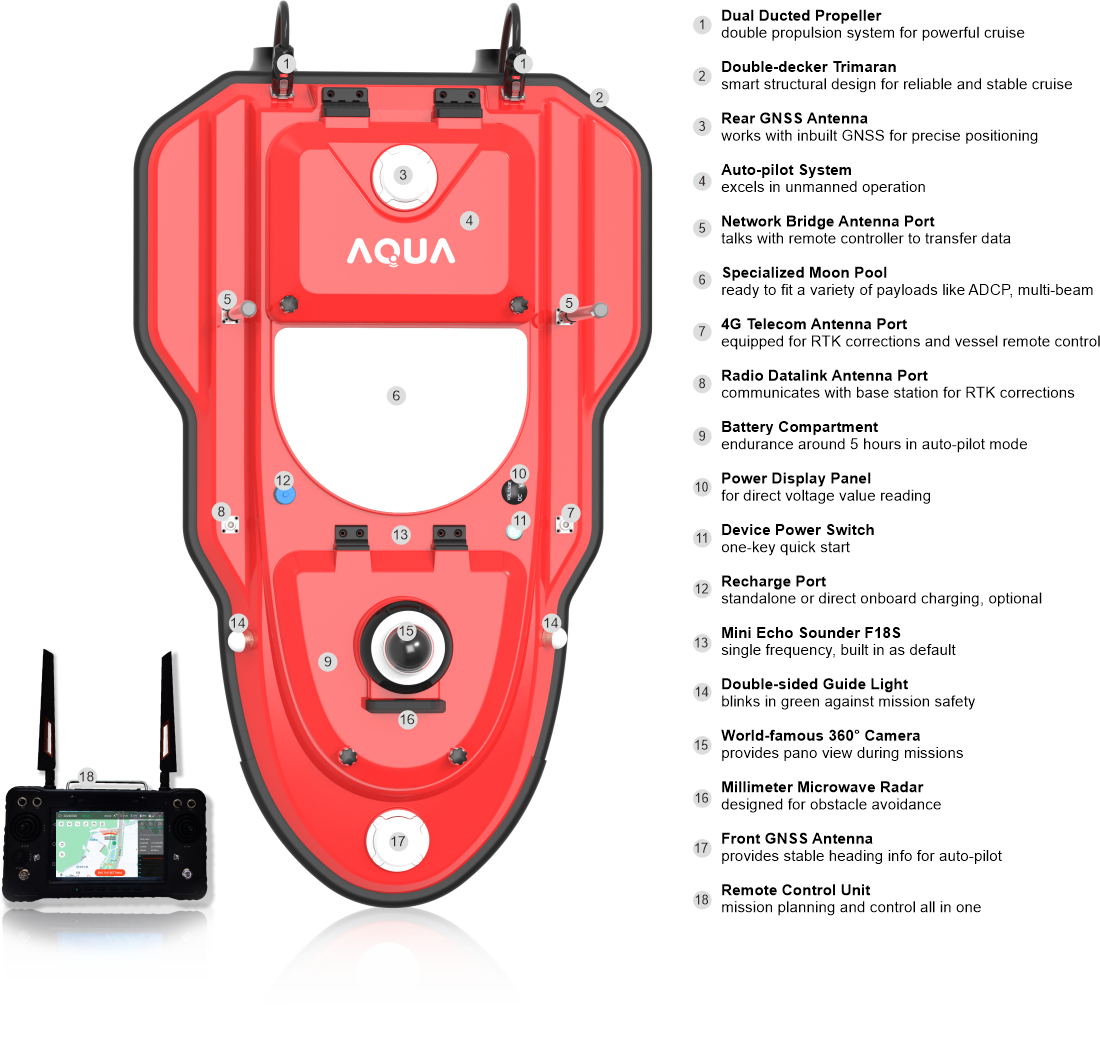

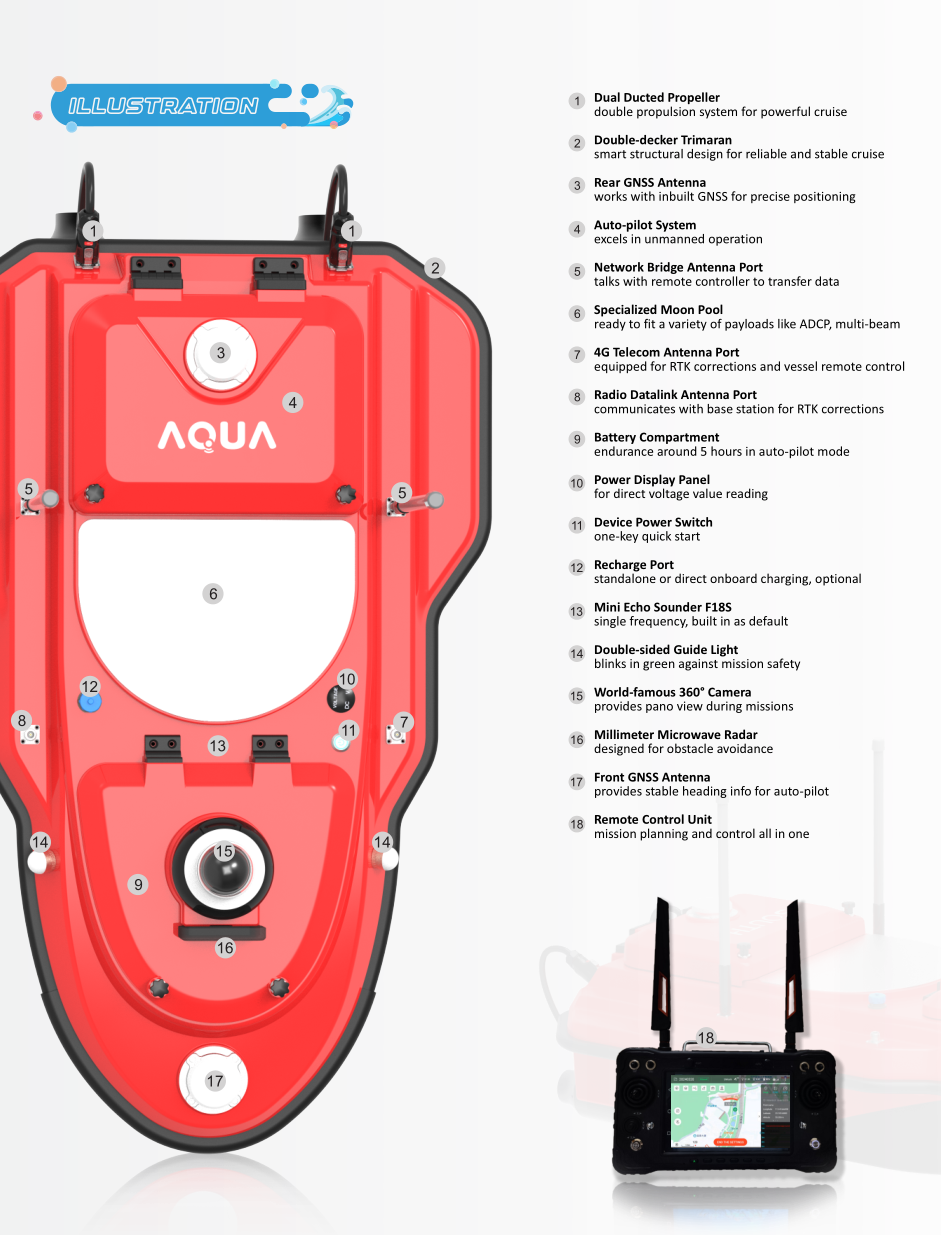

Features

web

Specification

PHYSICAL Dimension (LxWxH) M20: 1180x700x390 mm
M10: 950x500x350 mm
Payload M20: mini Single-frequency Echo Sounder (default), plus ADCP, Sub-bottom Profiler, Side Scan Sonar, Multi-beam Echo Sounder, etc.
M10: mini Single-frequency Echo Sounder (default) only
Material Nano carbon fiber polymer composite
IP Rating IP67
Wind-wave Resistance Gentle breeze, smooth wavelet
Telecom Interface Nano SIM card slot available
System Assembly Modular, plug-in
ELECTRICAL Video Communication 4G telecom & network bridge
Motor Engine High-efficiency culvert long-life brushless motor
Motor Power Typical 850W each
Battery Portable and detachable high-performance ternary Lithium battery, 33V, 45000mAh
Endurance M20: 5.5 hrs @2m/s
M10: 7 hrs @2m/s
(single battery, long-life option available)
PERFORMANCE Propulsion Electric drive
Cruise Speed 7m/s max.
Steering Mode Steering engine free, differential steering, reversible
Default Echo Sounder Built in, highly integrated with transducer, fully automatic operation after power connection. Operating frequency 200kHz, beam angle 5°, sounding angle 0.15-100m (upgradeable), ±1cm±0.1%D (D is the depth value)
Optional Echo Sounder M20: Operating frequency - high frequency≥200kHz, low frequency≤20kHz; beam angle – high frequency≤5°, low frequency≤20°；sounding angle – high frequency 0.15-300m, low frequency 0.5-600m; 200 kHz: ±1cm±0.1%D (D is the depth value); 33 kHz: ±10cm±0.1%D (D is the depth value)
M10: N/A
POSITIONING GNSS Antenna Dual antenna, pre-installed in front and rear individually
GNSS Constellation 1598 channels, support GPS, Glonass, Galileo, Beidou-2, Beidou-3, Beidou-PPP, IRNSS, QZSS, SBAS, L-band, etc.
Single-point Positioning Accuracy H ≤ 1.5m, V ≤ 2.5m
Beidou-PPP Accuracy ＜10cm, optional
RTK Accuracy H:±(8+106 xD)mmV:±(15+106xD)mmD-Baseline length (Unit: mm)
IMU Onboard Supports GNSS-inertial, 1PPS, IMU refresh rate 200Hz max.
IMU Performance Heading accuracy 0.15°@1m baseline, orientation accuracy 0.25°@1m baseline

Note: all information above is subject to change without any prior notice.
