AcuteLas Series LiDAR SA130mini

    Model: SA130mini

    Download:

    SA130mini Brochure

    Features

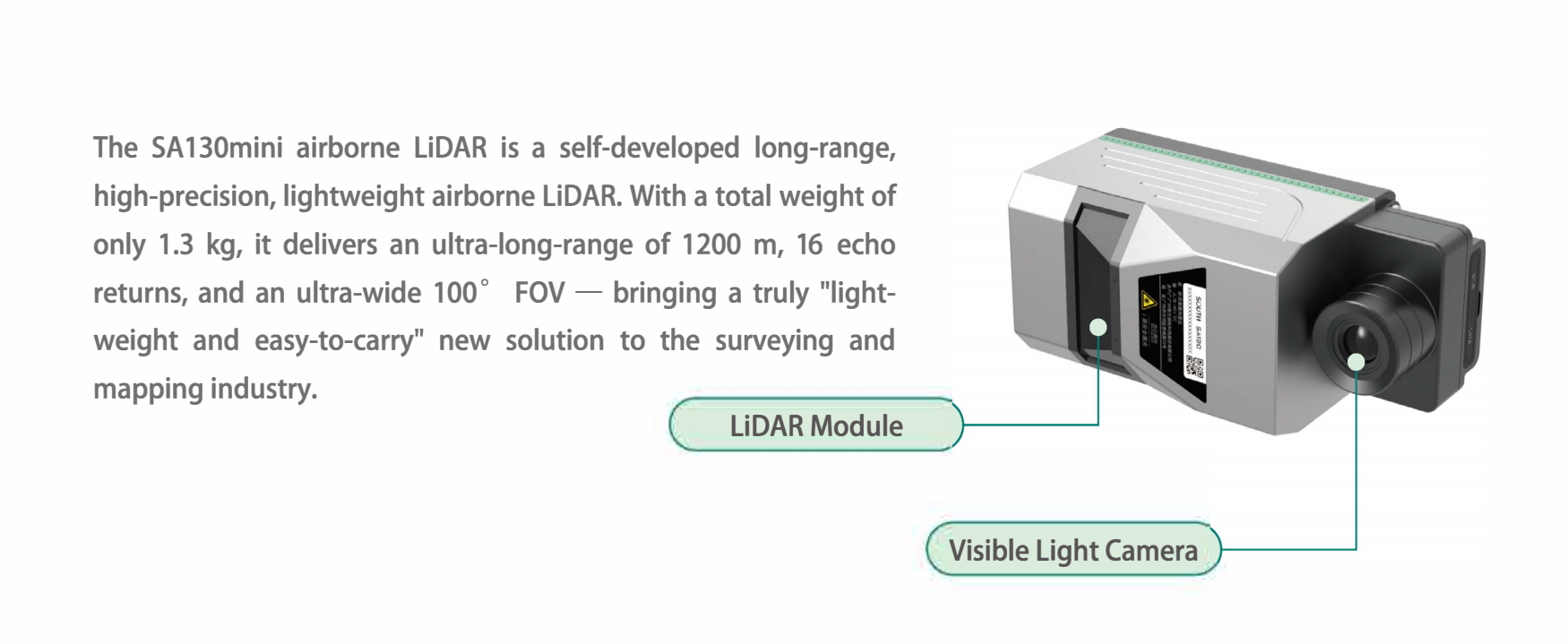

    ScreenShot_2026-10-08_152752_639







    Specification

    System
    Performance    		 GNSS BDS B1I, B3I,B1C*,B2a,B2b*GPS L1C/A, L2P(Y)/L2C, L5SBAS L1C/AQZSS L L1C/B, L2C, L5, L6* GLONASS G1, G2 Gallleo E1, E5a, E5b,E6*
    Weight 1.3kg
    System Accuracy 5cm@300m
    Dimension 180 X 116.5 X 87.2 mm (incl. quick-release interface)
    Ingress Protection IP64
    Power Consumption 40 W
    Scanner Sensor Laser Range 1200 m
    Ranging Accuracy 15 mm/5 mm @150m
    Line Scan Rate 255 beams/sec
    Scan Frequency 2000 kHz max.
    Scan FOV 100°
    downward
    Echo Returns 16 returns
    Laser Class Class1,(IEC 60825-1:2014), eye-safe
    POS Refesh Rate 500Hz
    Angular Accuracy Roll/Pitch: 0.006° ; Heading: 0.019°
    (Post-Processed)
    Positional Accuracy H.:0.01m;V.:0.02m (Post-Processed)
    RGB Camera Option 2 Models
    Resolution 45 MP/26MP
    Focal Length 18 mm/16 mm
    Sensor Size 36 x 24 mm/23.5 x 15.6mm
    FOV 90° /73°
    GSD 4.9cm/4.7cm@200m
    whole machine workingtemperature -20°Cto-55°C

    1245
