KOOL Handheld 3D Laser Scanner

    Model: KOOL Handheld 3D Laser Scanner

    Download:

    KOOL Handheld 3D Laser Scanner Brochure

    Features

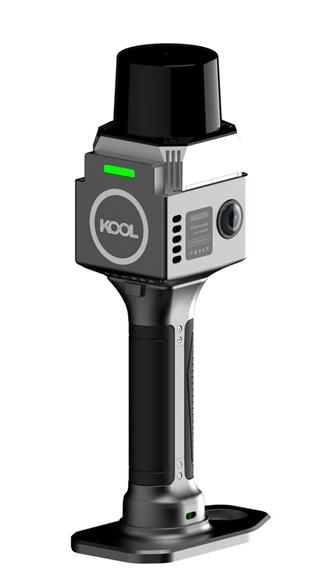

    Lightweight by Design, Ready for the Field


    Weighing only 1.12 kg, KOOL brings high-performance 3D scanning into a compact handheld form.

    The quick-release handgrip and 150-minute operating time support efficient mobile data capture across indoor and outdoor sites.

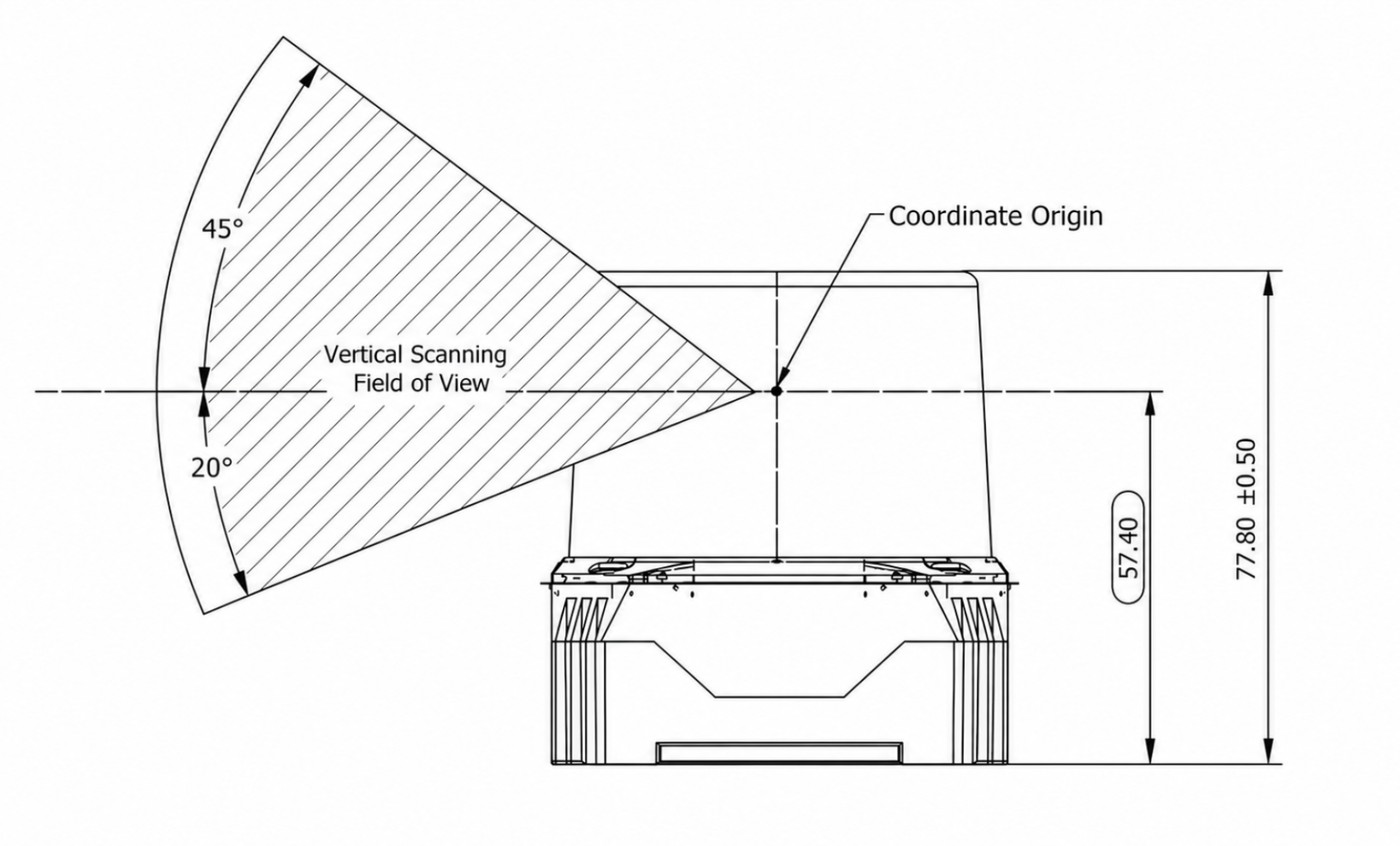

    Ultra-Wide Field of View


    With a 360° horizontal and 130° vertical field of view, KOOL captures rich spatial data as you move.

    Its scanning range reaches up to 40 m on low-reflectivity targets and up to 100 m on high-reflectivity targets.

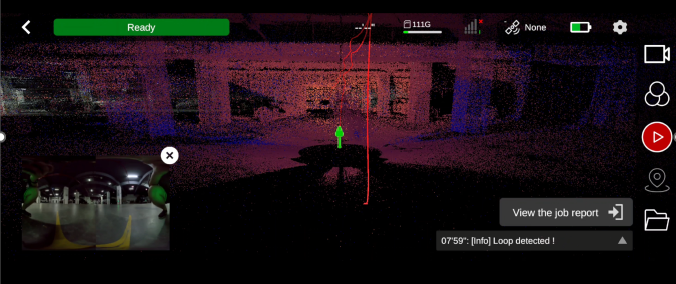

     Real-Time Scanning Feedback


    MapStar displays panoramic imagery, true-color point clouds and the scanning trajectory in real time,

    allowing users to check coverage and data quality while working in the field.

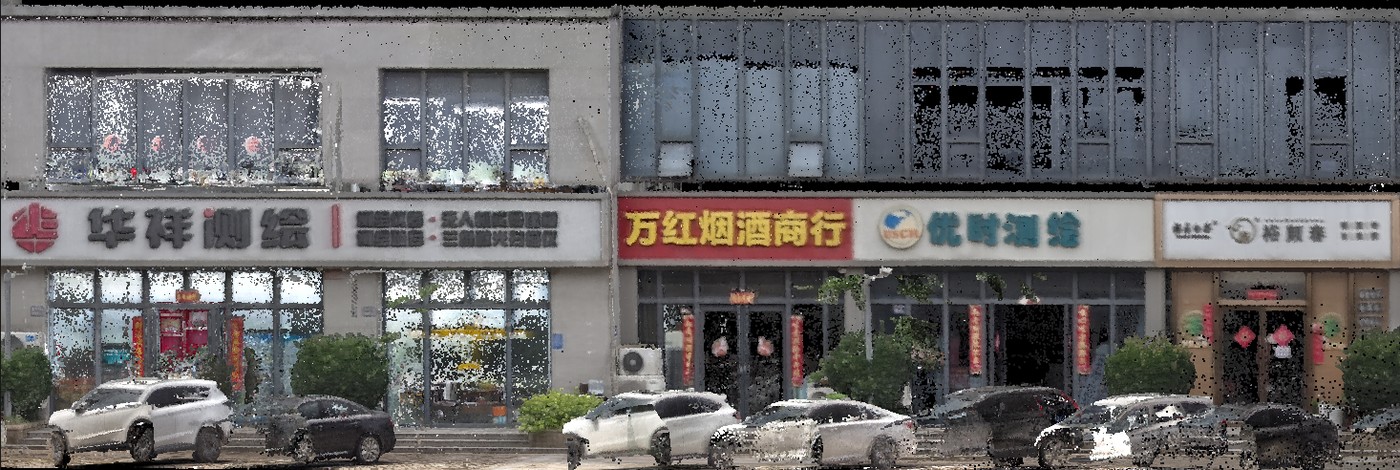

    High-Fidelity Point Cloud Colorization


    Equipped with dual 12 MP cameras, KOOL produces high-fidelity colored point clouds that make scanned objects easier to recognize, inspect and present.

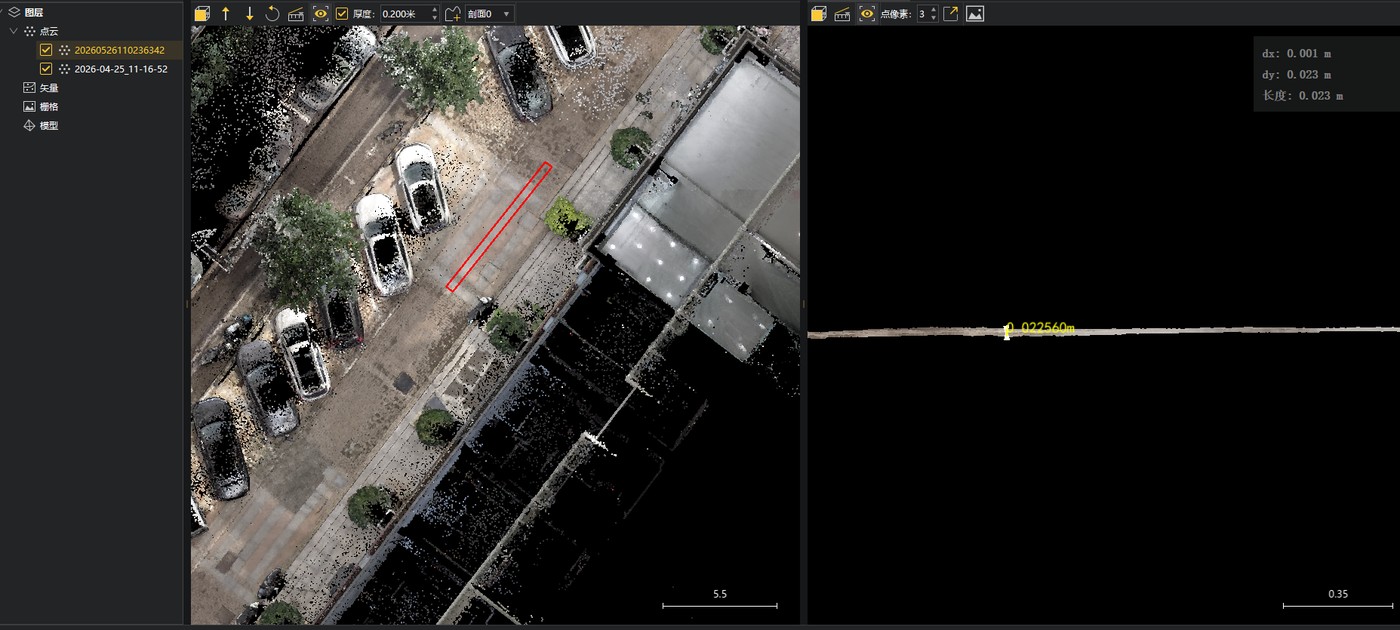

    Reliable Centimeter-Level Accuracy


    KOOL delivers relative accuracy of 1 cm or better, providing clean and reliable point-cloud geometry for measurement, drafting, modeling and inspection.

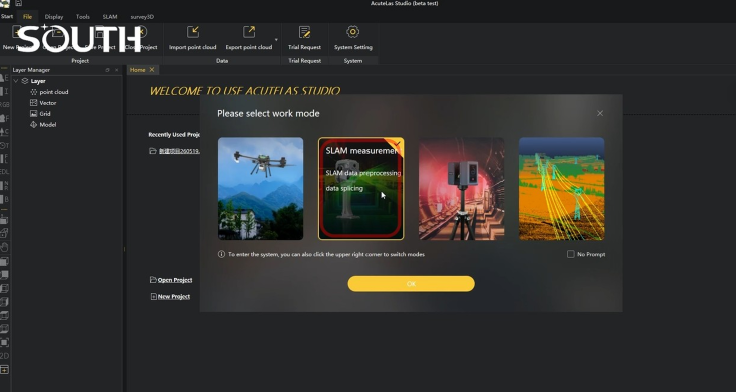

    One-Click Automated Processing


    AcuteLas Studio streamlines trajectory computation, point-cloud registration and result generation.

    It supports Pure SLAM, GCP, PPK and RTK processing modes for different project requirements.







    Applications

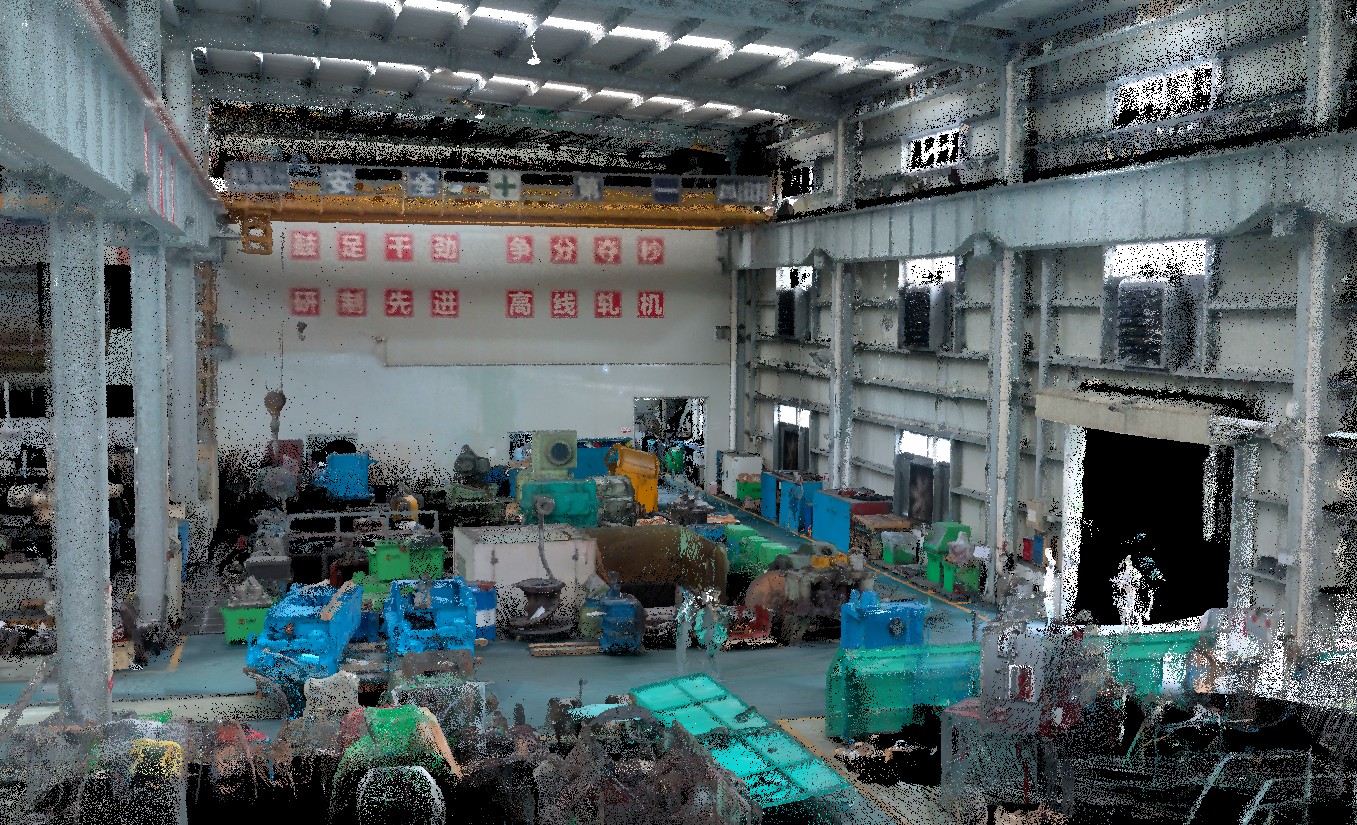

     Industrial Plant Scanning and 3D Modeling


    KOOL efficiently captures machinery, pipework and complex plant structures, providing accurate point clouds for as-built documentation, equipment layout, retrofit planning and 3D modeling.

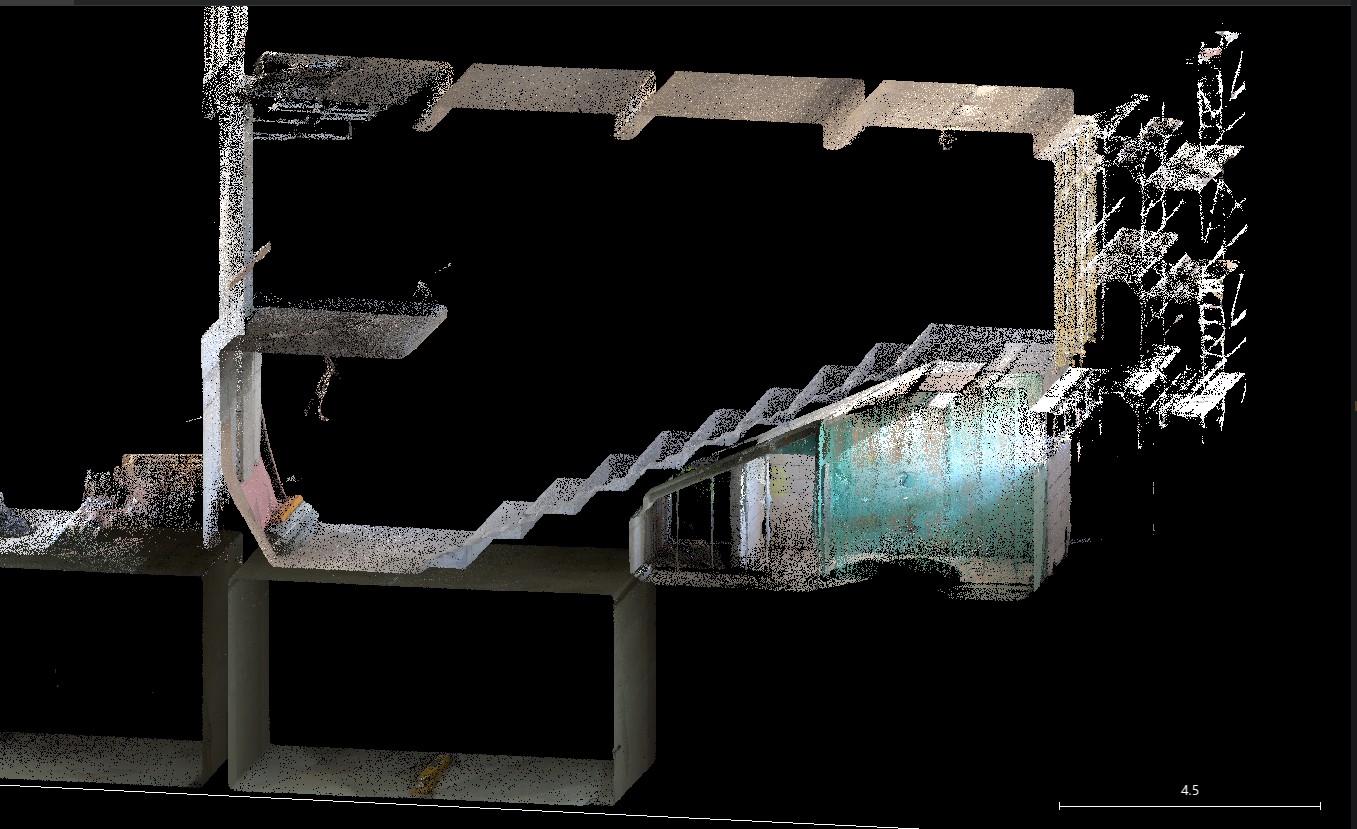

     Construction Sites and Underground Spaces


    KOOL can rapidly document construction areas, basements, corridors and other GNSS-denied spaces,

    supporting progress records, spatial verification and complete site documentation.

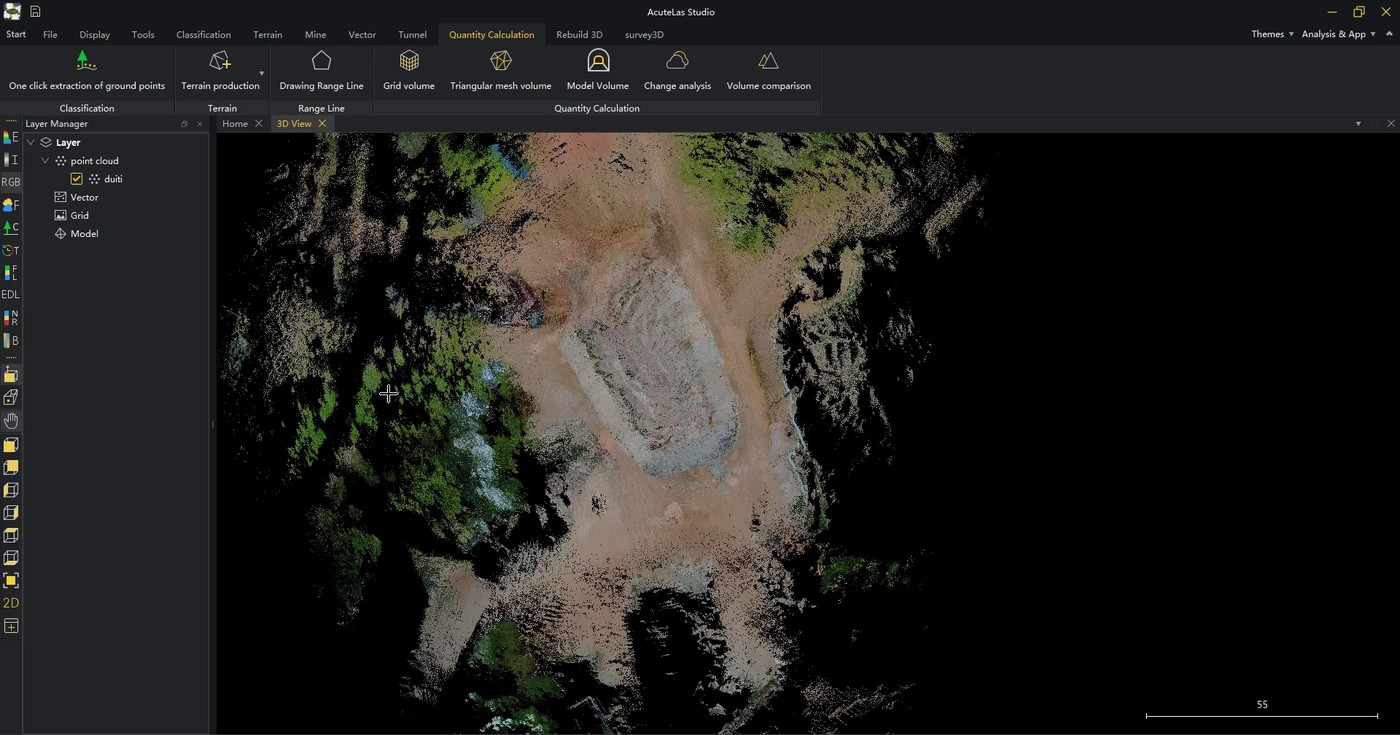

    Earthwork and Stockpile Volume Calculation


    Users can scan terrain and stockpiles with KOOL and calculate volumes in AcuteLas Studio, creating an efficient workflow from field data capture to earthwork results.

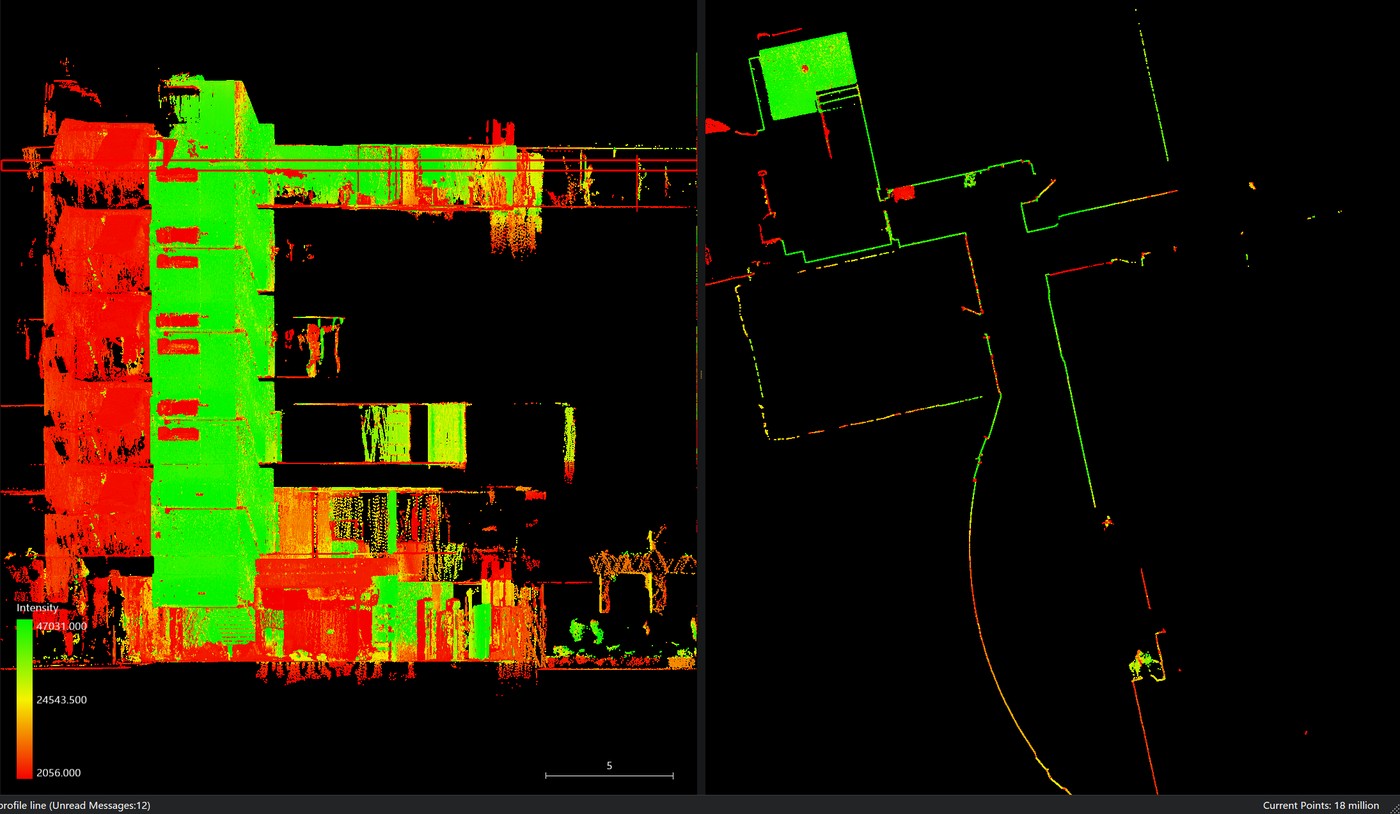

    Architecture and As-Built Documentation


    KOOL captures complete building and interior data for renovation, facility management and design.

    Point clouds can be used to generate plans, elevations, sections and 3D models.

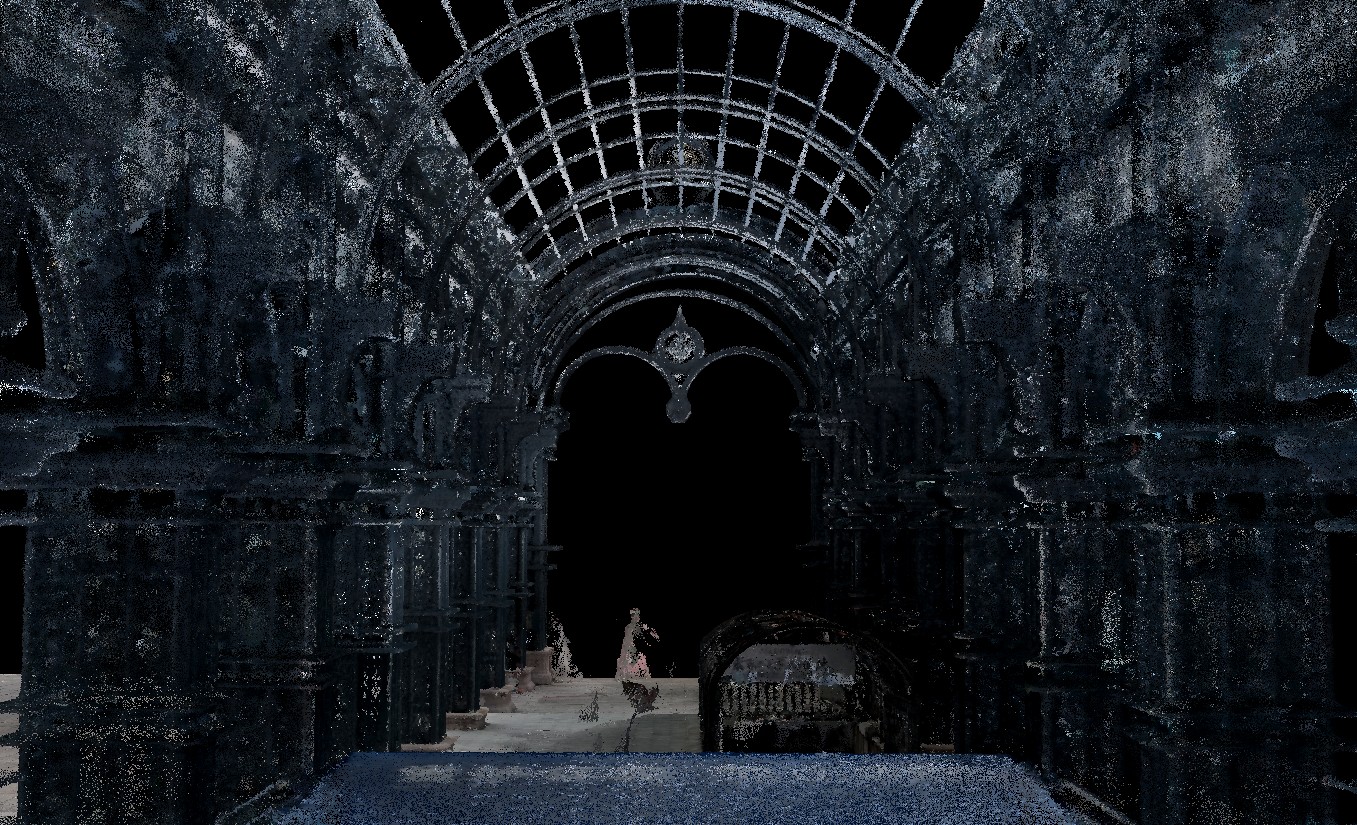

    Heritage and Complex Architecture Documentation


    KOOL records detailed geometry and color without physical contact, making it suitable for historic buildings, ornate interiors, restoration planning and digital archiving.

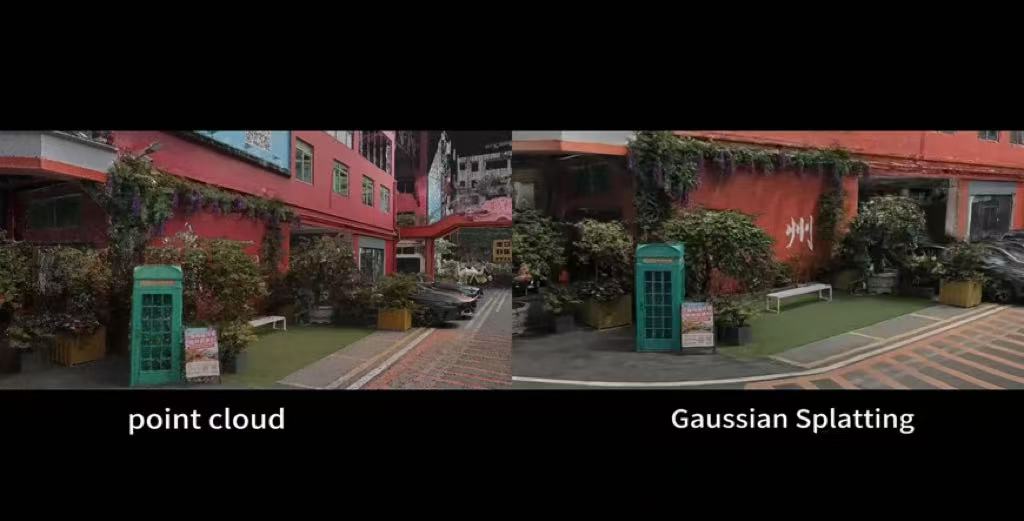

      Immersive 3D Visualization


    True-color point clouds can be transformed into mesh and Gaussian Splatting models for virtual tours, cultural display, design communication and project presentation.



    Specification

    KOOL Handheld 3D Laser Scanner Scan Range 0.1-40m @10% reflectivity; 0.1-100m @90% reflectivity
    FOV 360°(H.)x130°(V.) optimized for data redundancy
    Scanner Sensor
    		 Mixed solid-state laser with stable internal structure
    Mapping Method
    		 SLAM, with realtime point cloud display
    Process Mode Realtime and post-process both
    Scan Rate 200,000 pts/sec (equivalent to 1.2 million pts/sec resulted from non-repetitive scanning and exclusive vari-frequency tech)
    Laser Class Class-1 eye-safety
    Camera Lens 2x 12MP
    Fieldwork Control MapStar
    Data Process AcuteLas Studio
    Accuracy Performance ≤1cm relative accuracy
    Geo-referencing Control points establishment for localization
    Power Supply Handgrip battery, 3,150mAh, 45.36Wh
    Power Consumption 23W
    Endurance 150 min
    Data Management
    		 TF card and Type-C
    Memory Capacity
    		 128 GB, expandable
    Ingress Protection
    		 IP5X
    Net Weight
    		 1.12 kg
    Dimension 111x222x33 mm
    Working Temperature -20℃ to 45℃
    Storage Temperature
    		 -20℃ to 45℃

    Note: 1. Non-repetitive scanning refers to the effective global covered point clouds in the even and random mode, and the line-spacing and blind spots from the conventional fixed laser beams would not exist. Therefore, it enjoys much fewer data gaps and better data integrity even in motion. 2. Optimized FOV directly results in much less repetitive scanning and fewer data gaps. When it comes with non-repetitive scanning, the point cloud data enjoys a much smaller size and faster processing. 3. All information herewith is subject to change without any prior notice.
