Model: T400
Features
Applications
Specification

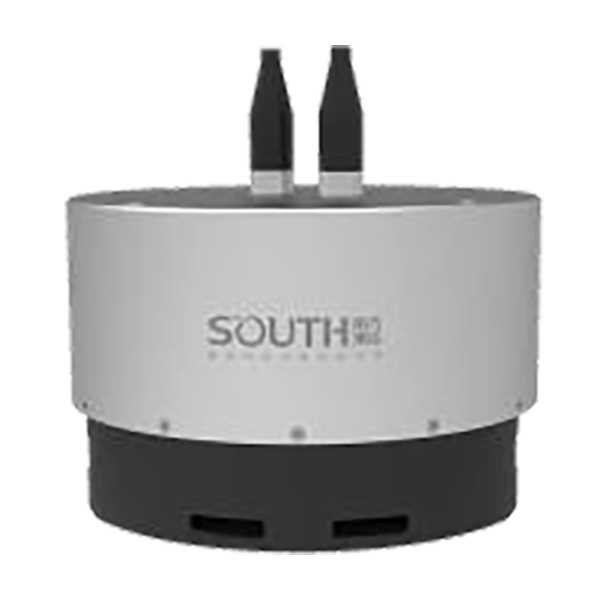

The revolutionary T400 focuses on intelligent, integrated and high precision of multibeam echosounder system. Its ultra-compact design can be easily operated by one person and suitable for USV, ROV, AUV platforms.
The number of 1024 sounding beams can provide you with high precision measurement result. Because of IMU built-in receiver, this system does not need calibration. With low power consumption, it is also suitable to operate from battery.
T400, small, lightweight and cost-effective could be your best choice.
• Bathymetry
• Pipeline Surveys
• River, Estuary, Channel and Pond Surveys
• Harbor and Coastline Surveys
• USV, ROV & AUV Integrated
• Geological Survey
• Search and Rescure
Sonar parameters | Model | T400 |
Frequency | 400kHz | |
Swath Coverage | Up to 140° | |
Beam Width | 2°(TX) *1°(RX) | |
Number of Soundings | 1024 soundings | |
Depth Range | 0.2-150m | |
Depth Resolution | 0.75cm | |
Beam Patterns | Equidistant and high density | |
Ping Rate | Up to 60 Hz | |
Signal Form | CW/FM | |
Pulse Width | 17μs -2ms | |
Depth Rating (Sonar head) | 50m | |
Roll Stabilization | ±10° | |
Installation Calibration | Free | |
Side scan | Support | |
Real-time Roll Stability | Support | |
Heading Accuracy(GNSS) | 0.1° (2m baseline) | |
Roll/Pitch Accuracy | 0.05° | |
Horizontal Accuracy | 2cm+1ppm(RTK) 0.6m(SBAS) | |
Heave Accuracy | 5cm/5% | |
Electric Parameter | Power Supply | DC18-36V (Type:24V) C AC100-240V |
Power | 60W | |
Output Interface | LAN Port*1 3.3V TTL*1 RS232*1 |
|
Cable Length | 15m(Customized) | |
Projector Size | 220mm×89mm×88mm | |
Receiver Size | 128mm×80mm×88mm | |
Sonar Process Unit | 196mm×142mm×73mm | |
Sonar Process Unit | 1.55Kg | |
Projector and Receiver | 5Kg | |
Operation Temperature | -2°C~40°C | |
Storage Temperature | -20°C~55°C | |
Software | Onboard data collection and diaplay software Onboard data process software |
Note: all information above is subject to change without any prior notice.
