UAV Automation & Parking System FlyAuto 01

    ● Automated Flight Operation. ● Automated Battery Replacement. ● Automated Battery Charging. ● 24x7 Realtime Monitoring.

Model: UAV Automation & Parking System FlyAuto 01

Features

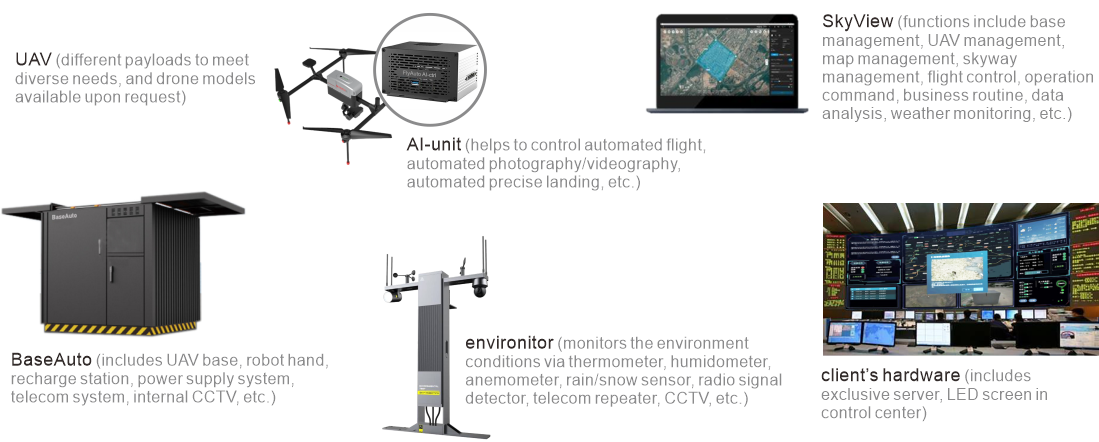

COMPONENTS

UAV Automation & Parking System FlyAuto 01b

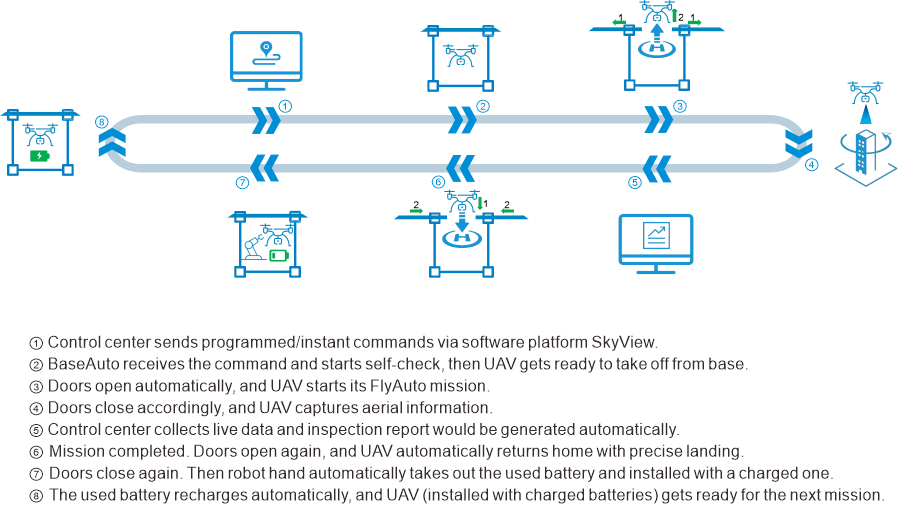

WORKFLOW


UAV Automation & Parking System FlyAuto 01c

Applications

UAV Automation & Parking System FlyAuto 01a

Specification

BaseAuto Base Dimension 1660x1620x1300 mm (when closed); 3200x1620x1300 mm (when open)
Base Weight 650 kg
UAV Option DJI M300RTK or others (available upon request)
Work Mode automated battery replacement, automated battery charging
Battery Replacement Time <1 min
Operation Interval 3 min
Work Hours daytime / nighttime
Electrical Devices robot hand, battery station, precise landing control system, airport cabin door
Battery Station accommodates max. 4 groups of battery
Landing Control within 10 cm
Base Coverage typical 15 km radius
Data Communication broadband/OPGW/4G/5G
Power Supply 220V DC
Power Consumption average 500 W; max. 1700 W
Operating Temperature -20 ~ 50 ℃
Ingress Protection IP 54
Environitor Monitoring Purpose wind speed, wind direction, rainfall, temperature, humidity, air pressure, etc.
Device Dimension 1800 x 300 x 400 mm
Device Weight 50 kg
CCTV Monitoring 1080 P
Radio Signal Detection 360°, radius 2 km (this module as an option)
Network Interface RJ 45
Power Supply 24V DC
Power Consumption 50 W
Ingress Protection IP 66
Configuration:Desktop Monitor double or triple screen display
Operating System Windows 10
CPU Intel Core i5 or above
HDD 1 TB or above
SSD 256 GB or above
RAM 16 GB or above
Graphic Card discrete, NVIDIA 8 GB or above
Configuration:Server Monitor --
Operating System Windows Server 2008 or above
CPU 8-core & 16-thread or above
HDD 2 TB or above
SSD 256 GB or above
RAM 16 GB or above
Graphic Card discrete, NVIDIA 8 GB or above

Note: all information above is subject to change without any prior notice.
