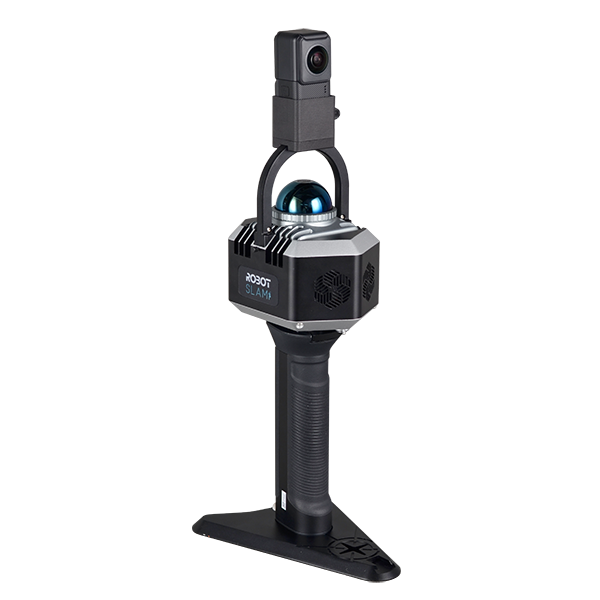

RobotSLAM Lite Handheld 3D Laser Scanner

A compact unit, 1.29kg only Live cloud and trajectory Max. measuring range 70m One-key to color point cloud

Model: RobotSLAM Lite

Download:

RobotSLAM Lite Handheld 3D Laser Scanner Brochure (V.202401)

Features
Applications
Specification

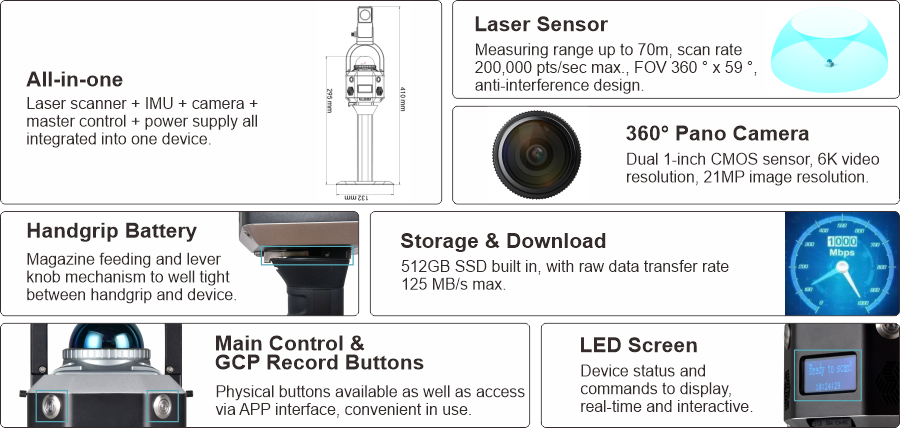

Features

web

Applications

web 2

Specification

RobotSLAM	Model	RobotSLAM Lite
	Laser Wavelength	905 nm
	Laser Safety Class	CLASS 1 (IEC 60825-1:2014), eye-safe
	FOV	horizontal 360°, vertical -7°~52°
	Measuring Range	0.1~70 m (70 m @80% reflectivity; 40 m @10% reflectivity)
	Measurement Rate	200,000 pts/sec
	Scanning Rate	10 Hz
	IMU Module	built in, with push frequency 200 Hz (when enabled)
	Anti-interference	available
	Temperature	-20℃～65℃ (operating)，-40℃～70℃ (storage)
	IP Protection	IP 67
	Dimension	180x132x312 mm (w/o camera); 180x132x386 mm (with camera)
	Weight	1.29kg
	Power Supply	handheld grip with inbuilt battery, cable-free connection
	Endurance	2~2.5 hours
	Input Voltage	DC 9~27 V
	LED Screen	available
	Relative Accuracy	best up to 1 cm
	Realtime Point Cloud	available
	Realtime Trajectory	available
	Pano Camera	external, Pano360 II, 2-lens fisheye 360°, 21 MP in total
	Software	RobotSLAM Palm (smartphone APP) RobotSLAM Engine (PC)

Note: all information above is subject to change without any prior notice.
