UAV Fly2Map Series - SkyCruiser VTOL Family

Model: Rapido/Domino/Diverso

Download:

Fly2Map Series - SkyCruiser VTOL Family Brochure

Features
Specification

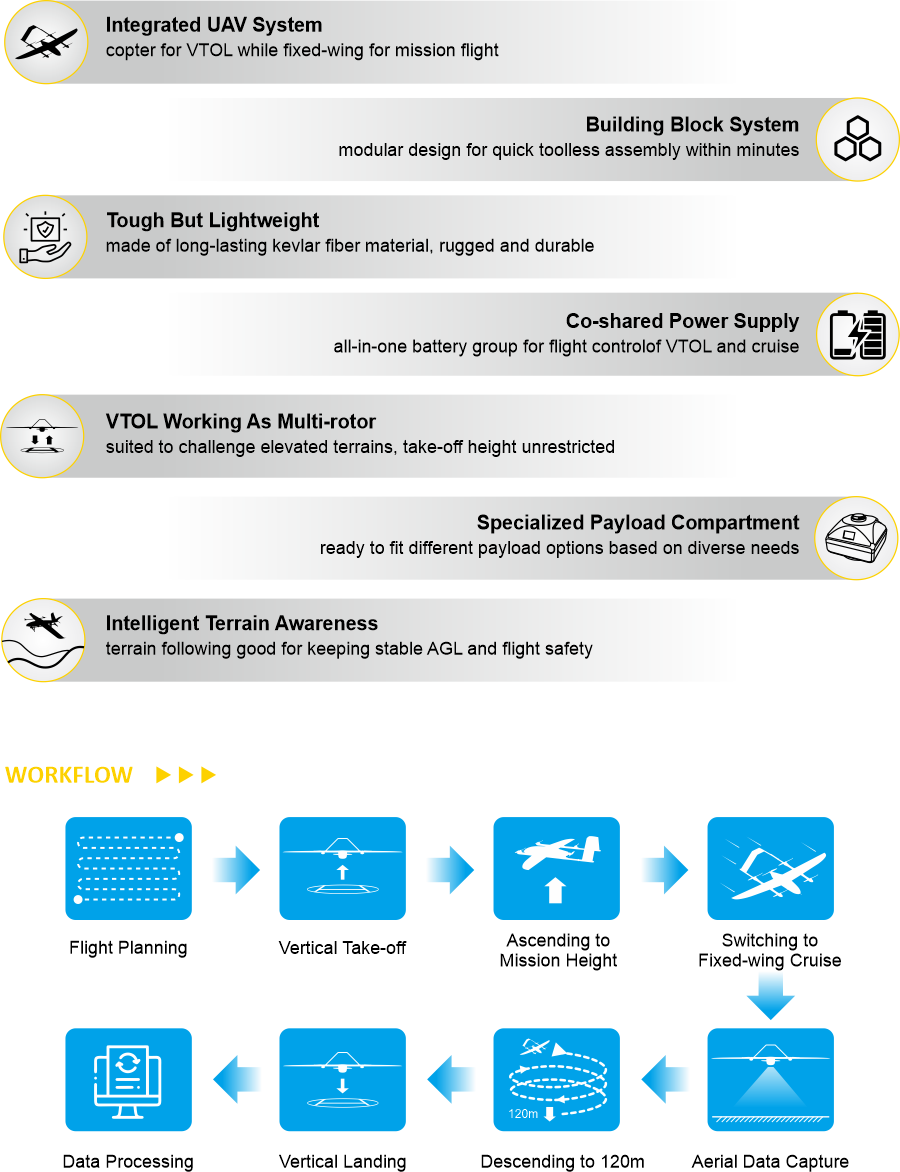

Features

Fly2Map Series - SkyCruiser VTOL Family 202411

Specification

Fly2Map Series - SkyCruiser VTOL Family	Dimension	Rapido: 2400x1150x370 mm Domino: 3378x1500x500 mm Diverso: 4128x1927x749 mm
	Max. Payload Capacity	Rapido: 1.3 kg Domino: 5 kg Diverso: 10 kg
	Max. Ceiling	Rapido: 4000 m ASL Domino: 4500 m ASL Diverso: 4200 m ASL
	Max. Cruising Speed	Rapido: 110 km/h Domino: 130 km/h Diverso: 130 km/h
	Regular Cruising Speed	Rapido: 70 km/h Domino: 70 km/h Diverso: 72 km/h
	Max. Cruise Range	Rapido: 210 km Domino: 245 km Diverso: 280 km
	Flight Endurance	Rapido: 120 min Domino: 210 min Diverso: 240 min
	Wind Resistance	beaudfort scale 6
	Airborne GNSS Module	GPS + Glonass + Galileo + Beidou tracking, for RTK/PPK
	Airborne GNSS Accuracy	1cm±1ppm when fixed
	Payload Option	Rapido: RGB full framer S61, Multi-lens T53P Domino: RGB full framer S61, Multi-lens T53P, Multi-lens Q51 Diverso: RGB full framer S61, Multi-lens T53P, Multi-lens Q51, Infrared Thermal S640, Airborne LiDAR SAL-1500

Note: all information above is subject to change without any prior notice.
