UAV Fly2Map Series - SF1200

    Model: SF1200

    Download:

    UAV Fly2Map Series - SF1200 Brochure

    Features

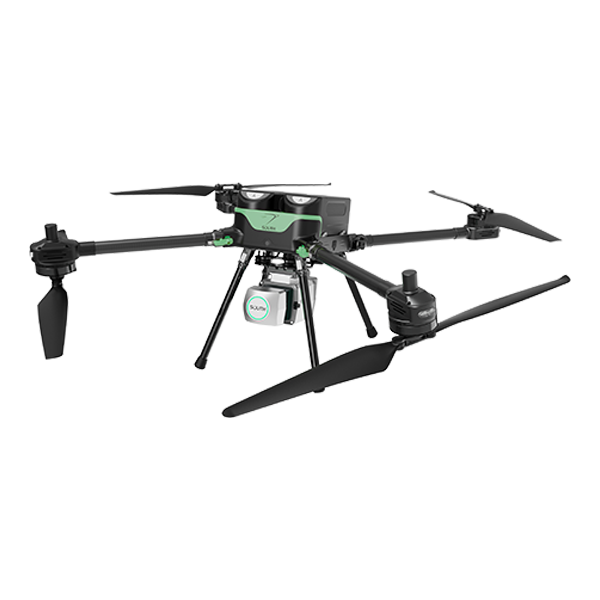

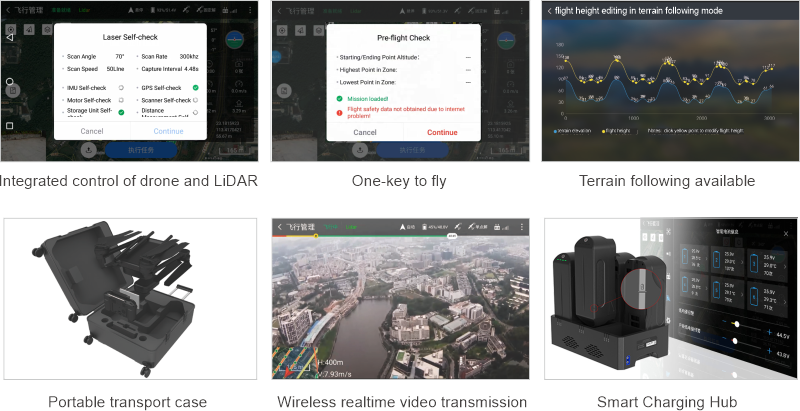

    SOUTH Quadcopter SF1200 has long induration time, obstacle avoidance, and terrain-following functions, it realizes the integrated control of drone and LiDAR, one-key to take off and don’t need laptops to control or set LiDAR parameters any more before take off.


    SF1200



    Supports multiple mounts，cable-free

    SF1200 1

    Specification

    SF1200 Diagonal wheelbase 1.15 m(±0.01 m)
    Dimension Packing size: 570*520*260 mm
    Unfold size: 920*920*440 mm
    Takeoff weight(w/o payload) 12 kg
    Maximum payload 4 kg
    Duration time 60 min w/o payload;
    50 min with 3 kg payload
    Max. climbing speed 5 m/s
    Min. descending speed 5 m/s
    Velocity Max cruising 18 m/s
    Maximum ceiling >4500 m
    Wind resistance Beaufort scale 5
    Radio datalink range 10 km
    Positioning accuracy H: ±1 cm+1 ppm
    V: ±2 cm+1 ppm
    Differential mode RTK/PPK
    Working temperature -20℃~+50℃

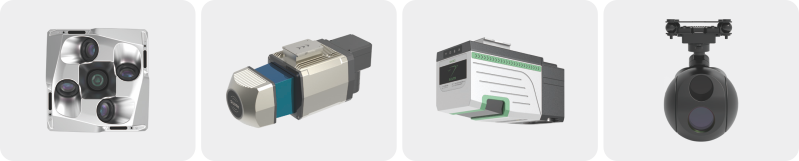

    Payload type RGB camera, 5-Lens camera, LiDAR
    Terrain following function Available
    Obstacle avoidance Forward 40 m, millimeter-wave radar detection

    839
