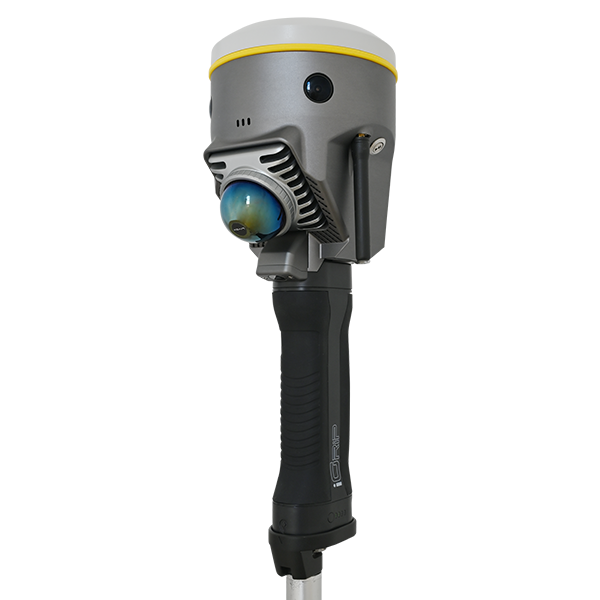

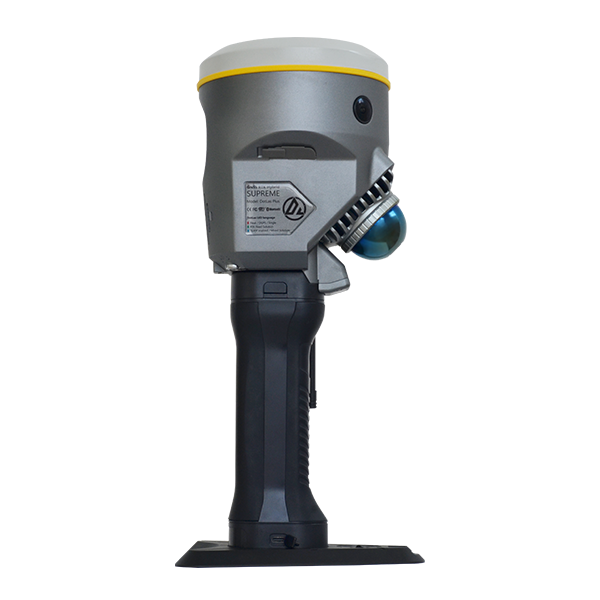

GNSS RTK Hybrid Supreme DotLas Plus

    Model: DotLas Plus

    Download:

    GNSS RTK Hybrid Supreme DotLas Plus Brochure

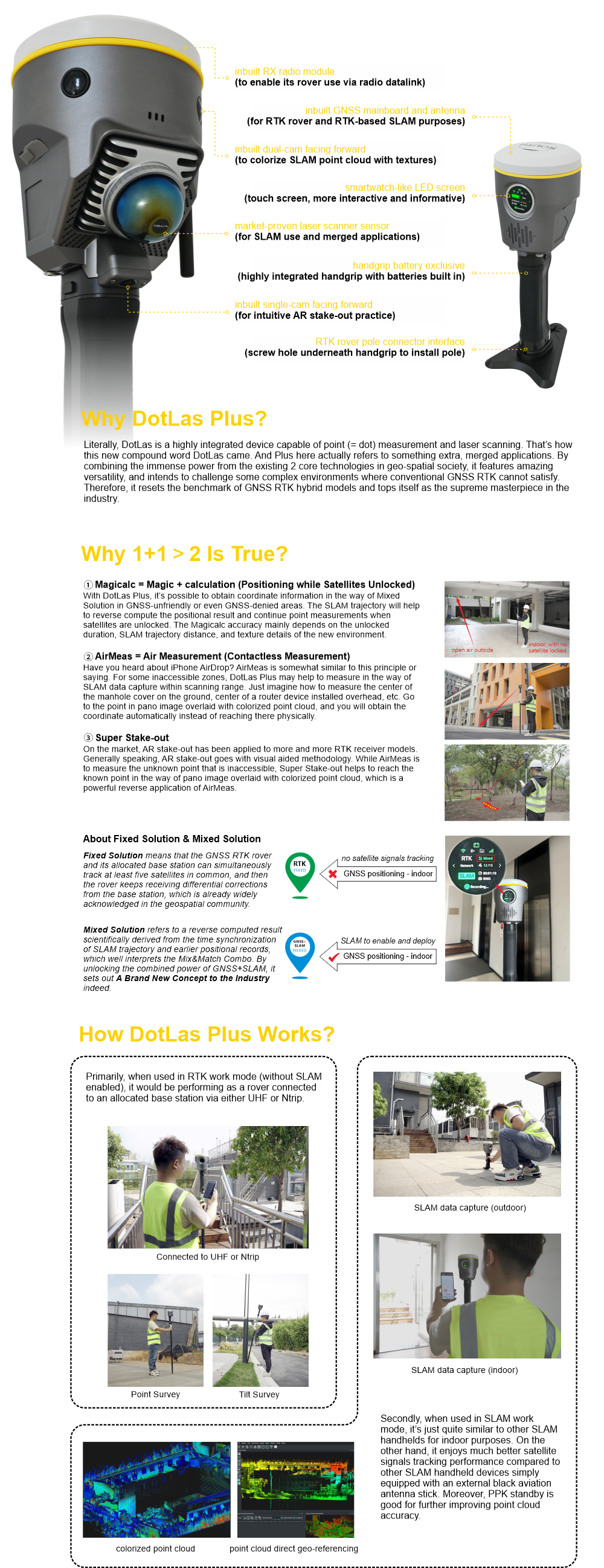

    Features

    web

    Specification

    GENERAL Model DotLas Plus
    Series RobotSLAM
    Functionality SLAM-based RTK, RTK-based SLAM, and merged applications all-round
    Type GNSS RTK hybrid supreme
    Component built in with GNSS mainboard, SLAM scanner, camera lenses, temperature sensor, IMU, smartwatch-like LED screen, etc.
    PHYSICAL Dimension 120x120x340 mm (LxWxH)
    Net Weight 1.4 kg (battery handgrip excluded); 1.8 kg (battery handgrip inclusive)
    Camera (for SLAM) horizontal and forward, pixel size 2.0 μm, FOV 210°x120°, resolution 10 MP in total (5 MP x2), imaging effect best up to 20 MP
    Camera (for GNSS) downward, resolution 2 MP x1, FOV 75°
    Laser Scanner Livox Mid-360 built in, 3D mixed solid-state sensor, 40 channels
    Data Download Type-C and Ethernet interfacing
    LEMO Interfacing LAN1 (7-pin) and LAN2 (9-pin), for debugging and RS232 data transfer, etc.
    Temperature Sensor built in, intelligent variable frequency temperature control, realtime monitors and regulates device temperature
    IMU Module built in for GNSS, and supports tilt survey option, Linux OS

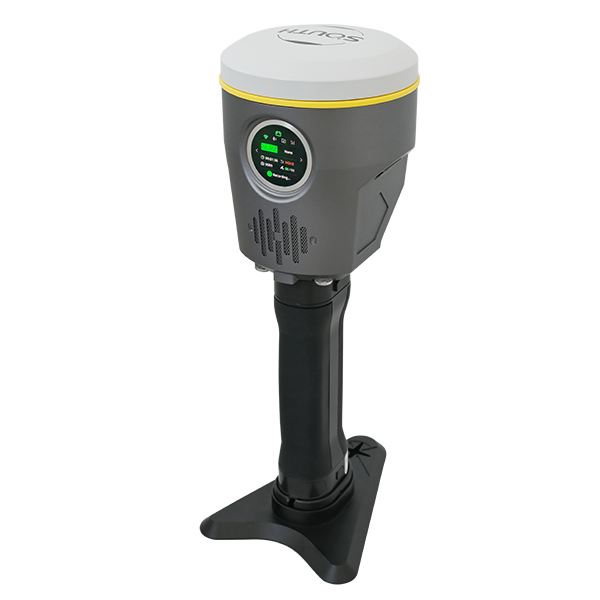

    LED Screen smartwatch-like, round face, 1.39-inch, resolution 454x454
    Wi-Fi Module built in and serves as a Wi-Fi hotspot source, accessible to any smart device for configuration
    Network Telecom SIM card slot built in, Nano SIM
    Radio Wireless radio antenna interfacing SMA
    ELECTRICAL Power Supply battery handgrip unit, model: iGrip, 50 Wh, 3500 mAh
    Endurance ≥2 hours
    Power Consumption 26 W
    Charging charging time 2 hours, type-C recharge, max. current 3 A
    Input Voltage nominal 14.4 V
    Power Output charging 30 W max. current 5 A max.
    ENVIRONMENTAL Working Temperature -20 ~ 50 ℃
    Storage Temperature -20 ~ 60 ℃
    Operating Humidity 80% non-condensing
    Ingress Protection IP64 rating according to IEC 60529
    COMMUNICATION Screen Operation touch operation, for mode setting and status display
    Wi-Fi Datalink device may access to Wi-Fi for transmit and receive differential corrections
    Web Interaction Web UI management platform built in, accessible to device for relatime monitoring device status and device configuration via Wi-Fi and USB
    Audio Messaging iVoice smart audio technology on board, for smart status broadcasting and voice instructions
    Voice Language supports Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish as default
    Radio Datalink RX radio module built in, working frequency 410-470 MHz, protocol Farlink, SOUTH, TrimTalk450S, ZHD, HUACE
    Bluetooth BT4.2 (BR/EDR+BLE) standard automatic Bluetooth pairing between device and controller by touch (NFC module on board
    NFC Wireless is needed for controller side)
    WLAN 802.11b/g/n standard
    DATA MANAGEMENT Data Transfer USB, FTP, and HTTP
    Data Storage SSD 4 GB (for GNSS) and 512 GB (for SLAM) built in, extendable to 1 TB max.
    Data Format Static: South STH, Rinex2, Rinex3.02, etc.
    Differential: RTCM3.0, RTCM3.2 input and output
    GPS output: NMEA0183, PJK plane coordinate, binary code
    Network module: VRS, FKP, MAC, N-Trip
    SOFTWARE GNSS Fieldwork SurvStar
    Fieldwork Partner smartphone recommended (instead of regular data logger)
    SLAM Fieldwork SurvStar
    SLAM Pre-proces RobotSLAM Engine

    Note: all information above is subject to change without any prior notice.
