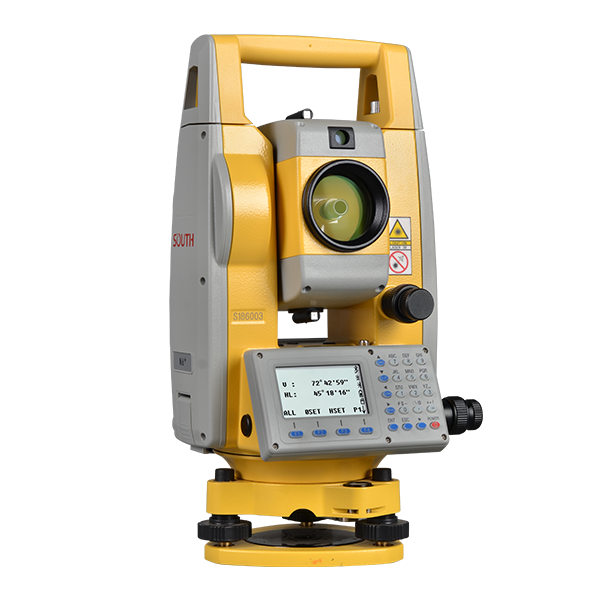

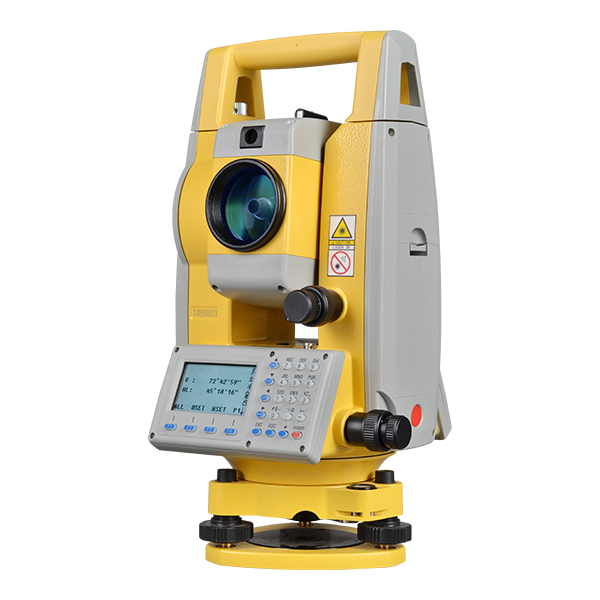

N6 Series

    ● 2" / 5" Accuracy ● Long-Range Prism (5000m) and Non-Prism (1000m/1500m) EDM ● Trigger Key, Hot key for faster operation ● Cable-Free Connection by Wireless Bluetooth or USB Stick ● Bigger internal memory, Save 96000 data block ● Longer operation Time up to 10 hours per battery

Model: N6+ /N6H / N6s

Download:

N6s N6+；N6H

Features

What is new for N6 series

Outstanding Performance and Versatile Functions


N6 Series 24-08


Specification

Distance Measurement Reflector Range 5000m*¹
Reflectorless*² Range 1000m or 1500m
Accuracy Reflector: ±(2+2ppm x D)mm
Reflectorless: ±(3+2ppm x D)mm
Measuring Interval With Reflector: Fine < 0.3s, Tracking < 0.1s
Without Reflector: 0.3s-3s*³
Others EDM Type: Coaxial
Minimum Reading: 0.1mm
Unit: Meter/ US.Feet/ Int.Feet/ Feet-inch
Angle Measurement Accuracy 2” or 5”
Reading System Absolute Encoding
Circle Diameter 79mm
Minimum Increment 1”/5”
Detection Method Horizontal: Dual, Vertical: Dual
Telescope Image





 Erect
Tube Length 154mm
Effective Aperture 45mm (EDM:50MM)
Magnification 30x
Field of View 1°30’
Minimum Focus Distance 1.2m
Resolving Power 3”
Tilt Sensor System Dual Axis Liquid-Electric
Working Range ±4’
Accuracy 1”
Communications Communication Ports USB Port
Data Interface USB Stick, Bluetooth
Effective Range of Bluetooth 10m
Plummet Laser Plummet ±1.5mm at 1.5m
Optical Plummet (Optional) Erect Image
Magnification 3 X
Focusing Range 0.5m~∞
Field of View 5°
Auto Height Working Range N6+: --
N6H: 0.5-3m
Min. Reading N6+: --
N6H: 1mm
Accuracy N6+: --
N6H: ±1.5mm
Guide Light Type

 LED
Wavelength Red 635nm/ Green 590nm
Effective Range 200m
Power Type Rechargeable Lithium battery
Voltage 7.4V DC, 5000mAH
Operating Time 16 Hours*⁴
Level Vials Plate Vial 30”/2mm
Circular Vial 8’/2mm
Others Dust and Water Protection IP55
Display Dual Side, LCD 6 Lines
Keyboard Alphanumeric 24 Keys
Operating Temperature -20°C ~ +50°C
Atmosphere Correction Manual Input, Auto Correction
Earth Curvature Correction Manual Input, Auto Correction
Prism Constant Manual Input, Auto Correction
Dimension 190mm x 195mm x 335mm
Weight (approx..) 5.5kg

*1. Good Conditions: good visibility about 20km, overcast, no scintillation. *2. Under Kodak Gray (90%). Measuring distance may vary depending on targets and the conditions. *3. Measuring time may vary depending on measure distance and conditions. For the initial measurement, it may take a longer time. *4. Battery life specification at 25℃ . It might be shorter in low temperature or if the battery is old. Note: all information above is subject to change without any prior notice.
