N8 Series

    ● World’s First! Dual-Laser Technology ● 2” Accuracy, Up to 2000m Non-Prism EDM ● Ultra-Fast Measurement in 0.3s ● 2.7 Inch Highlighted Screen, Easy to Read ● Cable-Free Connection by Wireless Bluetooth

Model: N8/N80

Download:

N8/N80 Brochure

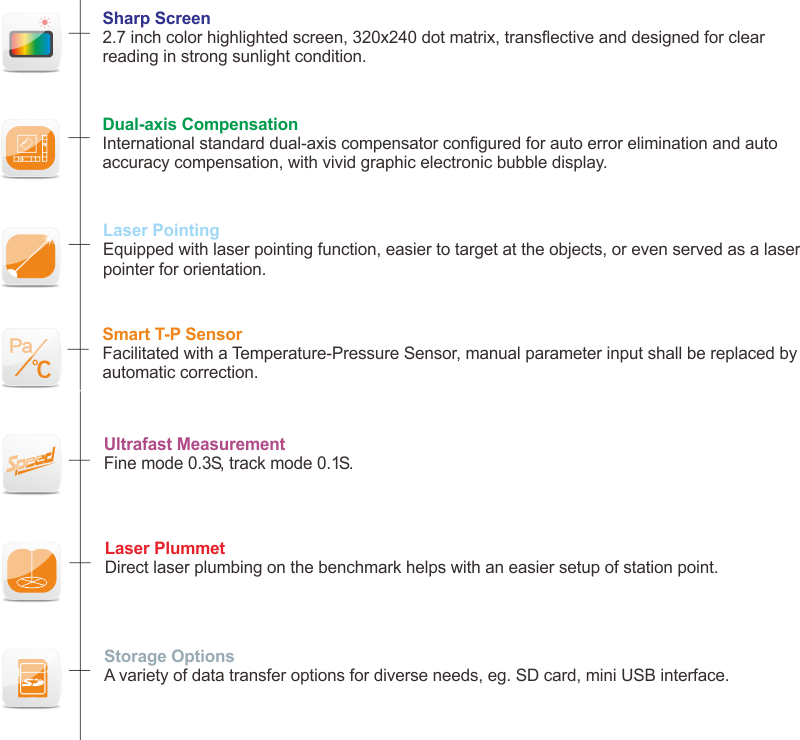

Features

1

Specification

Distance Measurement Reflectorless 1000 /1500 /2000m
Single Prism 5000m
Accuracy: Non Prism 3+2ppm
Accuracy: Prism 2+2ppm
Sheet 2+2ppm
Measurement Time 0.3s In Fine
0.1s In Tracking
Atmospheric Correction Manual Input, Auto Correction
Prism Constant Manual Input, Auto Correction
Temperature Correction Sensor Reading
Distance Reading Max: 99999999.9999m Min: 0.1mm
Angle Measurement Accuracy 2"
Method Absolute, Continuous
Disk Diameter 79mm
Detection Method V: Dual, H: Dual
Angle Reading Min: 0.1"
Telescope Image Erect
Tube Length 154mm
Effective Aperture 45mm (EDM 50mm)
Magnification 30x
Field Of View 1°30'
Resolving Power 3"
Minimum Focus Distance 1.2m
Reticle Illumination 4 Brightness Levels
Keyboard And Display Keyboard Alphanumeric 28 Keys
Display 2.7 Inches, Color Screen
Resolution 320*240 dpi
Position Face 1, Face 2
Operation System Operation System None
Processor None
Memory 32000 Points
Interface WIFI None
Bluetooth Class II, V2.0+EDR
SD Card Yes
Serial Port Yes
Mini USB Yes
Mirco USB None
USB Flash Disk None
SIM Card None
Compensator System Liquid, Dual Axis
Working Range ±4'
Accuracy 1"
Plummet Laser Plummet (Default)
Accuracy ±1.5mm @1.5m
Laser Brightness Adjustable
Wavelength 630-670nm
Laser Class Class 2 /IEC60825-1
Laser Power <0.4mW
Optical Plummet (Optional)
Image Erect
Magnification 3x
Focusing Range 0.5m --
Field Of View 5"
Accuracy 1.5mm @1.5m
Battery Type Lithium
Voltage 7.4V
Operating time 8 hours
Vial Plate Vial 30" /2mm
Circular Vial 8' /2mm
General IP Rate IP55
Temperature Range -20°C -- +50°C
Dimension 165*150*335mm
Weight 5.2kg
Others -
Others -
Others -

Note: all information above is subject to change without any prior notice.
