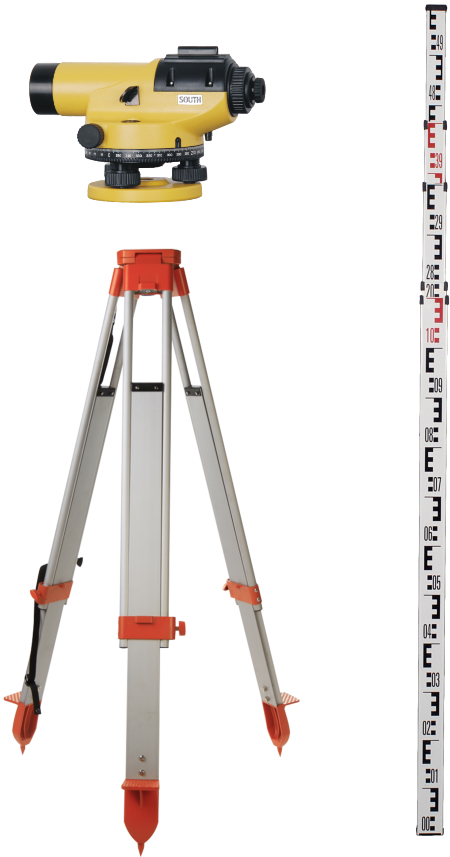

NL G Style

● 32X, 28X, 24X, 20X Telescope ● Magnetic Damping Compensator ● Metal Housing with Excellent Protection

Model: NL 20G/ NL 24G/ NL 28G/ NL 32G

Download:

NL G Style Brochure

Features
Specification

Features

1new

Specification

Auto Level	Magnification	NL20G: 20x NL24G: 24x NL28G: 28x NL32G: 32x
	Effective Objective Aperture	NL20G: 34mm NL24G: 36mm NL28G: 36mm NL32G: 38mm
	Image	Erect
	Reticle	Cross Reticle
	Field of View	1°20′ (2.6m /100m)
	Minimum Focus Distance	0.3m
	Multiplication Constant	100
	Additive Constant	0
	Compensator Type	Magnetic Damping
	Compensator Range	±15′
	Compensator Setting Time	＜2s
	Compensator Setting Accuracy	±0.5″
	Standard 1km Deviation	NL20G: 2,5mm NL24G: 2,0mm NL28G: 1,5mm NL32G: 1,0mm
	Sensitivity of Bubble	8′ /2mm
	Circle Graduation	360° or 400 gon (Minimum 1°or 1 gon)
	Protection Class	IP54
	Working Temperature	-20℃ ～ +50℃
	Storage Temperature	-40℃ ～ +70℃
	Net Weight per Unit	1.8kg
	Package Size (4 PCS/CTN)	220×420×590mm
	Gross Weight (4 PCS/CTN)	11kg

Note: all information above is subject to change without any prior notice.
