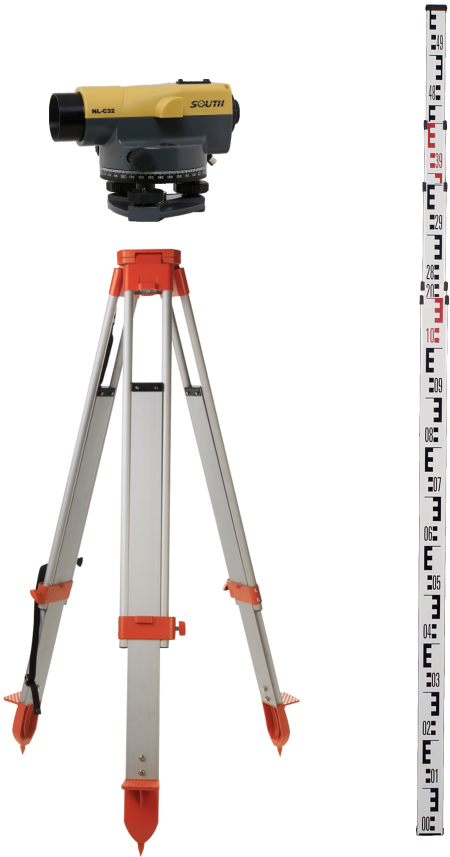

NL-C32

● 32X Telescope ● Air Damping Compensator ● Light & Durable Tool for Levelling

Model: NL-C32

Download:

NL-C32 Brochure

Features
Specification

Features

1new

Specification

Auto Level	Magnification	32x
	Effective Objective Aperture	40mm
	Image	Erect
	Reticle	Cross Reticle
	Field of View	1°20′ (2.3m /100m)
	Minimum Focus Distance	0.3m
	Multiplication Constant	100
	Additive Constant	0
	Compensator Type	Air Damping
	Compensator Range	±15′
	Compensator Setting Time	＜3s
	Compensator Setting Accuracy	±0.3″
	Standard 1km Deviation	1.0mm
	Sensitivity of Bubble	8′ /2mm
	Circle Graduation	360° or 400 gon (Minimum 1°or 1 gon)
	Protection Class	IP54
	Working Temperature	-20℃ ～ +50℃
	Storage Temperature	-40℃ ～ +70℃
	Net Weight per Unit	1.8kg
	Package Size (4 PCS/CTN)	440×320×440mm
	Gross Weight (4 PCS/CTN)	10kg

Note: all information above is subject to change without any prior notice.
