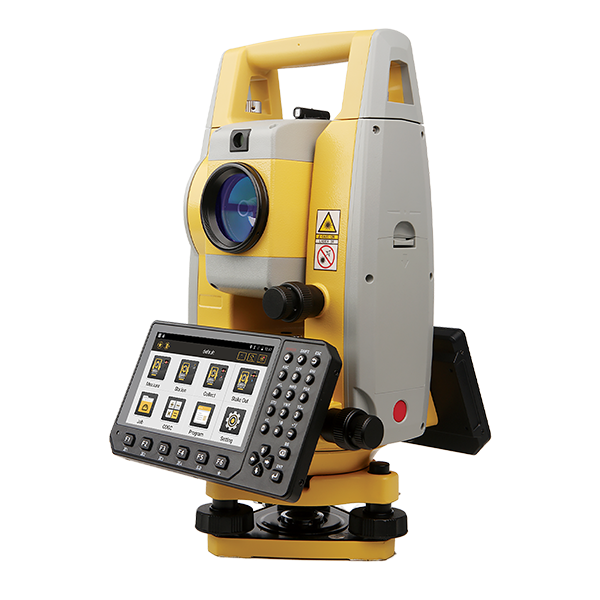

N2H

    ● New! Android 11.0 Operating System ● Reliable EDM - 2000m Non-Prism Range ● High Precision - 2”, 2+2ppm ● User Friendly with EDM Trigger Key ● 5.0 Inches Color Touchscreen ● Fast, Simple and Flexible Data Transfer ● Intuitive Onboard Software - Survey Star

Model: N2H

Download:

N2H Brochure

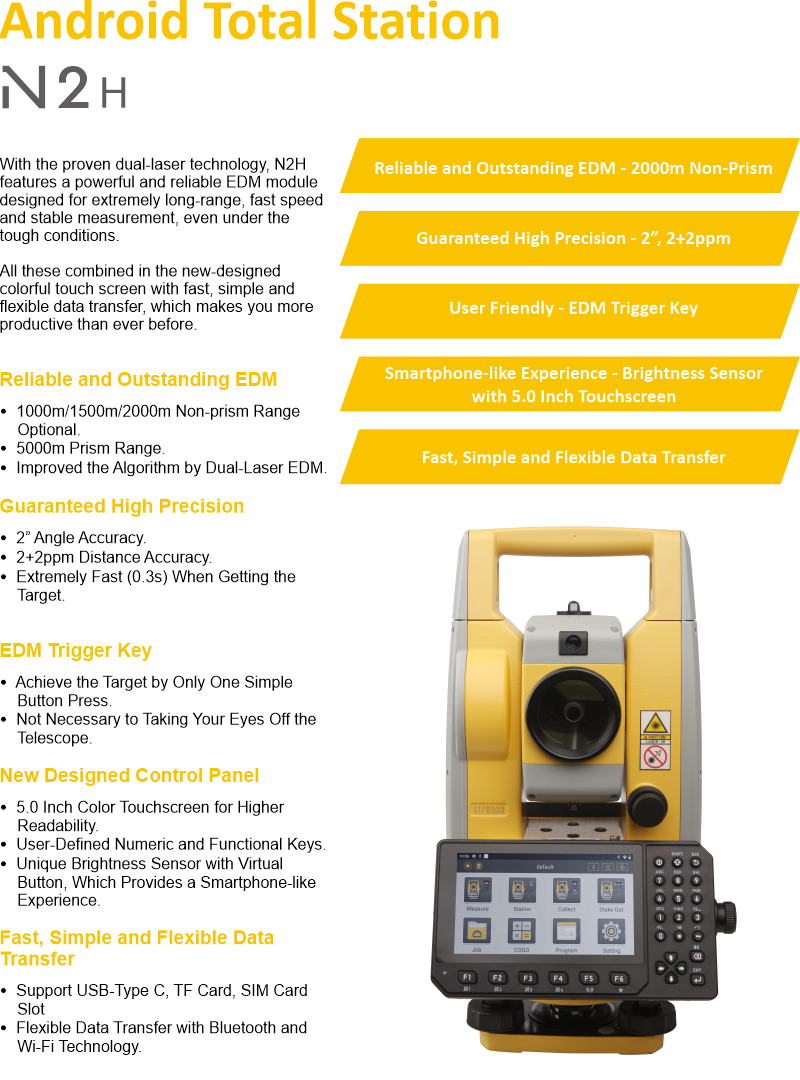

Features

web

Specification

Distance Measurement
with Reflector		 Range *¹ 5000m
Accuracy ±(2+2ppm.D)mm
Measure Interval Fine: 0.3s, Tracking: 0.1s
Distance Measurement
without Reflector		 Range *² 1000/1500/2000m Optional
Accuracy 0~500m: ±(3mm + 2 x 10-6.D)
500~1000m: ±(5mm + 2 x 10-6.D)
1000~2000m: ±(10mm + 2 x 10-6.D)
Measure Interval 0.3-3s
Angle Measurement Accuracy 2”
Measure Method (HZ/V) Absolute Continuous, Diametrical
Diameter of Encoder Disk 79mm
Display Resolution 0.1”/1”/5” (Optional)
Compensation Liquid, Dual Axis Compensation
Compensator Setting 1”
Compensator Range ±4'/±6'(Optional)
Telescope Image Erect
Tube Length 154mm
Effective Aperture 45mm (EDM:50mm)
Magnification 30X
Resolving Power 3”
Field of View 1°30"
Focusing Range 1.4m
Reticle Illuminated, 4 Brightness Level
Vial Plate Vial 30"/2mm
Circular Vial 8'/2mm
Laser Plummet
(Default)		 Type Laser Point, 4 Brightness Level
Accuracy ±1.5mm at 1.5M Instrument Height
Wavelength 630-670nm
Laser Class Class 2 /IEC60825-1
Laser Power <0.4mW
Guide Light Type LED
Wavelength Red 635nm/ Green 590nm
Effective Range 200m
System Config Operating System Android 11.0
Processor MT6762
Internal Memory RAM: 4GB; ROM: 64GB
Communication Interfaces -Micro SIM
-USB Type C (OTG)
-TF Card
Network 3G 2100/900 CDMA BC0 TDSCDMA A/F
4G LTE band1/3/7/38/39/40/41
Bluetooth Bluetooth 4.0
WLAN Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link
Microphone / Speaker Available
Display Type 5.0 Inch, TFT LCD Screen, 720*1280, Alphanumeric keyboard
Battery Type Lithium-Ion, 7.4V
Operating Time 8 Hours
Dimension Size 215mm*170mm*350mm
Weight 5.95kgs
Environmental Temperature Range (Operation) -20°C ～ 60°C
Protection IP55

*1: Good conditions (good visibility approx.40km, overcast, twilight) *2: White objects with high reflectivity (KGC 90%) Note: all information above is subject to change without any prior notice.
