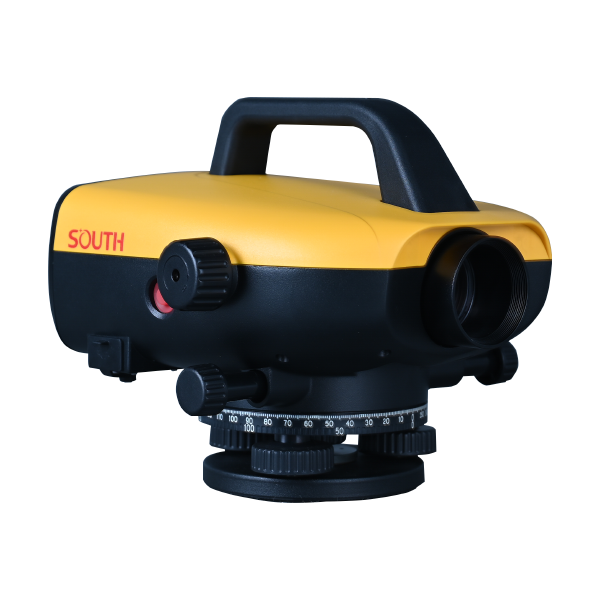

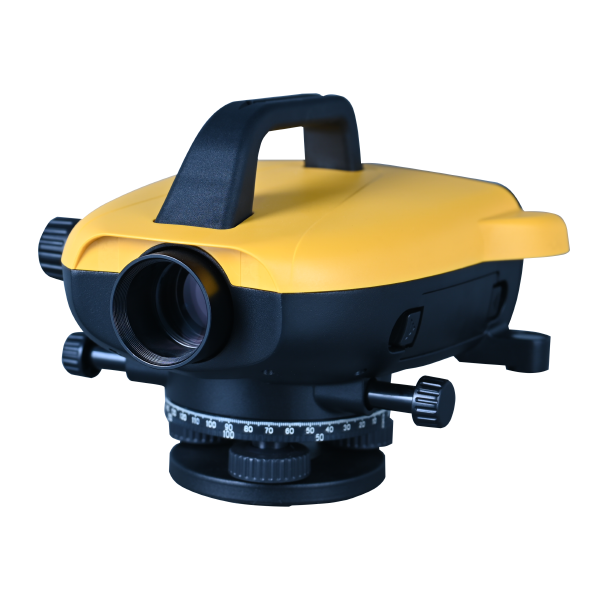

DL-2007A

● Advanced Accuracy ● Height:0.7mm; Distance:D*0.001mm ● Trigger Key Function ● Multiple Data Transform ● Stable Bluetooth Remote Control ● Various Application with Humanized Software ● Fully Protection in lP65

Model: DL-2007A

Download:

DL-2007A Brochure

Specification

Specification

Height	Electronic Measurement	0.7mm
Height	Optical Measurement	1.5mm
Distance Measurement	Accuracy	D≤10m:10mm;D>10m:D*0.001
Distance Measurement	Range	1.8m – 110m
Electronic Measurement	Resolution Height Measurement	0.01mm/0.1mm/1mm
	Resolution Distance Measuremen	0.001m
	Measure Time	Less than 2.5 sec
Telescope	Magnification	32×
	Field of view	1º20′
	Multiple constant	100
	Additive constant	0
Compensator	Compensation range	±15′
	Accuracy	0.3″
	Circular level sensitivity	8’/2mm
Size	L×B×H	235mmx240mmX200mm
Size	Weight	3.1kg
Power Supply	Voltage	3400mAh, 7.4V
Power Supply	Operating Time	20 hours
Environmental	Operating Temperature	-20℃~+50℃
Environmental	Dust and water proof	IP65

Note: all information above is subject to change without any prior notice.
