DL-2003A

● Advanced Accuracy Height:0.3mm Distance:D≤10m:10mm; D>10m:D*0.001 ● Dual-bubble Compensator ● 3.0 inch Colorful LCD Touch Screen ● Stable Bluetooth Remote Control

Model: DL-2003A

Download:

DL-2003A Brochure

Features
Specification

Features

1new

Specification

Height Accuracy (standard deviation for 1km double run leveling)	Digital Reading	0.3mm
	Optical Reading	2.0mm
Distance Accuracy	Digital Reading	D≤10m:10mm; D>10m:D*0.001
Distance Range	Digital Reading	1.8m~110m
Minimum Display	HD	0.01mm/ 0.1mm/ 1mm
Minimum Display	Distance	0.1/ 1cm
Measuring Time		within 3s in normal condition
Telescope	Magnification	32X
	Resolving Power	3"
	Field of View	1°30'
	Multiple Constant	100
	Additive Constant	0
Compensator	Type	magnetic-damped
	Range	>±12'
	Accuracy	0.20"/ 1'
Data Storage	Storage	128MB
	Point Name	increasing/ decreasing/ customized
	Connection	RS232/ Bluetooth
	External Storage	U disk
Circular vial Accuracy		8'/ 2mm
Display		3.0 inch LCD Colorful Touch Screen
Working Temperature		-20°C ~ 50°C
Dimension		230mm X 225mm X 203mm
Weight		3.1kg
IP Standard		IP65

Note: all information above is subject to change without any prior notice.

7853

Related products

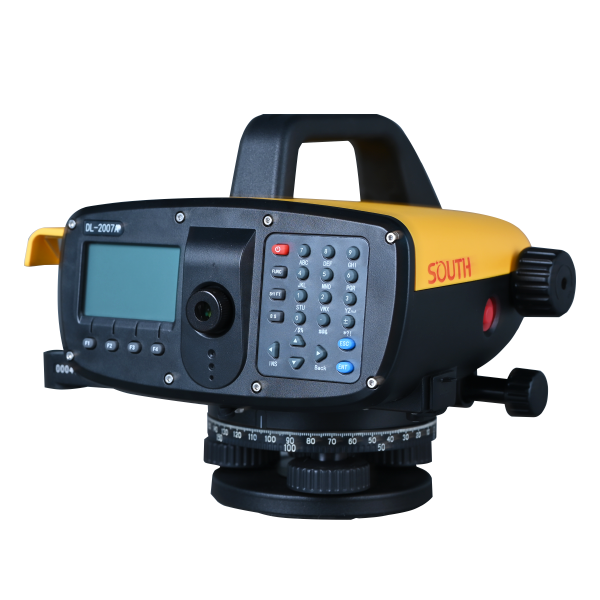

DL-2007
READ MORE

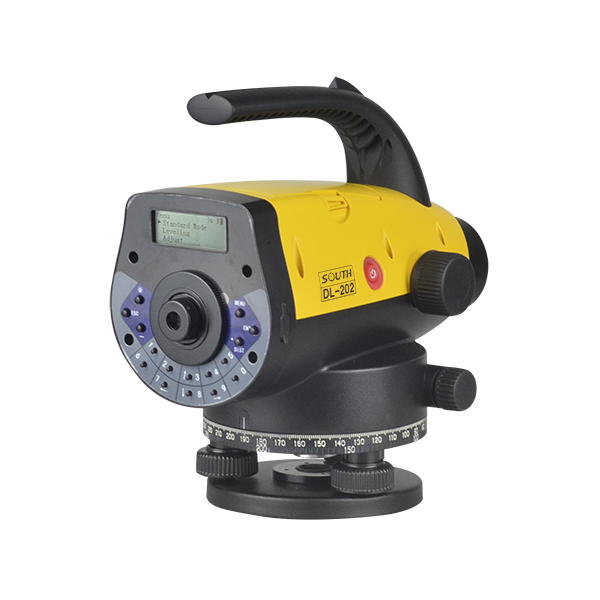

DL-202
