PS2.6 /PS3.6 /PS4.6

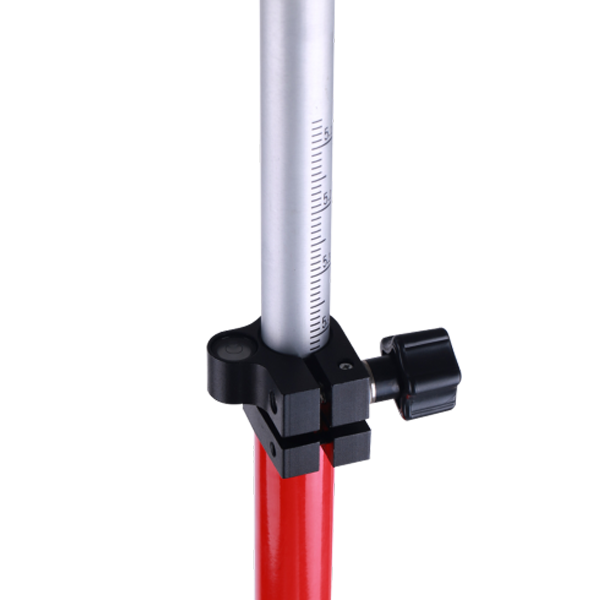

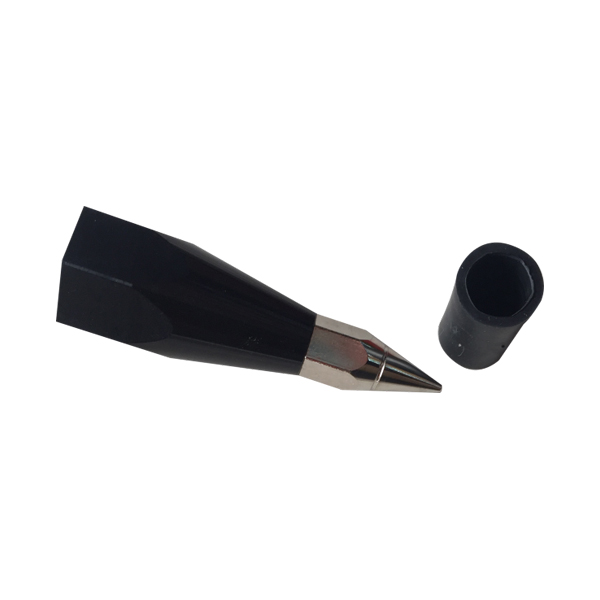

●Side Twist: The soft rubber knob is easy for tighten and loosen ●Adjustable Tip: Features an anodized aluminum body with an easy-to-replace steel point ●Copper Thread

Model: PS2.6 /PS3.6 /PS4.6

Specification

Specification

Prism Pole	Model	PS2.6 /PS3.6 /PS4.6
	Pole Ф	34.6mm
	Sections	PS2.6: 2 sections PS3.6: 3 sections PS4.6: 4 sections
	Grads	Dual
	Full length	PS2.6: 2600mm PS3.6: 3600mm PS4.6: 4650mm
	Min. Length	PS2.6: 1470mm PS3.6: 1520mm PS4.6: 1570mm
	Lock Type	Side Twist
	Net. Wt	PS2.6: 1.45kg PS3.6: 1.84kg PS4.6: 2.30kg

Note: all information above is subject to change without any prior notice.
