SDE-18S

• High accuracy marine survey transducer • Stainless steel case, rugged and durable • Automatic adjustment for different under water condition

Model: SDE-18S

Features
Specification

Features

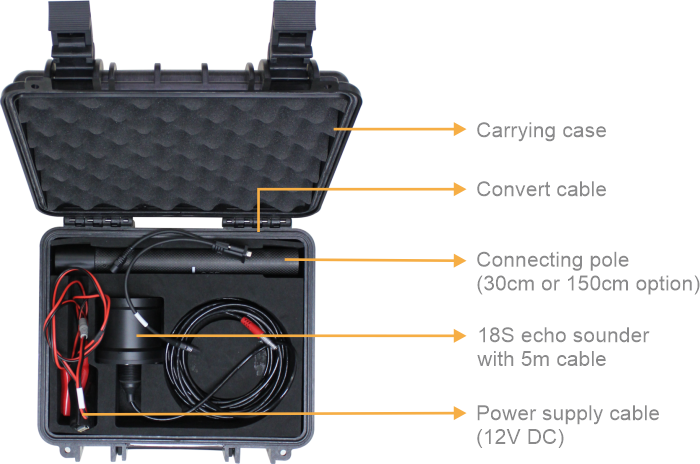

SOUTH SDE-18S echo sounder is SOUTH mini-size echo sounder, it can use with SOUTH EchoSounder and Hysurvey software. Totally SDE-18S is only 2 KG weight, rugged and simple design, optional 30cm and 150cm survey pole which is easily tide at the boat. Automatic echo parameters adjustment function is very suitable for hydrographic survey, and also can combine with USV solution.

SDE-18S

Specification

SED-18S	Sound Frequency	200K Hz
	Beam Angle	5°
	Depth Range	0.4-100m
	Accuracy	±0.01m±0.1%D (D takes the instant depth)
	Depth Resolution	0.01m
	Input Voltage	DC 9V-18V
	Output Data	User-defined via RS-232
	Working Temperature	-30°C-60°C
	Weight	2KG
	Water Pressure	≤50m
	Accuracy	±1cm±0.1%D (D is the depth value)
