H5

    ● Professional-grade infrastructure, industry-leading configuration ● The operation is stable and reliable, and the application scenarios are wide ● Equipped with 13 megapixel camera for accurate image capture ● 16G large storage space ● 4G network communication, reliable data transmission

Model: H5

Download:

H5 Brochure

Features

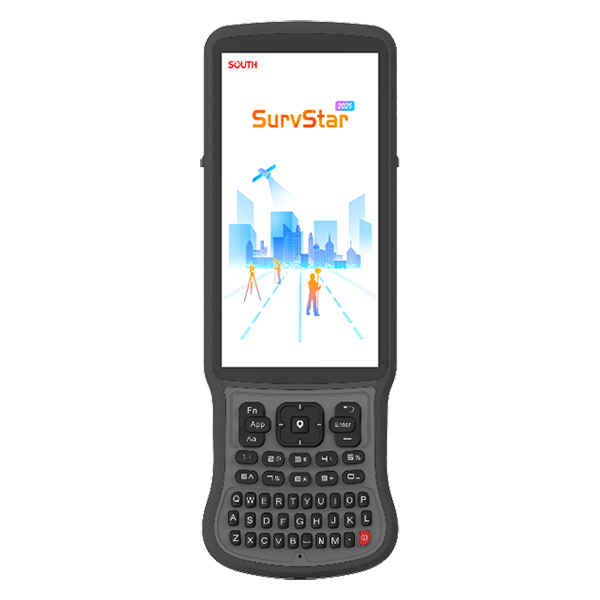

H5 is a new generation professional controller running on Android which offers state of the art smartphone capabilities combined with rugged professional quality. And the alphanumeric keypad which gives flexibility for surveyors field work.


H5 as an Industrial controller has rugged cover which reaches to IP68. The device is waterproof and 2m drop proof. The frame of the H5 is magnesium alloy, which is both lightweight and strong. Your data will be protected and the reliability of the device in the most challenging environments.


In addition, the 3400 mAh Li-ion battery fulfills the long time working time need. Protected and secure, the SD card and SIM card slots are located under the  battery and inside the battery door.  Adopting various sensors, like barometers, NFC, gyroscope, E-compass, G-sensor, etc. The powerful network module can provide multiple options and perfect experience of high speed net connection. The H5 can be configured with internal Bluetooth, WiFi, Camera, GPS and cellular functionality. There are even additional options such as bulit-in bar code reader and interphone  functions.


Specification

System Operating system Android 5.1
CPU Quad-core 1.3GHz
Memory 2GB RAM, 16GB ROM
Storage Up to 128G extensible
GNSS Channels -
GPS -
GLONASS -
GALILEO -
SBAS -
A-GPS A-GPS
Multimedia Diplay & Resolution 4.3 inch TFT LED, 480 X 640 RGB
Camera 13.0 Megapixel
Audio Integrated speaker, microphone
Integrated sensors G-sensor, thermometer, barometer, high-pressure gauge
Communications USB Mini USB, supports OTG
Serial port -
Bluetooth V4.0 + EDR
NFC Supports
Network TDD/FDD-LTE 4G
WiFi IEEE 802.11b/ n 2.4G/ 5G
Electrical Battery 7.4V, 3400mAh
Battery life 16 hours
Charging < 4 hrs for full charge
Environment Waterproof/Dustproof IP68
Shockproof 1.5m
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃ ~ +70℃
Physical Dimension 208mm(L) × 83mm(W) × 24mm(H)
Weight 470g
Keypad Full character keyboard + virtual keyboard

Note: all information above is subject to change without any prior notice.
