Features
Specification

Features

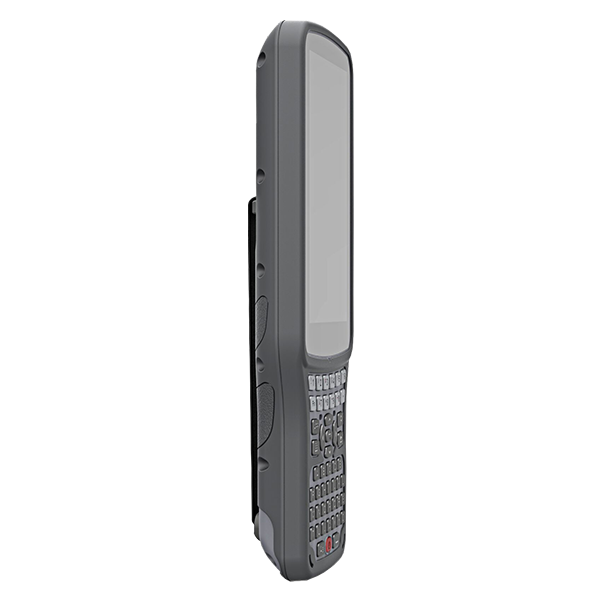

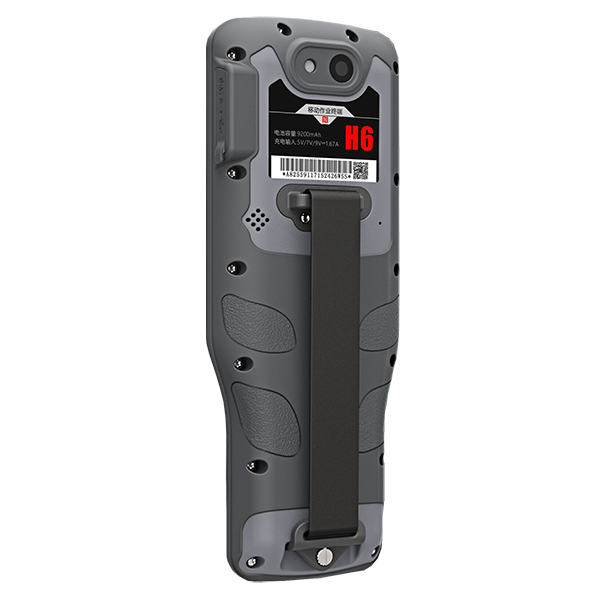

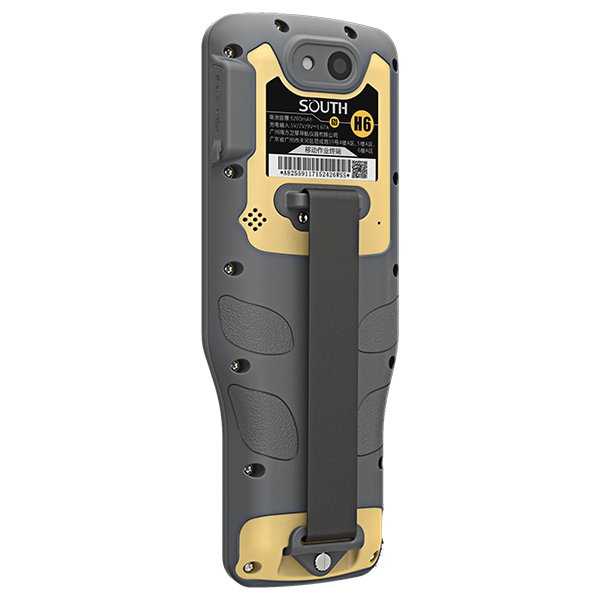

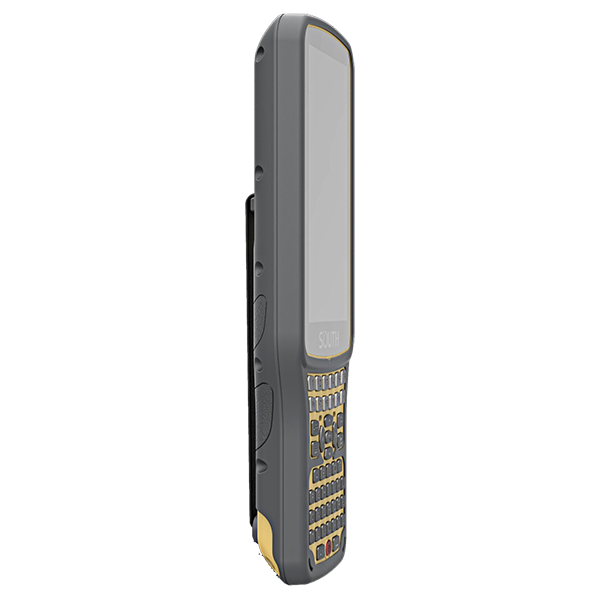

H6 is SOUTH new generation professional Android controller. It is installed Android 12 OS and adopts full keypad with separate keys for 26 letters and numbers makes the input in the field more faster.

H6 as an Industrial controller has rugged cover which reaches to IP67. The device is waterproof and 1.5m drop proof, your data will be protected and the reliability of the device in the most challenging environments. In addition, the 9200 mAh Li-ion battery fulfills the long time working time need. Dual nano SIM card slots supports 4G network bring perfect experience of high speed net connection.

Integrated with various sensors, like NFC, gyroscope, E-compass, G-sensor, etc. New generation Bluetooth V4.1 working distance is more than 20 meters , the advanced WIFI module makes the working range up tp 30 meters in good condition.

Specification

SYSTEM	Operating system	Android 12
	CPU	Octa-core 2.0GHz
	RAM	3GB
	ROM	32GB
	Storage extension	Support 128GB extension
COMMUNICATION	SIM frequencies	GSM: B2/B3/B5/B8 FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28 TDD-LTE B38/B39/B40/B41 TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 CDMA1x/CDMA2000 BC0
	Dual SIM card slot	Support two nano sim
	USB	Type-C, support OTG
	WiFi(WLAN)	IEEE 802.11a/b/g/n, 2.4G/5G
	Bluetooth	V4.1
PHYSICAL	Display	5 inches capacitive touch screen (720×1280 dpi)
	Keypad	Full keypad
	Audio	Integrated speaker, microphone
	Camera	13.1 megapixel camera with auto-focus
	Flash light	High light Flash LED
	Gyro	Support
	NFC	Support
	G-Sensor	Support
	Compass	Support
	GNSS	GPS/GLONASS/BDS/GALILEO/QZSS
POWER	Battery capacity	9200mAh
	Stand-by time	240 Hrs
	Operating time	15 hours
ENVIROMENT	Waterproof/ Dustproof	IP67
	Shockproof	1.5m
	Operation temperature	-30℃~+60℃
	Storage temperature	-30℃~+70℃
PHYSICAL PROPERTY	Size	235mm90mm35mm
PHYSICAL PROPERTY	Weight	520g

Note: all information above is subject to change without any prior notice.
