H7

    Model:

    Download:

    H7 Brochure

    Features

    7.0" Display  |  11550mAh Battery  |  8+256GB  |  850 nits



    4

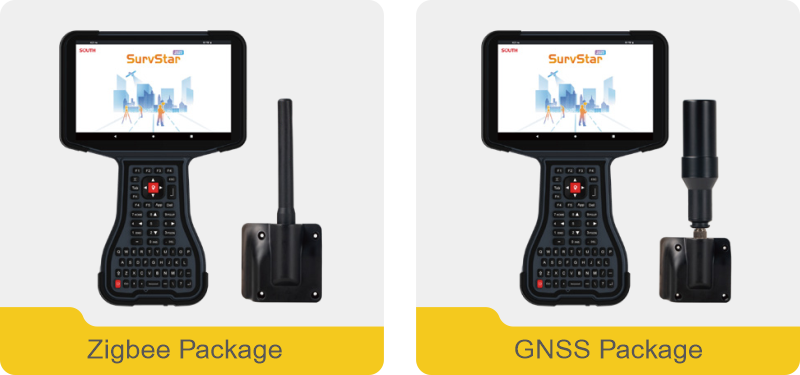

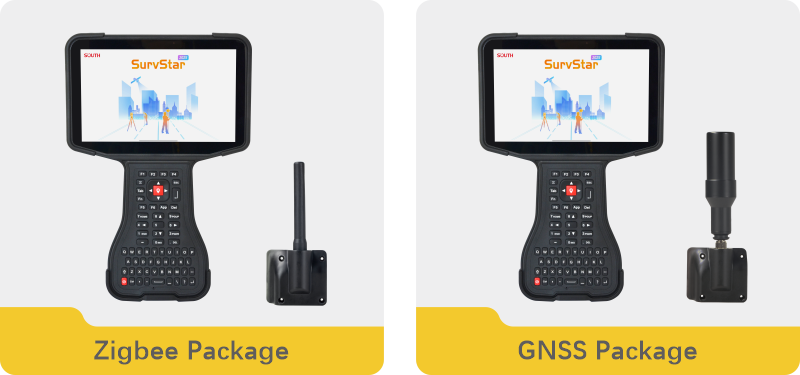

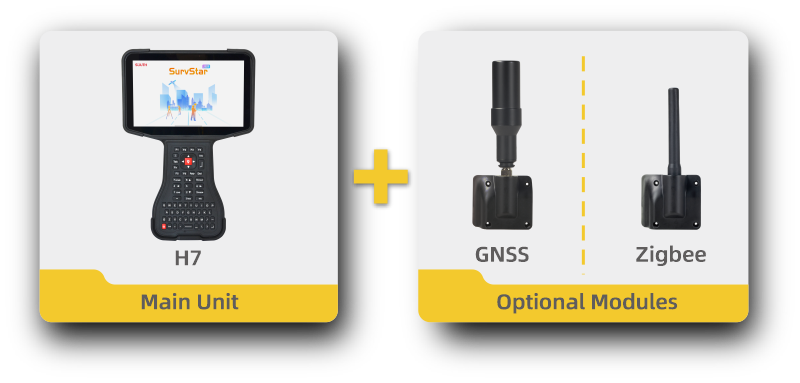

    Modular Versatility, Offering More Options

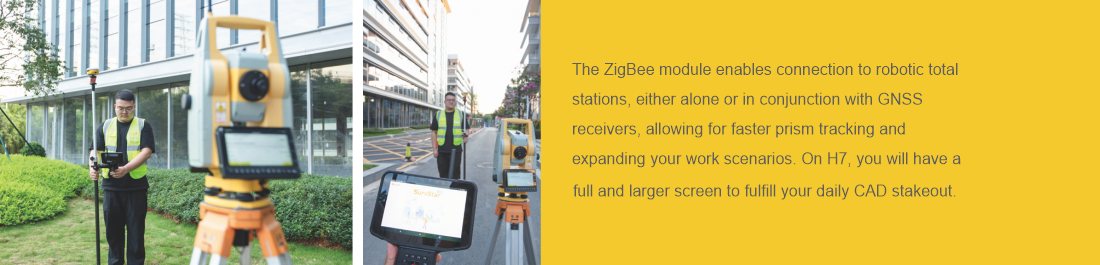

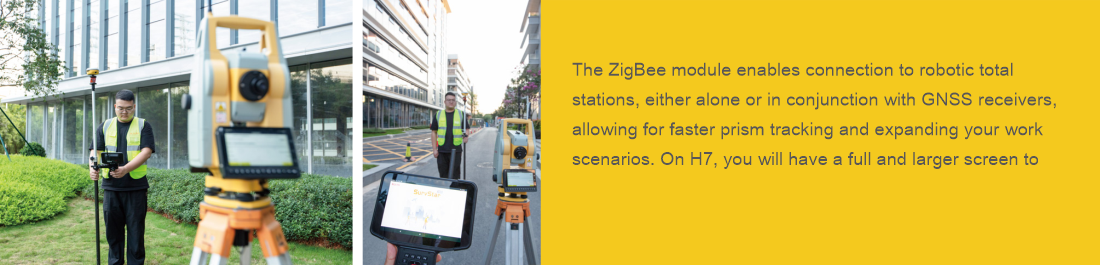

              Zigbee Module

               —Control Robotic Total Station and Experience the Prism Plus Position Solution


    1

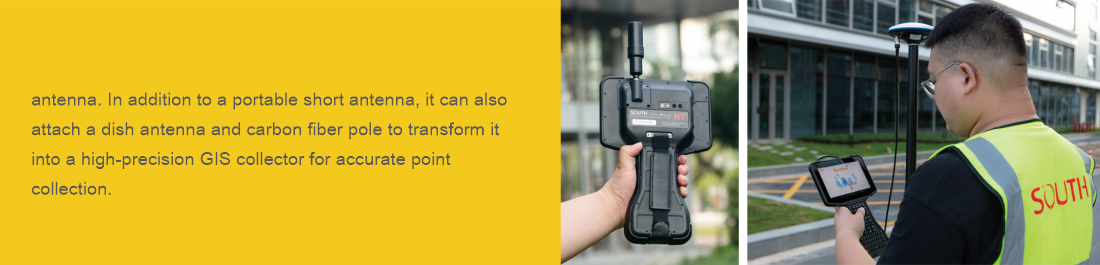

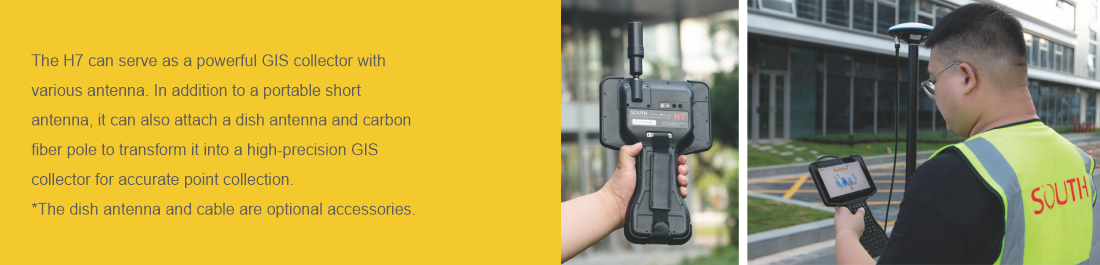

              High-precision Module

              —Work as a GIS Collector


    2



    Designed for Efficiency—The Ultimate Field Companion

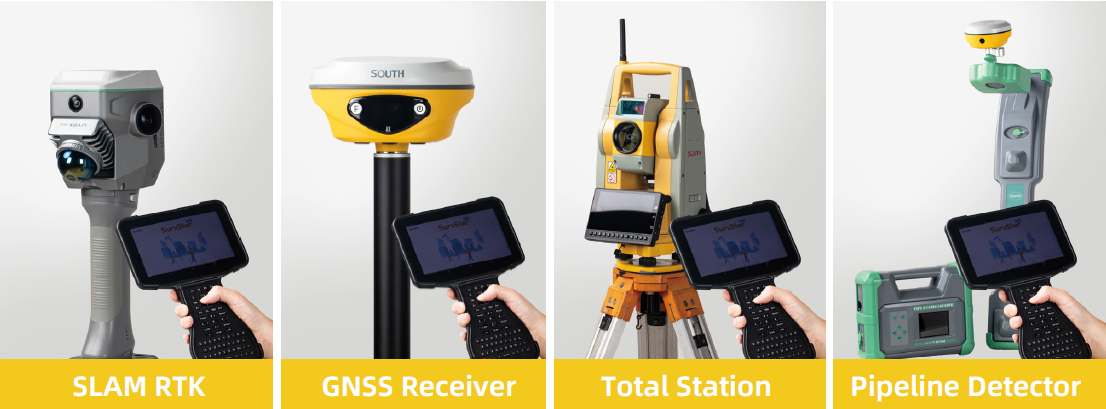

              One Platform for Multiple Devices

                When used as a regular controller, it is compatible with a wide range of devices such as SLAM RTK, GNSS receivers，total stations, and pipeline detectors. It delivers a

                comprehensive and flexible solution for diverse field applications, creating a new surveying ecosystem.


    3

    Specification

    Basic Dimensions 290 x 195 x 30mm
    Weight (built-in battery) 824g (Standard), 860(Zigbee), 890(GIS)
    Material Impact-resistant TPU shell
    Display 7-inch IPS LCD, 1920x1200
    Brightness 850 cd/m³
    Keypad Type Backlit QWERTY keypad
    Camera 13MP rear
    Battery 11550mAh/ 3.85V
    Charging 5V2A, USB-C, PD fast charging
    Interfaces Type-C, NFC, MicroSD card
    Performance Parameters Processor Octa-core CPU (2x Performance @ 2.0GHz + 6x Efficiency @ 1.8GHz)
    OS Android 12
    RAM 8GB
    Storage 256GB
    Wireless Communication WIFI IEEE 802.11 a/b/g/n/ac 2.4G/5G Dual-Band supports fast roaming
    Bluetooth ET2.1+EDR/3.0/4.1LE/4.2/5.0
    Network 4G LTE
    Product Reliability Operating Temp -30°C ~ +66°C
    Storage Temp -30°C ~ +70°C
    Protection Rating IP67
    Drop Test 1.5m drop onto concrete surface (all six faces)
    Salt Spray Test NaCl solution concentration 5%, PH: (6.5-7.2), continuous spray 24H settling index 1.0-2ml/80cm².h
    Vibration Test Fixed frequency 50Hz, amplitude 100mm, duration 30min
    Expansion Zigbee module
    GIS module
    GNSS GNSS Signal 1698 Channels
    GPS L1C/A/L1C/L2P(Y)/L2C/L5
    BDS B1I/B2I/B3I/B1C/B2a/B2b
    GLONASS G1/G2/G3
    Galileo E1/E5a/E5b/E6
    QZSS L1C/A/L1C/L2C/L5
    NavIC L5 / SBAS L1C/A
    Positioning Precision Single Point Positioning (RMS): Horizontal: 1.5 m
    Vertical: 2.5 m
    DGPS (RMS): Horizontal: 0.4 m
    Vertical: 0.8 m
    RTK (RMS): Horizontal: 0.8 cm + 1 ppm
    Vertical: 1.5 cm + 1 ppm
    Zigbee Zigbee Connection Distance 600m (Optimal Environment)

    3523
