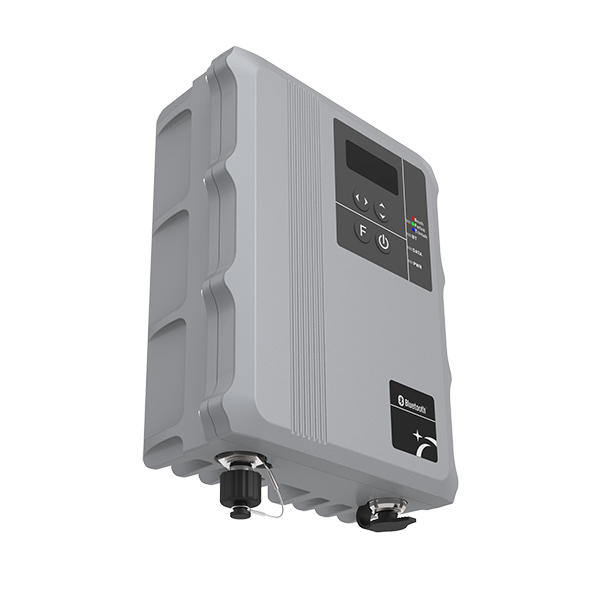

Model: S6
Features
Specification
■ Wire/Wireless connection
S6 supports connecting with Base receiver via the 5-pin LEMO cable line, or via the wireless communication. For most base receivers, it is recommended to connect with S6 radio via the 5-pin LE52X cable line. If your base receviers have Wi-Fi hotspot, S6 can also connect to the hopspot and tranmisit data.
■ Digital display
The 3-digital display is reliable and simplified. you can check the radio channel, wireless from the digital display.
■ Easy-to-use
It is easy to switch radio channel and protocol via the front panel buttons. Or using the android app to configure via Bluetooth
■ Multi-protocol
S6 supports SOUTH/Trimtalk/Farlink/Kolida/Satel/Huace/Hi-target protocols. the frequency of each channel can be changed from the android app.
■ Power management system
Advanced power management system, keeps S6 continuously works effectively when the battery voltage is decreasing. The Electrostatic discharge (ESD) system provents S6 from electrostatic damage
Radio | Frequency | 410MHz ~ 470MHz* |
Modulation | GMSK/4FSK | |
Channel bandwidth | 25KHz@other, 500KHz@Farlink | |
Channel | 120 channels @other, 60 channels @Farlink | |
Protocol | SOUTH/Trimtalk/Farlink/HUACE*/Hi-Target*/SATEL*/KOLIDA* | |
Air baudrate | 9600/19200* | |
Wireless | Bluetooth | BT2.1, to configurate settings of radio |
Wi-Fi | Client mode | |
Interface | Display | 3-digital 7-segment display |
LED | 4 LED(Protocol, BT, TX, Power) | |
Button | 4 buttons | |
TNC | For external UHF antenna | |
LEMO | 5-pin LEMO for power and I/O | |
I/O Port | RS232 | |
Electric | Power | 25W/10W |
Input | 9~15V DC, polarity reversal protection | |
ESD | Supports | |
Environmental | IP | IP67 |
Shockproof | 1 m | |
Operation temperature | -30℃~60℃ | |
Storage temperature | -40℃~85℃ | |
Weight | 1.35kg | |
Size | 144*174*65.9mm |
Items marked with * could only be configured via software.
