Features
Specification

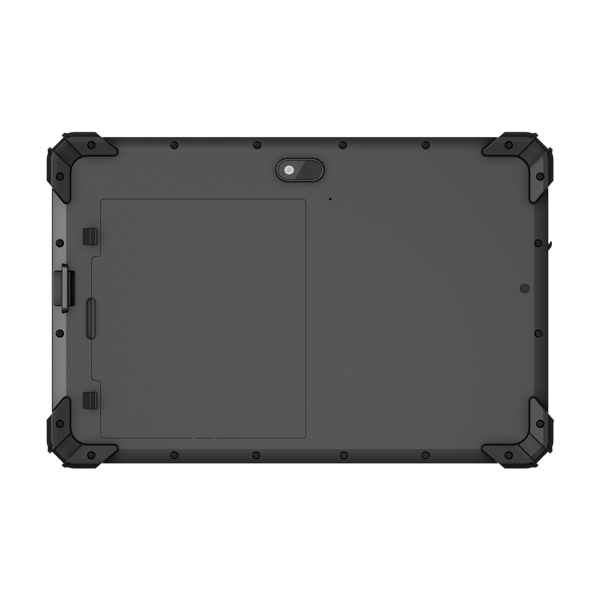

HR842 is a totally new ultra-rugged tablet, the Microsoft Windows 10 operating system, 4 GB RAM, and 64 GB of flash-based storage onboard the HR842 tablet allow you to run all of the applications you need to perform office work. Designed for ease of use and high performance mobility, the rugged tablet provides everything you expect from a tablet computer. It is easy to carry and can be installed Fieldgenius and SurvCE software, large touch screen will offer better user experience.
System | Operating system |
Windows 10 Home |
CPU |
1.44Ghz - 1.92GHz |
|
Memory |
4G RAM DDR + 64G EMMC |
|
Storage | - | |
GNSS performance | Channels | - |
GPS |
L1 |
|
GLONASS |
L1 |
|
BDS | - | |
GALILEO | - | |
SBAS | - | |
QZSS |
L1 |
|
Data output | - | |
I/O protocol | - | |
Update rate | - | |
Reacquisition | - | |
Warm start | - | |
Cold start | - | |
Accuracy | Single positioning | 2.5m |
SBAS positioning | 2m | |
DGNSS | - | |
RTK(baseline<30km) | - | |
Multimedia | Camera |
5 MP AF rear camera, 2 MP front camera |
Display |
8 inch 1280 × 800 IPS screen |
|
Sensor | - | |
Other function | - | |
Extended function(optional) | NFC | |
Communication | network |
4G FDD-LTE/ TD-LTE |
Bluetooth |
Bluetooth v4.0 |
|
WIFI |
802.11 a/b/g/n 2.4G/5G |
|
USB |
1*Micro USB, 1*USB2.0, 1*micro HDMI |
|
Electrical | Battery |
Build-in 3.7V/ 8500mAh Li-ion |
Battery life |
7~8 hours with WIFI |
|
Battery charging | - | |
Environment | Waterproof/Dustproof |
IP67 |
Shockproof |
1m (MIL-STD-810G) |
|
Humidity | - | |
Operating temperature |
-20℃ ~ +60℃ |
|
Storage temperature |
-30℃ ~ +70℃ |
|
Physical | Dimension |
228mm(L) × 145mm(W) × 16.5mm(H) |
Weight | 630g |
Note: all information above is subject to change without any prior notice.
