Aluminum Tripod

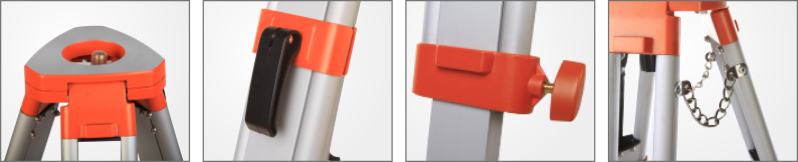

●Light-weight and durable aluminium design ●No shrinking or swelling in tough conditions ●Flat head; Tripod thread: 5/8″M16 ●Decorative chain available for JP series tripod

Model: ATS-1 /ATS-3 /ATS-5 /ATS-JP1 /ATS-JP2 /ATS-JP3 /NAT-81CT

Features
Specification

Features

2new

Specification

Tripod	Model	ATS-1 /ATS-3 /ATS-5 /ATS-JP1 /ATS-JP2 /ATS-JP3 /NAT-81CT
	Full Length	ATS-1: 1650mm ATS-3: 1700mm ATS-5: 1600mm ATS-JP1: 1650mm ATS-JP2: 1650mm ATS-JP3: 1650mm NAT-81CT: 1700mm
	Min. Length	ATS-1: 970mm ATS-3: 1000mm ATS-5: 970mm ATS-JP1: 1030mm ATS-JP2: 1030mm ATS-JP3: 1030mm NAT-81CT: 1000mm
	Lock	ATS-1: Twist & Clamp ATS-3: Twist & Clamp ATS-5: Twist & Clamp ATS-JP1: Clamp ATS-JP2: Twist ATS-JP3: Twist & Clamp NAT-81CT: Twist & Clamp
	Head (Outer)	ATS-1: 158mm ATS-3: 158mm ATS-5: 120mm ATS-JP1: 160mm ATS-JP2: 160mm ATS-JP3: 160mm NAT-81CT: 158mm
	Head (Inner)	ATS-1: 66mm ATS-3: 66mm ATS-5: 45mm ATS-JP1: 67.5mm ATS-JP2: 67.5mm ATS-JP3: 67.5mm NAT-81CT: 66mm
	Weight	ATS-1: 3.5kg ATS-3: 3.7kg ATS-5: 3.0kg ATS-JP1: 4.0kg ATS-JP2: 4.0kg ATS-JP3: 4.2kg NAT-81CT: 5.0kg

Note: all information above is subject to change without any prior notice.

Tripod

Leg

ATS-1: Quadrate

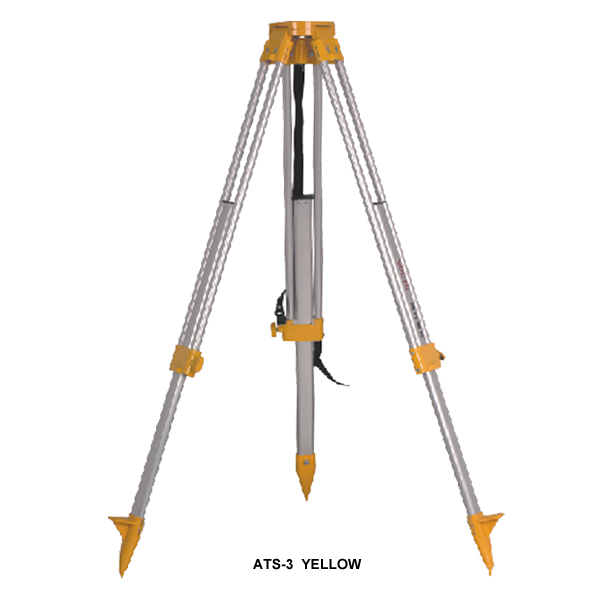

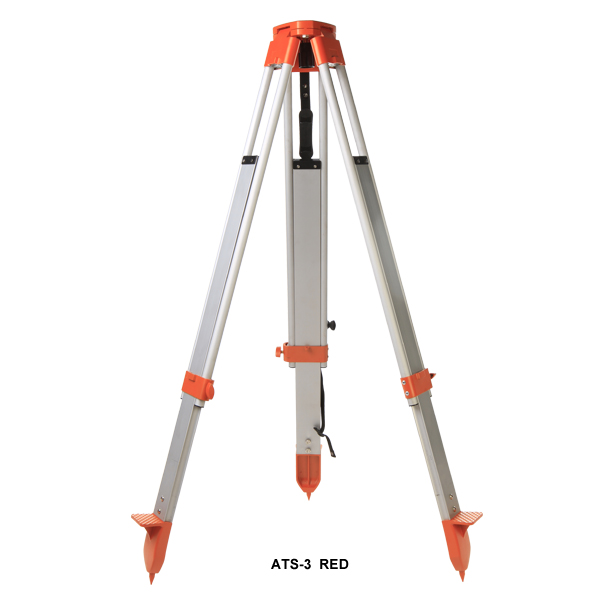

ATS-3: Round

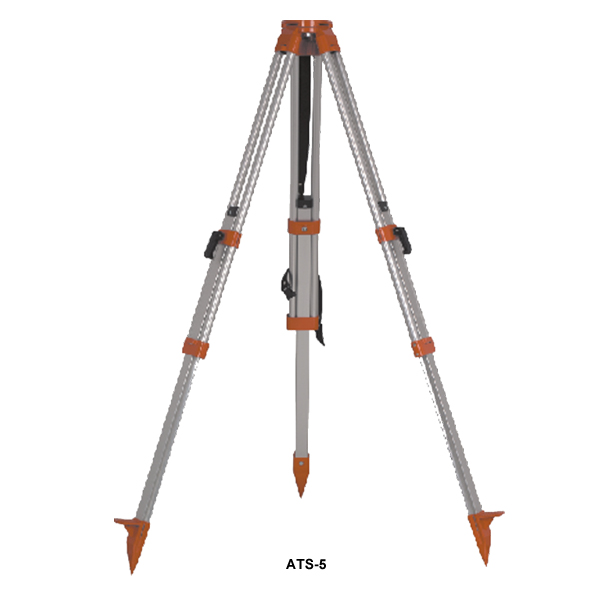

ATS-5: Round

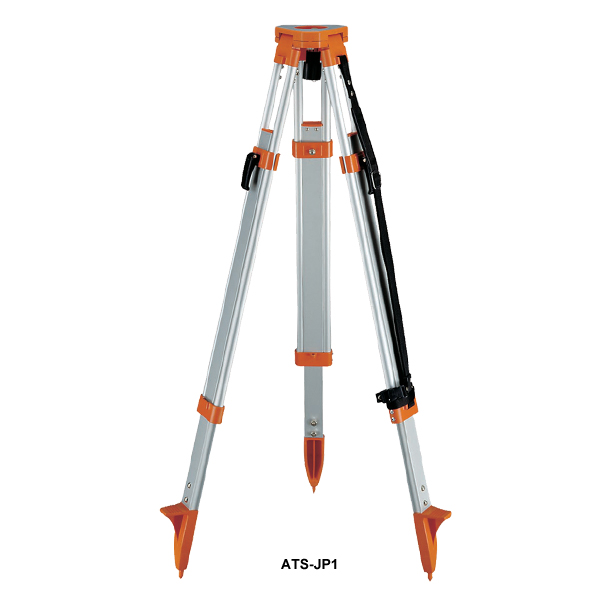

ATS-JP1: Round
ATS-JP2: Round
ATS-JP3: Round

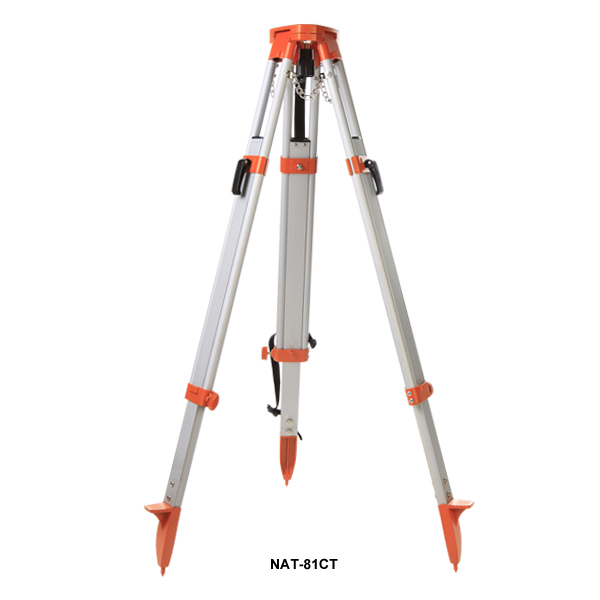

NAT-81CT: Quadrate
