Fiberglass Tripod

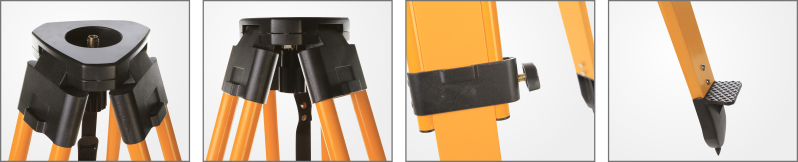

●Long-lasting coated for hardware ●Quick and easy release for extended height ●Flat head

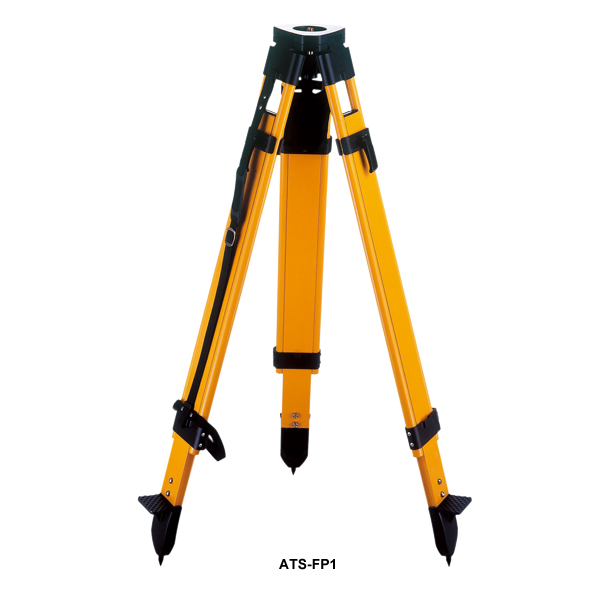

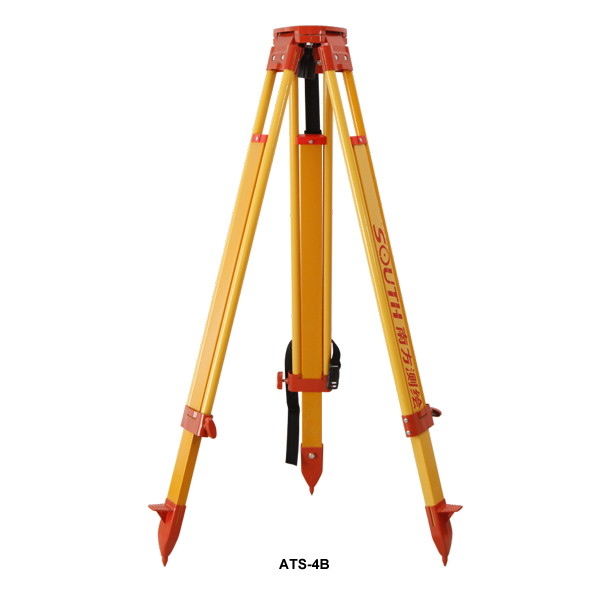

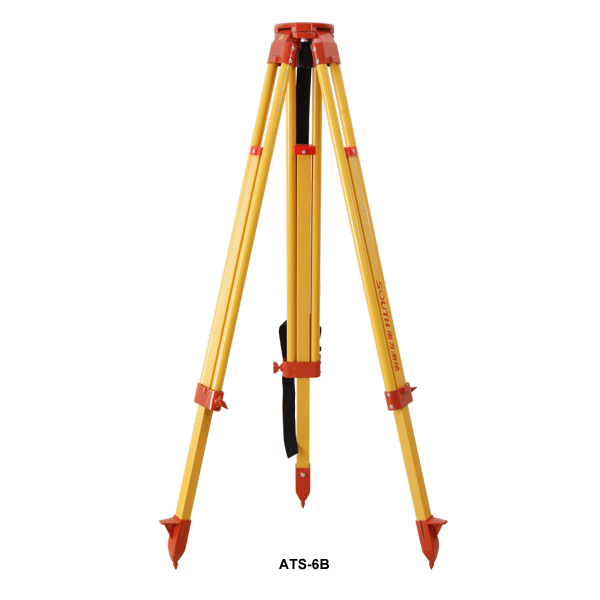

Model: ATS-2B /ATS-4B /ATS-6B /ATS-FP1 /ATS-FP2 /ATS-FP3

Features
Specification

Features

2new

Specification

Tripod	Model	ATS-2B /ATS-4B /ATS-6B /ATS-FP1 /ATS-FP2 /ATS-FP3
	Full Length	ATS-2B: 1800mm ATS-4B: 1630mm ATS-6B: 1550mm ATS-FP1: 1755mm ATS-FP2: 1780mm ATS-FP3: 1755mm
	Min. Length	ATS-2B: 1080mm ATS-4B: 970mm ATS-6B: 940mm ATS-FP1: 1090mm ATS-FP2: 1090mm ATS-FP3: 1090mm
	Lock	ATS-2B: Twist ATS-4B: Twist ATS-6B: Twist ATS-FP1: Clamp ATS-FP2: Twist ATS-FP3: Twist & Clamp
	Head (Outer)	ATS-2B: 158mm ATS-4B: 158mm ATS-6B: 120mm ATS-FP1: 160mm ATS-FP2: 160mm ATS-FP3: 160mm
	Head (Inner)	ATS-2B: 66mm ATS-4B: 66mm ATS-6B: 45mm ATS-FP1: 67.5mm ATS-FP2: 67.5mm ATS-FP3: 67.5mm
	Weight	ATS-2B: 5.88kg ATS-4B: 4.5kg ATS-6B: 3.5kg ATS-FP1: 8.2kg ATS-FP2: 8.0kg ATS-FP3: 8.5kg

Note: all information above is subject to change without any prior notice.
