Heavy-Duty Tripod

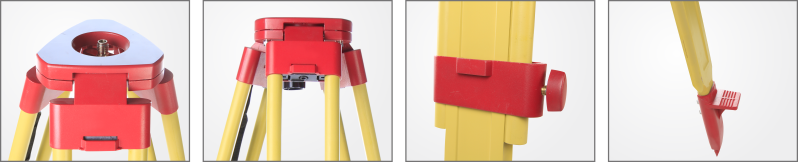

●Use for Total Station/ GPS System ●Proven long-life, twist-proof and excellent vibration characteristics ●Including heavy-duty shoulder trap for easier carrying

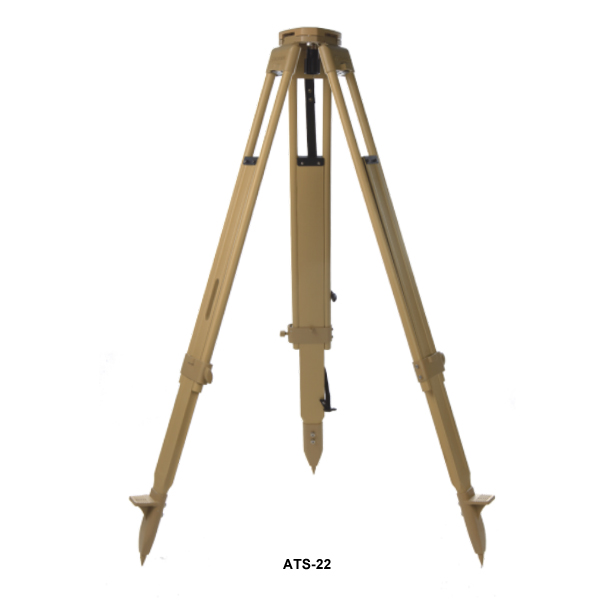

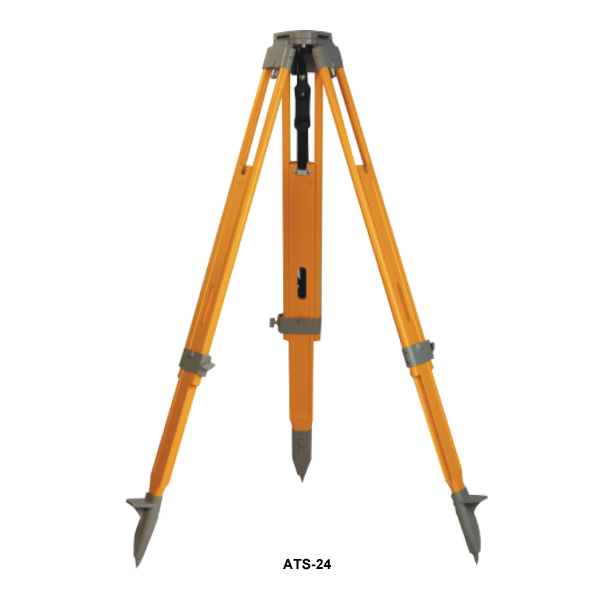

Model: ATS-20 /ATS-22 /ATS-24

Features
Specification

Features

2new

Specification

Tripod	Model	ATS-20 /ATS-22 /ATS-24
	Full Length	1700mm
	Min. Length	ATS-20: 1000mm ATS-22: 1090mm ATS-24: 1000mm
	Lock	ATS-20: Twist ATS-22: Twist ATS-24: Twist & Clamp
	Head (Outer)	ATS-20: 158mm ATS-22: 160mm ATS-24: 160mm
	Head (Inner)	66mm
	Weight	ATS-20: 6.0kg ATS-22: 7.0kg ATS-24: 7.0kg

Note: all information above is subject to change without any prior notice.
