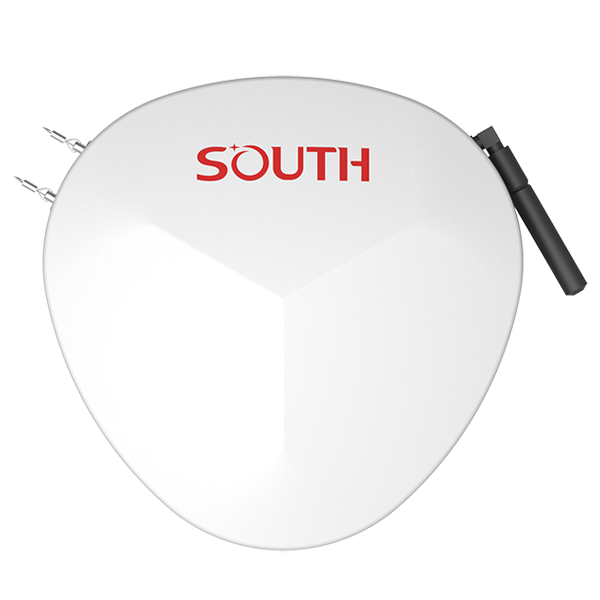

SOUTH MS1

All in one design, Network model and battery integrated

Model: MS1

Download:

SOUTH MS1 Brochure

Features
Specification

Features

MS1-23-01

Specification

SOUTH MS1	Title angle measuring	Range: ±90° Accuracy: ±0.05°
	Acceleration	Work range: ±2g Accuracy: 0.1mg
	Collected Interval	0s～24h
	Upload interval	0s～72h
	Output	RS485, 3/4G
	Output parameters	Vibration acceleration, inclination, vibration frequency, tilt angle
	Protection	IP68
	Working temperature	-40℃～+85℃
	Working humidity	0～100%RH
	Power consumption	≤3.5mW
	Trigger function	Support vibration trigger
	Remote control	Support remote configure the parameters, reboot, programme upgrading
	Power supply	Built-in large capacity Lithium battery, it can continuously work more than 3 years

17
