NET S10 mini

    ●All-in-view constellation tracking. ●10/100M Ethernet interface, supports HTTP protocol, and 5 independent data streams transmission. ●Supports STH, RINEX2.x, RINEX3.x, customizable sampling interval. ●Supports dual-antenna configuration. ●Built-in network module, easy to operate, ultra-low power consumption.

Model: NET S10 mini

Download:

NET S10 mini Brochure

Features

Net S10 mini  is a new multi-band and multi-constellation CORS/monitoring receiver, which is able to track all GNSS constellations and all current and future signals. Using the international mainstream operating system-Linux, and coupled with the powerful software and the strong computing performance, S10 mini can be widely used in various scenarios.


NET S10 mini4

Specification

GNSS Channels 1598
GPS L1C/A, L2E, L2C, L5
GLONASS L1C/A, L2P, L2C/A, L2P
GALILEO E1, E5A, E5B, B5AltBOC, E6
BDS B1, B2, B3
SBAS WASS, MSAS, EGNOS and GAGAN
Initialization <10s
Reliability >99%
Accuracy SBAS positioning Typically<5m 3DRMS
Code differential GNSS Horizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
Static(long observations) Horizontal: 2.5 mm + 0.1 ppm RMS
Vertical: 3 mm + 0.4 ppm RMS
Static Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 3.5 mm + 0.5 ppm RMS
Rapid static Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
RTK(UHF) Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
RTK(NTRIP) Horizontal: 8 mm + 0.5 ppm RMS
Vertical: 15 mm + 0.5 ppm RMS
Data Storage 8GB SSD (64GB optional)
Position update rate 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz(optional)
Differential output RTCM2.x, RTCM3.x, CMR, CMR+, sCMRx
Data output ASCII (NMEA-0813), BINARY
Static format STH, RINEX2.x, RINEX3.x
Data retrieval Download form HTTP, FTP Push, or transfer by USB port
Communication Protocol TCP/IP, HTTP and NTRIP protocol

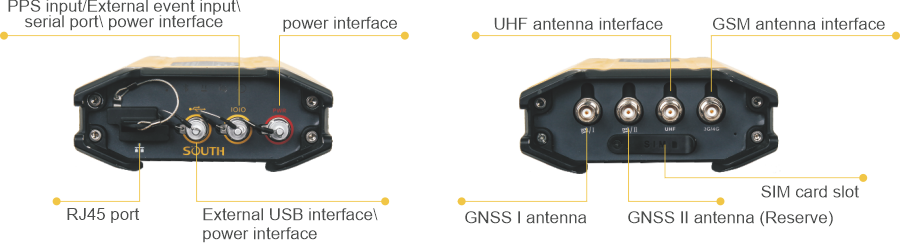

LEMO port Navigation data, static data and differential correction data transmission, PPS-UTC
Bluetooth Bluetooth 2.1+EDR
Wi-Fi 2.4GHz,IEEE 802.11b/g/n,supports hotspot and client mode
Radio 410MHz-470MHz
Cellular 4G
External power supply 2 pin port for Power Supply; 9-36V DC input with over-voltage protection
Physical Size 184*134*54mm
Weight 1.2kg
Shock and Drop 1.2m
Water/Dust proof IP68
Environmental Operation temperature -40℃-75℃
Storage temperature -40℃-85℃
Humidity 100%

Note: all information above is subject to change without any prior notice.
